Ring terminal stud size chart
How do we choose the correct terminal if our customers only provide us with a stub or metric info.?
This is a comprehensive guide on ring terminal stud sizes, see the expertly crafted chart, designed to provide us with all the information we need to make informed decisions about our electrical connections.
Whether we're working on a custom project or tackling a professional installation, understanding the nuances of ring terminal stud sizes is crucial. this chart breaks down everything from wire gauge compatibility to maximum amperage ratings, ensuring we have all the data necessary to select the right terminals for our specific needs.
With clear and concise labeling and easy-to-read formatting, this ring terminal stud size chart is an invaluable resource for optimizing electrical connections.

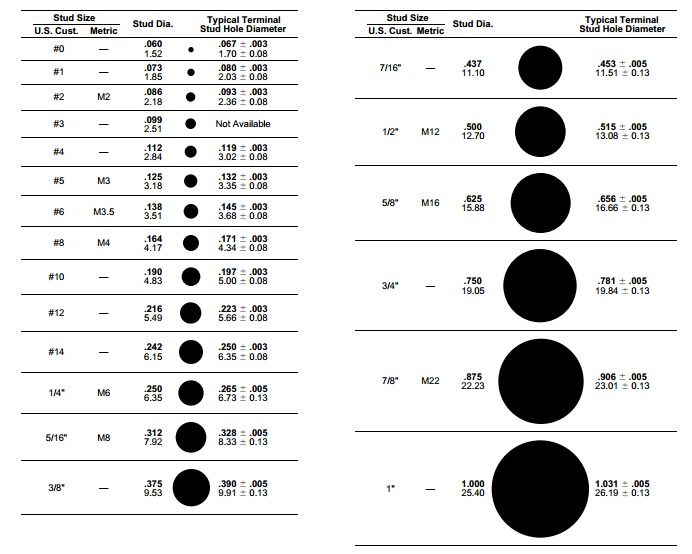

The chart shows the sizes and dimensions of various studs and the corresponding terminal stud hole sizes used with AMP devices.
- Use to Select Proper Size Terminal
- The chart shows the sizes and dimensions of various studs and the corresponding terminal stud hole sizes used with AliP devices
- For example, with slud f5 (.125 [3.18] Diameter), use the AMP device listed for #5 stud (.132 [3.35] Hole Diameter).
- Terminal stud hole sizes may easily be checked by fitting the sample terminal to a black circle.

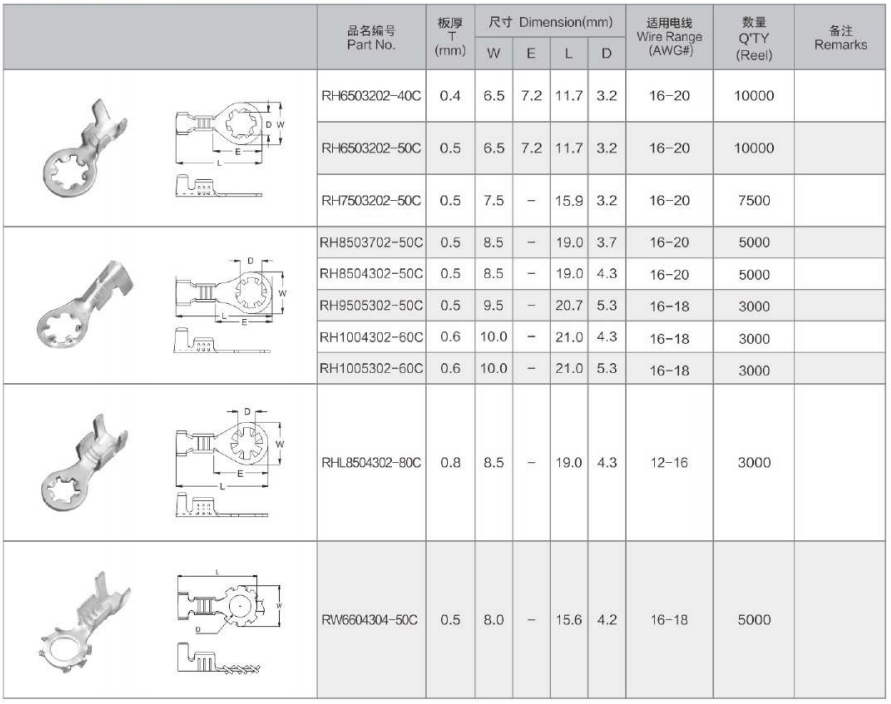

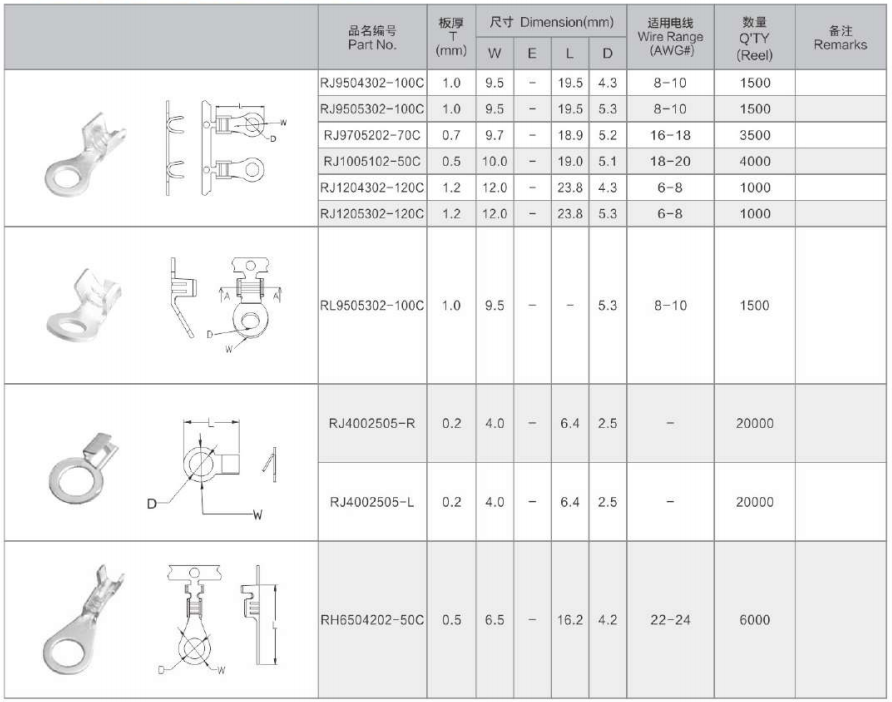

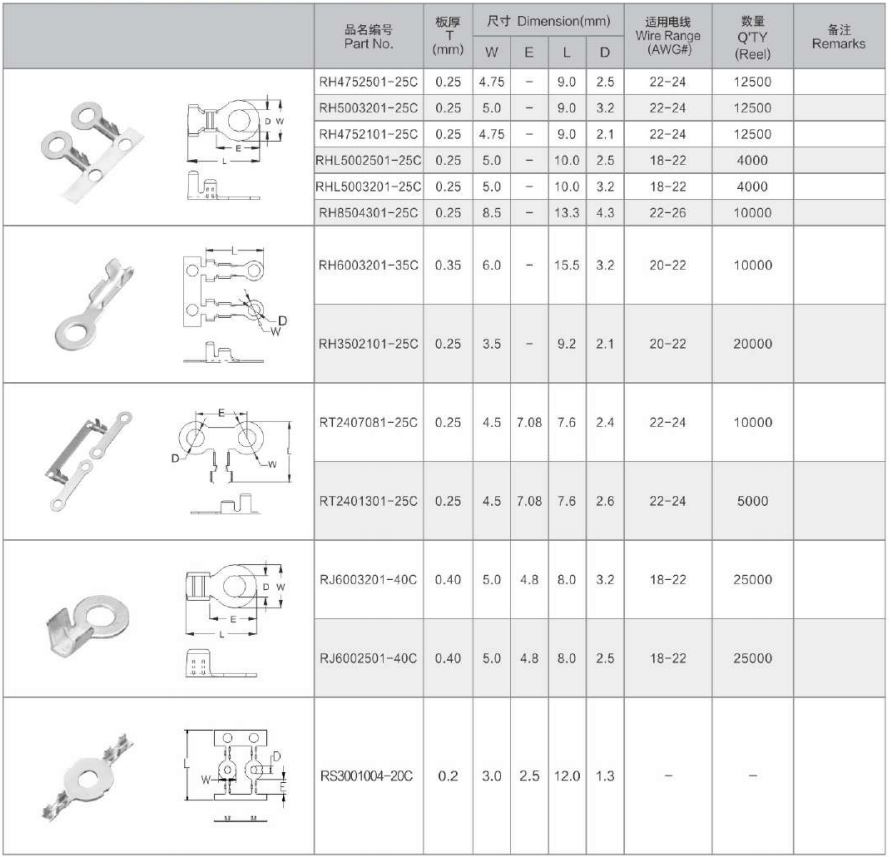

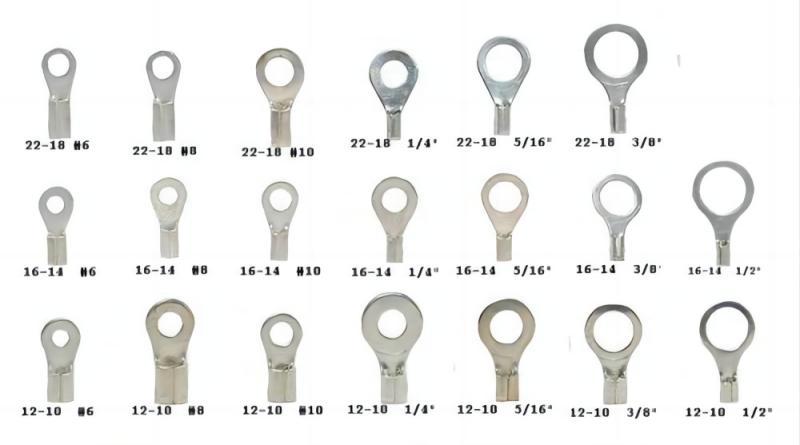

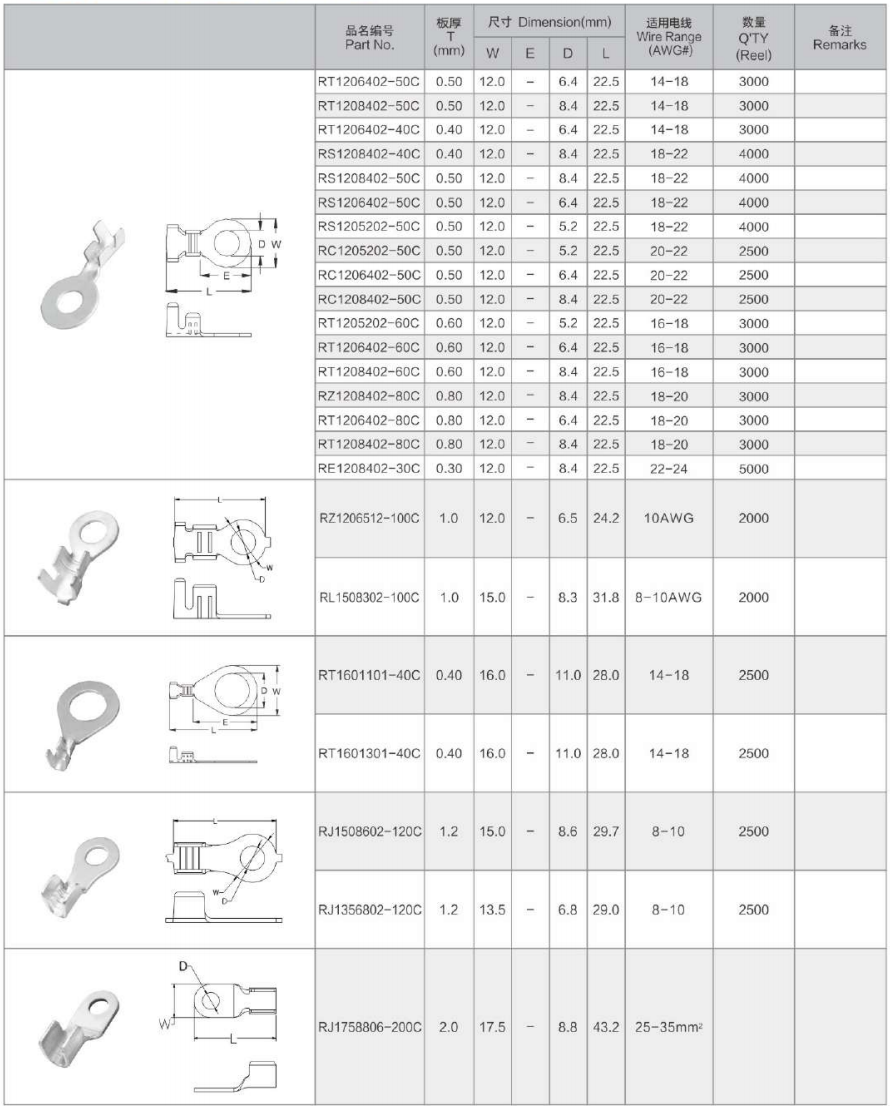

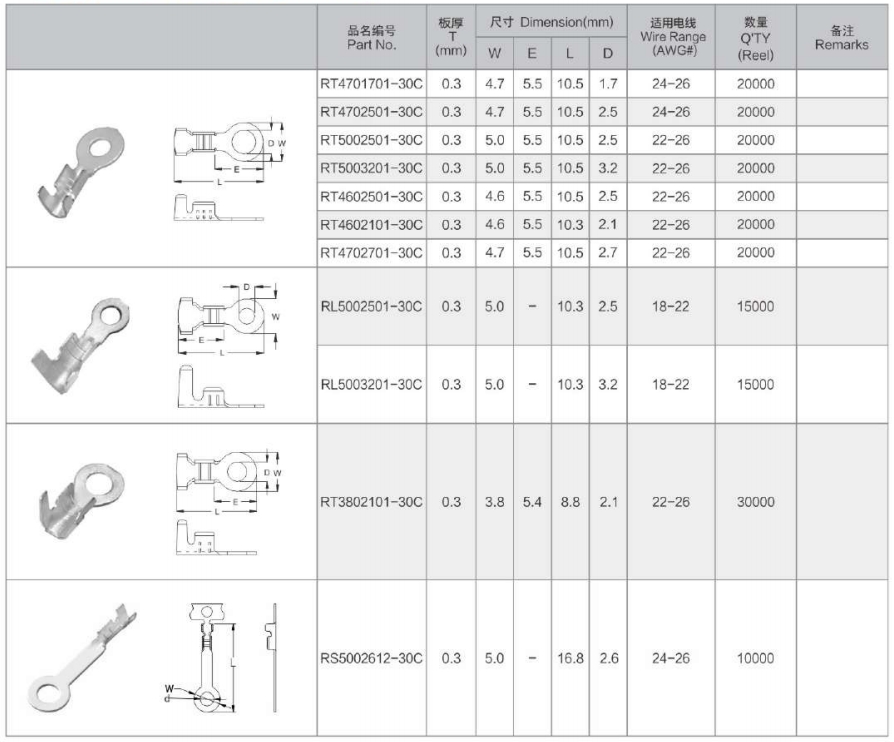

Below are parts of the ring terminal that we have
These ring terminals fit for 22AWG, 24AWG, and 26AWG wires
These ring terminals fit for 10AWG, 12AWG, 16AWG, 18AWG, 20AWG, 22AWG, 24AWG, and 26AWG wires
These ring terminals fit for 14AWG, 16AWG, 18AWG, 20AWG, and 22AWG wires
These ring terminals fit for 16AWG, 18AWG, 20AWG, 22AWG, and 24AWG wires
These ring terminals fit for 8AWG, 10AWG, 14AWG, 16AWG, 18AWG, 20AWG, 22AWG and 24AWG wires
Also, there is a terminal RJ1758806-200C that could fit 25-35mm² wires
These ring terminals fit for 12AWG, 14AWG, 16AWG, 18AWG, and 20AWG wires
These ring terminals fit for 18AWG, 20AWG, 22AWG, and 24AWG wires
These ring terminals fit for 6AWG, 8AWG, 10AWG, 16AWG, 18AWG and 20AWG wires
Contact us about what size of ring terminal you need, and we will send you exact specs, with its wire length, gauge, and color, we will provide a custom wiring assembly service to you.
Ring Terminal wire power cable Cases

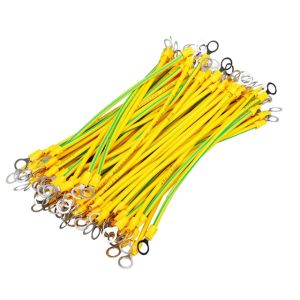

10mm ring terminal ground wire
18AWG power cable

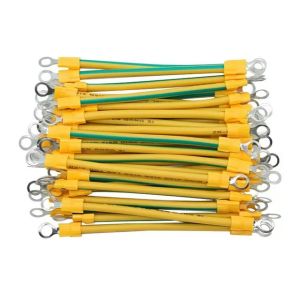

14AWG power cable

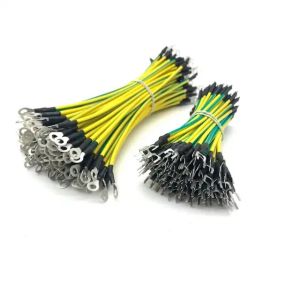

16AWG battery cable
Battery Earth Cable

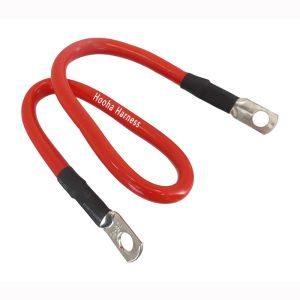

10mm battery cable

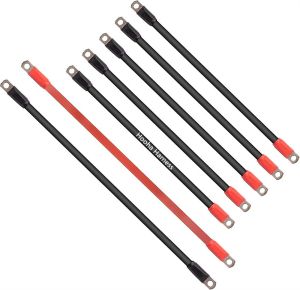

4 AWG battery cable
8-4 battery cable
10AWG cable M6 lug
How to customize your ring terminal cable?
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
