Material available: PVC;
Conductor material: Copper;
Length available: 1.8m;
Cable: 28AWGx1T/P+26AWGx2C, Double Shield;
Jacket Color: Black;
Connector: Nickel-plated shell;
Overmold: 45p PVC, Black;
Testing Contact Resistance: 5ohm max;
Insulation Resistance: 10Mega ohm;
HI-POT: 300V DC/10ms;
All materials with RoHS Standard;
Certificate available: ROHS, CE, etc.

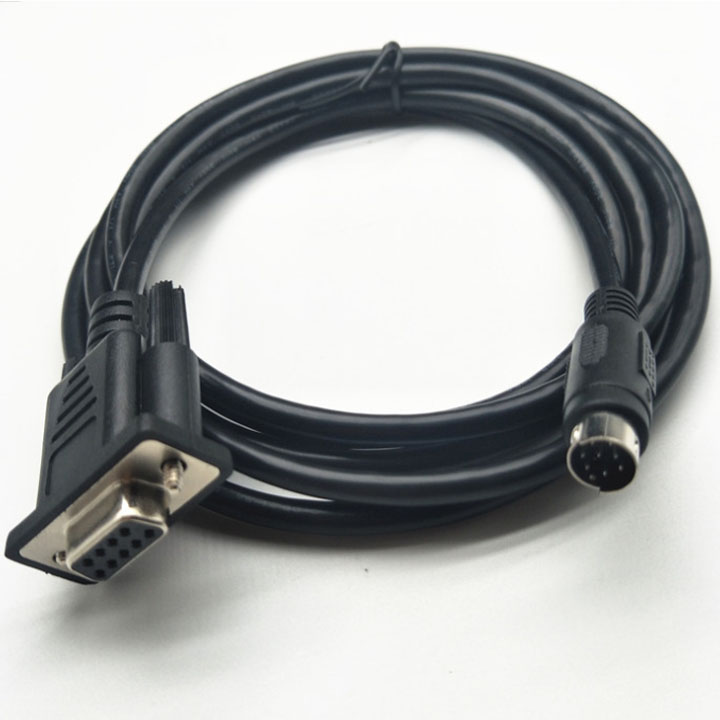

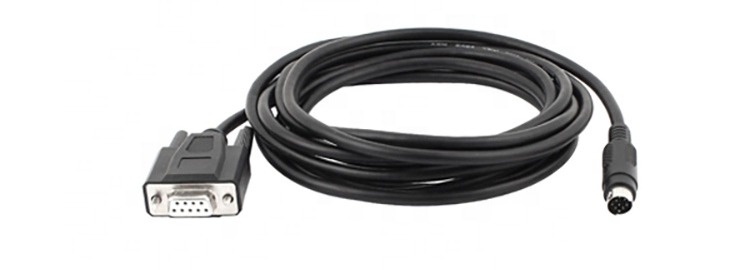

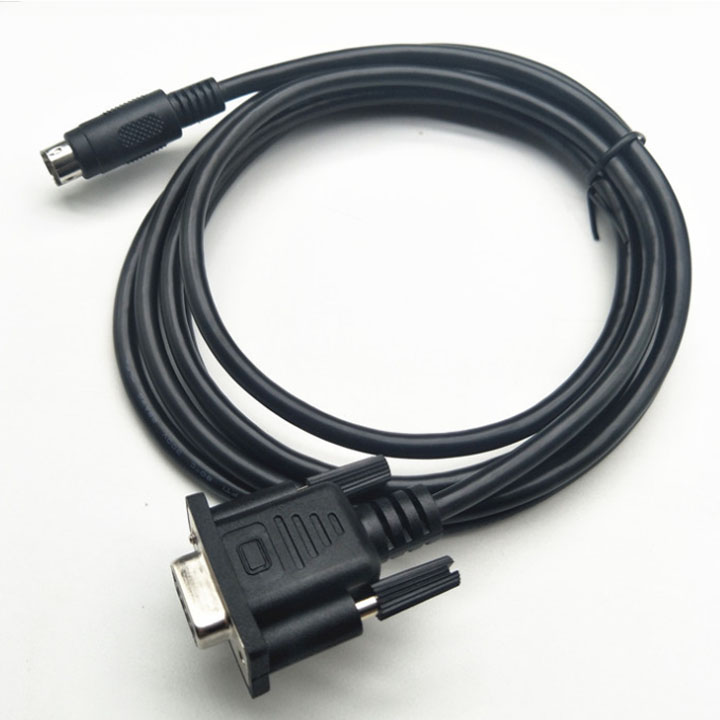

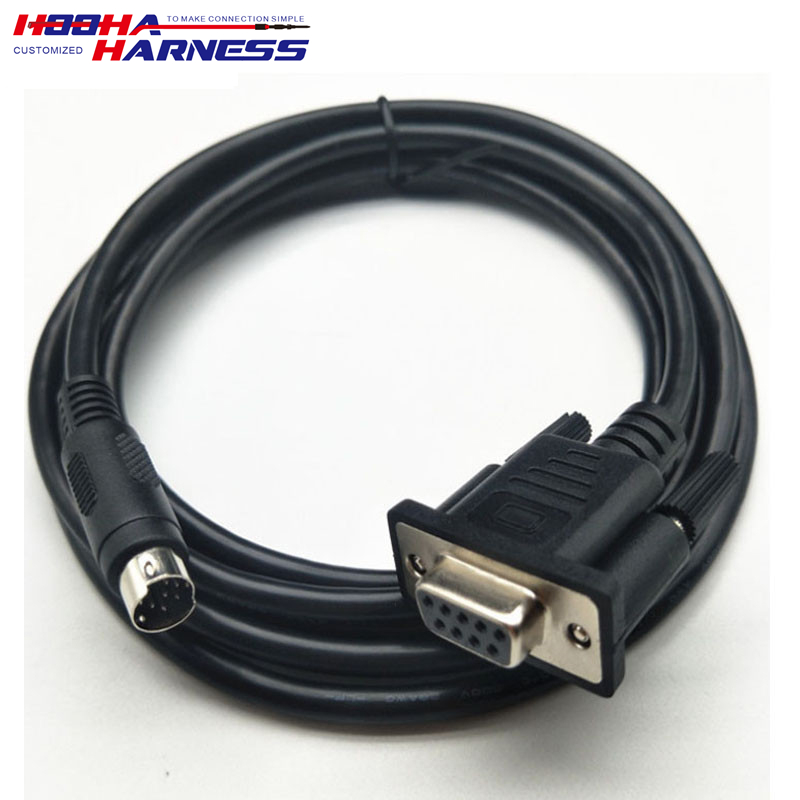

DB9 to mini-DIN cable
Material available: PVC;
Conductor material: Copper;
Length available: 1.8m;
Cable specifications: 28AWGx1T/P+26AWGx2C, Double Shielded for maximum protection against interference and signal loss;
Jacket Color: Black, providing a sleek and professional appearance while also being durable enough to withstand daily wear and tear;
Connector type: Nickel-plated shell, ensuring a secure and reliable connection every time;
Overmold material: 45p PVC in black color, adding an extra layer of protection to the cable's internal components while also enhancing its overall durability;
Testing Contact Resistance is guaranteed to be no more than 5ohms max, ensuring optimal conductivity between devices;
Insulation Resistance is rated at an impressive 10Mega ohms, providing excellent electrical insulation properties that help prevent signal degradation or interference;
HI-POT testing has been conducted with a rating of up to 300V DC/10ms, making this cable suitable for use in high-voltage applications where safety is paramount.
All materials used in the production of this cable meet RoHS standards for environmental friendliness and sustainability.
Certificates are available upon request including ROHS certification as well as CE compliance.
In summary, this high-quality copper conductor cable features double shielding technology along with superior insulation resistance properties that make it ideal for use in demanding environments where reliability is key. With its sleek black jacket color and nickel-plated connectors, it offers both style and substance - making it the perfect choice for professionals who demand nothing but the best!

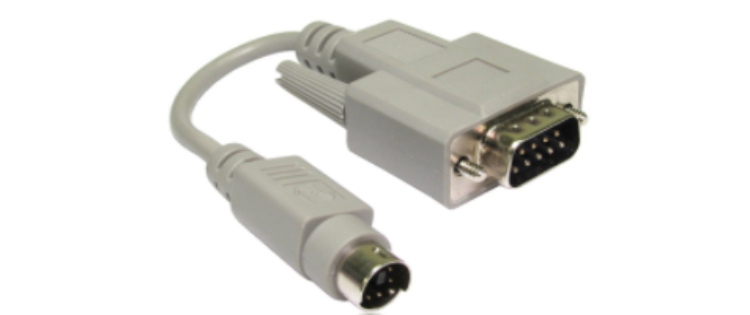

DB9 to mini-DIN cable gray color (15cm)
How to custom your own wire harness?
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
