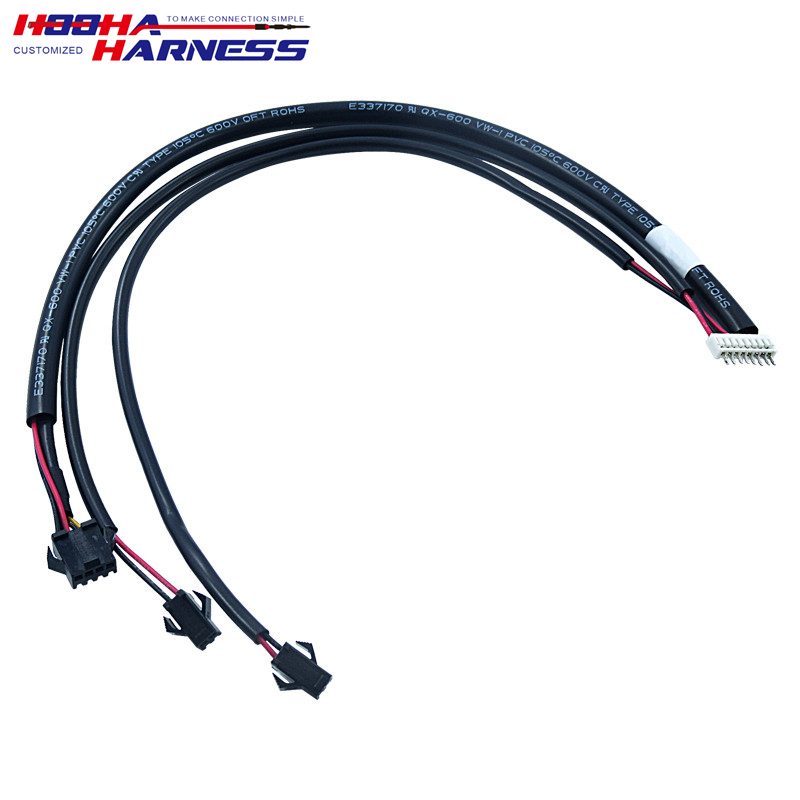

JST SM 2.5mm 2pin 4pin alternative parts SAN 2.0mm 8pin connector PVC tube wire to PCB board custom cable assembly
JST SM 2.5mm 2pin 4pin alternative parts SAN 2.0mm 8pin connector PVC tube wire to PCB board custom cable assembly JST SM 2.5mm 2pin 4pin alternative parts SAN 2.0mm 8pin connector PVC tube wire to PCB board custom cable assembly JST SM 2.5mm 2pin 4pin alternative parts SAN 2.0mm 8pin connector PVC tube wire to PCB board custom cable assembly JST SM 2.5mm 2pin 4pin alternative parts SAN 2.0mm 8pin connector PVC tube wire to PCB board custom cable assembly JST SM 2.5mm 2pin 4pin alternative parts SAN 2.0mm 8pin connector PVC tube wire to PCB board custom cable assembly

JST SM 2.5mm 2pin 4pin alternative parts SAN 2.0mm 8pin connector PVC tube wire to PCB board custom cable assembly

Product ID : HHDW1910200840
Product Attributes :

length: 12 inch

8pin: T: SAN2.0-T, H: SAN2.0-8Y

2pin: T: C2505F-TB, H: C2505HF-2P

4pin: T: C2505F-TB, H: C2505HF-4P

PVC tube: 2pcs Φ3, 1pc Φ6





Product Description



This is a customized cable harness assembly. On one side, there are JST SM 2.5mm 2pin and 4pin alternative parts, which provide options for different connection requirements. These connectors are commonly used in electronic devices and offer reliable connectivity. On the other side of the cable assembly is a SAN 2.0mm 8-pin connector. This type of connector is known for its compact size and high-density pin configuration, making it suitable for applications where space is limited but multiple connections are needed.

To ensure durability and protection, the entire cable assembly is wrapped with PVC tube insulation. This not only provides electrical insulation but also safeguards against external factors such as moisture or physical damage. The wires within this custom cable assembly are specifically designed to connect to a PCB (Printed Circuit Board) board type. The precise wiring ensures efficient signal transmission between components on the board, contributing to overall system performance.

Overall, this custom cable assembly offers versatility in terms of connector options while providing secure connections through its robust design and appropriate wire-to-PCB compatibility. It serves as an essential component in various electronic devices or systems that require reliable interconnections for seamless operation.



Specifications:

Products name: JST SM 2.5mm 2pin 4pin alternative parts SAN 2.0mm 8pin connector PVC tube wire to PCB board custom cable assembly
Classification wire to board
Application: sports   equipment
Wire/cable style: UL2464
Wire/cable gauge 24AWG
Wire rated voltage: 300V
Wire-rated temperature: 80℃
Wire/cable materials: PVC
Wire/cable length: 305mm
Wire color: any
PVC  tube: φ3*2pcs, φ*1pc
Mold tools: ---
Connector type: equivalent
Connector materials: PA66
Warranty; 3-Years
Testing way: continuity test
Carton size: 45*30*25cm
Packing way: customize
RoHS  compliant: Yes
UL certificate Yes
TS16949 certificate: Yes
ISO9001 certificate: Yes
Sample Fee: free  (1-3pcs, value under 5.00USD)
Sample lead time: within 7 days
Bulk lead time: 15~25 days
Supply capacity: 3000pcs per day
MOQ: 500pcs
OEM  service: Yes
Trade  term: EXW, FOB Shenzhen, EXPRESS
Payment    term: TT (50 % deposit, 50% balance), Credit card, Escrow.
Shipping way: Door to Door (UPS/DHL/FedEx/TNT/EMS), By air, By ship.
Port: Shenzhen, Guangzhou



Details:

custom cable assembly



JST original SM series Connector Specifications:

Current rating: 3 A AC/DC max.

Voltage rating: 250 V AC/DC max.

Temperature range: -25'C to +85'C (including temperature rise in applying electrical current).

Contact resistance: Initial value/ 10 mΩ max. After environmental tests/ 20 mΩ max.

Insulation resistance: 500 M min.

Withstanding voltage: 1,500 VAC/minute.

Applicable wire: AWG #28 to #22 (0.08 to 0.33 mm²).

Applicable panel thickness: 0.5 to 2.0 mm.

JST SM housing

JST SM terminal



JST original SAN connector Specifications:

Current rating: 2 A AC/DC (AWG #24)

Voltage rating: 250 V AC/DC

Temperature range: -25'C to +85°C (including temperature rise in applying electrical current)

insulation resistance: 1,000 MΩ min.

Withstanding voltage: 800 VAC/minute

Applicable wire: AWG #30 to #24

Applicable PC board thickness: Type A contact: 1.2 mm, 1.6 mm; Type B contact: 1.6 mm

JST SAN connector

JST SAN terminal



Related products:

custom cable assembly



How to custom your own wire harness?

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if need(7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
