D-Sub 37 Pin Male to Male Cable

Introduction

The DB37 cable is a versatile and reliable solution for connecting devices that require a D-sub type 37-pin male or female connector. With its various options, including male-to-male, male-to-female, and female-to-female configurations, it offers flexibility in meeting different connectivity needs.

The connectors of the DB37 cable are available in both molding and metal shell designs, providing durability and protection against external factors such as dust or accidental damage. The molding option ensures a secure connection while the metal shell option adds a layer of robustness.

Regarding aesthetics, the cable comes in three color options: black, grey, and white. This allows users to choose the color that best suits their setup or preference.

When it comes to length requirements, the DB37 cable offers multiple choices ranging from 2.5ft up to 50ft. Additionally, custom lengths can be customized based on specific project needs.

To ensure optimal performance and signal integrity, the gauge of the cables can be customized according to individual requirements. Options include 24AWG (American Wire Gauge), 26AWG, and 28AWG wires. These different wire gauges allow for efficient data transmission over varying distances without compromising quality.

Whether you need a short-length DB37 cable for close-range connections or a longer one for extended-reach applications, this versatile cable provides reliable connectivity solutions across various industries such as telecommunications equipment manufacturing or industrial automation systems integration. Its customizable features make it suitable for diverse projects where precise specifications are crucial.

Features

• 360 degree fully shielded for protection against EMI/RFI
• DB37 male to female connectors; lengths range from 1.0 ft to 25 ft; color is gray
• Wired straight through for extending serial devices/peripherals
• Gold-plated contacts provide reliable connections with repeated mating cycles
• Hex nuts on female connectors are removable to expose 4-40 machine screws

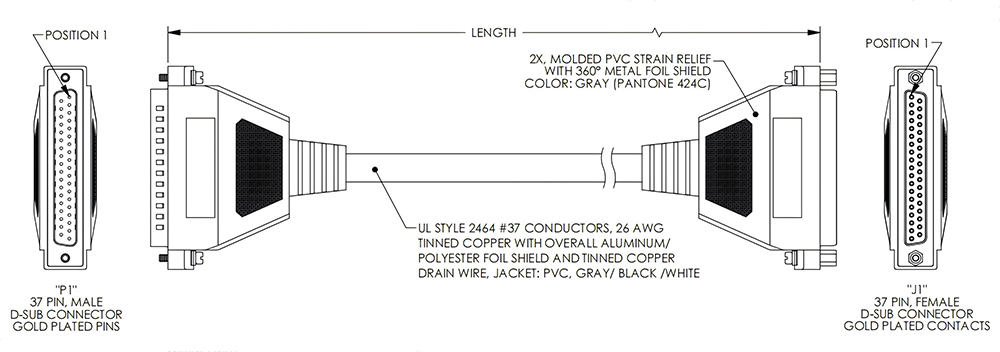

Drawing

Wiring Diagram

Multiple Choices

Applications

1. Data Communication

• Serial Communications (RS-232, RS-422, RS-485): D-sub 37-pin connectors are often used in serial communication protocols, primarily RS-422 and RS-485. These are used in industrial automation, control systems, and network equipment.
• Telecommunication Equipment: Used to connect network switches, routers, and other telecommunication systems.

2. Computers and Peripherals

• Parallel Ports: Older computers used D-sub connectors (though typically 25-pin) for connecting printers or other peripheral devices. The 37-pin version allows for more signals or control features.
• CNC Machines: In industrial machines like CNC routers or milling machines, D-sub 37-pin cables are used to transfer data between computer interfaces and the machine.

3. Industrial Automation and Control

• PLC (Programmable Logic Controller) I/O: Used to connect I/O modules to various sensors, actuators, and control devices in factory automation systems.
• Measurement and Control Systems: In laboratory environments, these connectors are used for test equipment or data acquisition systems (DAQ), offering multiple input/output options.

4. Aerospace and Military

• Avionics Systems: D-sub connectors, including the 37-pin variant, are frequently used in aircraft electronics for communication and control signal transmission.
• Defense Applications: These connectors are used in ruggedized equipment for military communication and other mission-critical electronics.

5. Medical Devices

• Medical Equipment: D-sub 37-pin connectors are used in diagnostic equipment, patient monitoring systems, and other medical instruments that require multiple connections in a compact space.

6. Audio and Video Applications

• Broadcast Equipment: In audio and video studios, these connectors are used to link control equipment and signal processing systems.
• Analog/Digital Signal Transmission: Used for multi-channel audio or video data transfer between devices.

How to customize your wire harness?

Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
