Dupont connector 2.54mm pitch custom wire harness
Dupont connector 2.54mm pitch custom wire harness Dupont connector 2.54mm pitch custom wire harness Dupont connector 2.54mm pitch custom wire harness Dupont connector 2.54mm pitch custom wire harness Dupont connector 2.54mm pitch custom wire harness

Dupont connector 2.54mm pitch custom wire harness

Product ID : 14071701
Product Attributes :

Hooha Harness offers a complete Dupont 2.54mm pitch connector wire-to-wire package, including the male housing, female/receptacle housing, female terminal, and male terminal. These components are manufactured with precision fitting and durability to ensure accurate mating.

Product Description

Dupont 2.54mm Pitch Wire-to-Wire Connector



Hooha Harness offers a complete Dupont 2.54mm pitch connector wire-to-wire package, including the male housing, female/receptacle housing, female terminal, and male terminal. These components are manufactured with precision fitting and durability to ensure accurate mating.

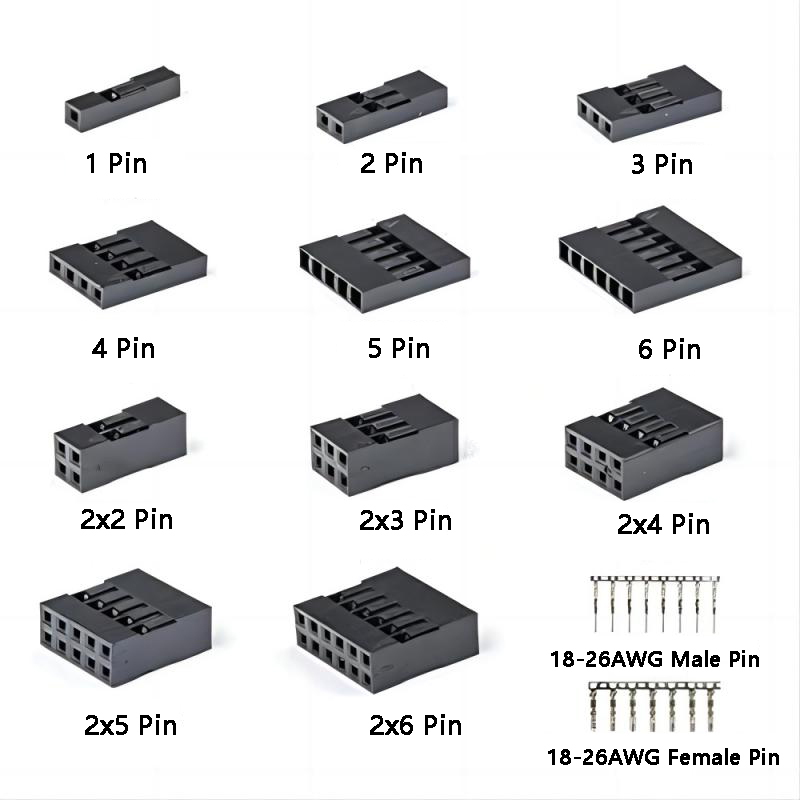

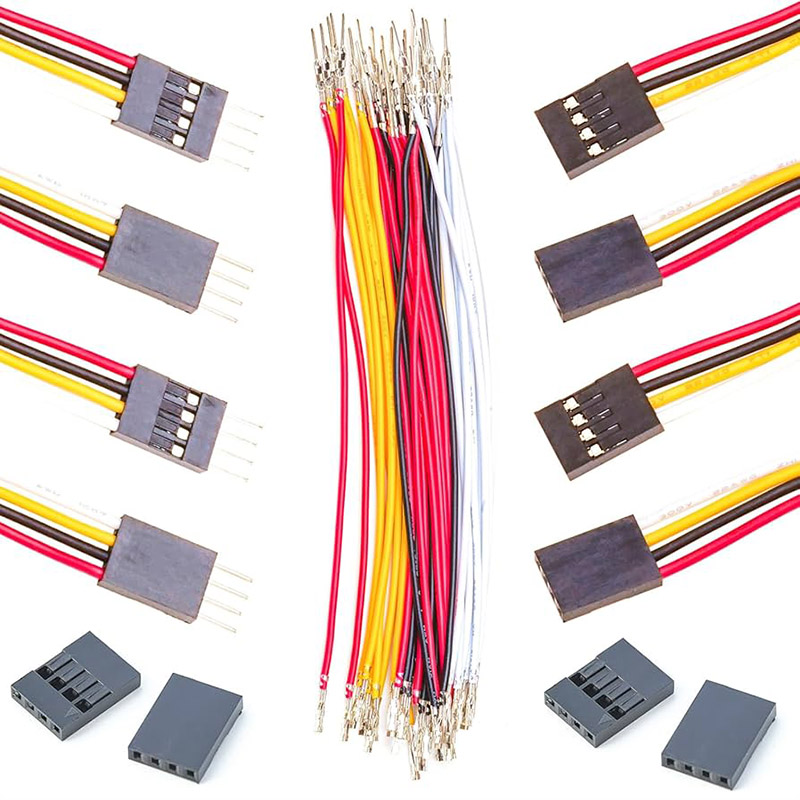

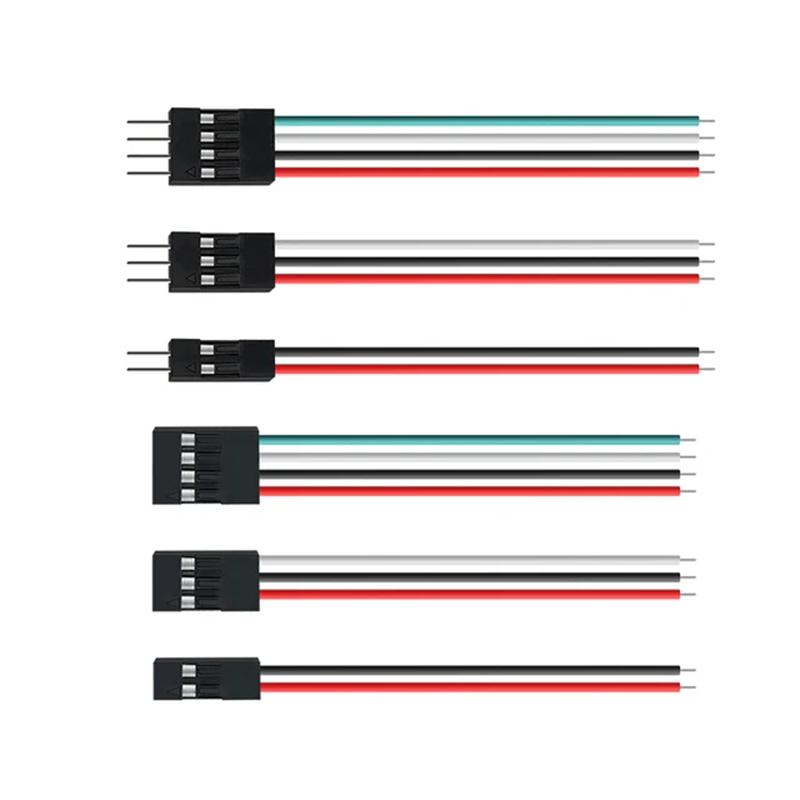

DuPont 2.54 connectors





Features



Well-Designed Crimping Feature

Hooha Harness features a crimp-style lock and a design that prevents inverted insertion, ensuring optimal functionality. It is meticulously engineered to maintain an air-tight seal, effectively safeguarding the metals from oxygen and moisture exposure, thereby preventing corrosion. Consequently, the connector can be effortlessly detached from the head without requiring wire retention.

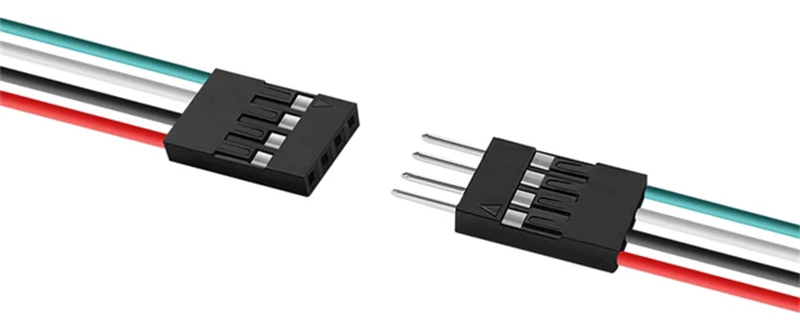

dupont connector 4 pin



Flexible Terminal Strip and Board Stackers

The Dupont 2.54 connector features a flexible terminal strip and board stackers for easy stacking.



Available With Shroud or Without Shroud

It is available with a shrouded or unshrouded header and can be configured for through-hole, SMT, mixed technology, or press fit.



Safe and Fully-Sealed Electrical Interfaces

The electrical interfaces are completely sealed with a covered connector for applications that have a lot of moisture. The cover helps meet the requirements for low smoke, toxicity, and flammability in almost all industries.



Equipped with Reduced Mating Force (RMF) Solutions

The various wire-to-wire connector types are equipped with RMF solutions to reduce friction between the device contacts and the socket, facilitating easier insertion and removal of the device. Simultaneously, this eliminates the need for complex mechanisms like those found in ZIF sockets.

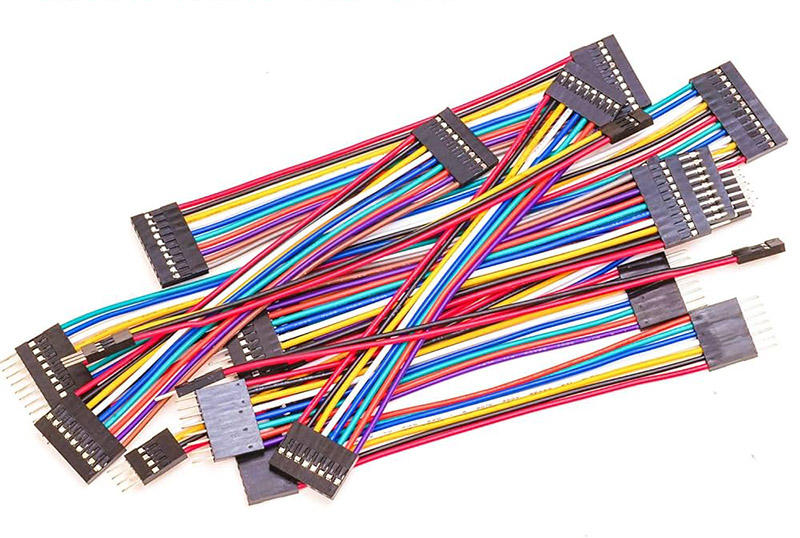

dupont wire





Wire Harness Assembly types:

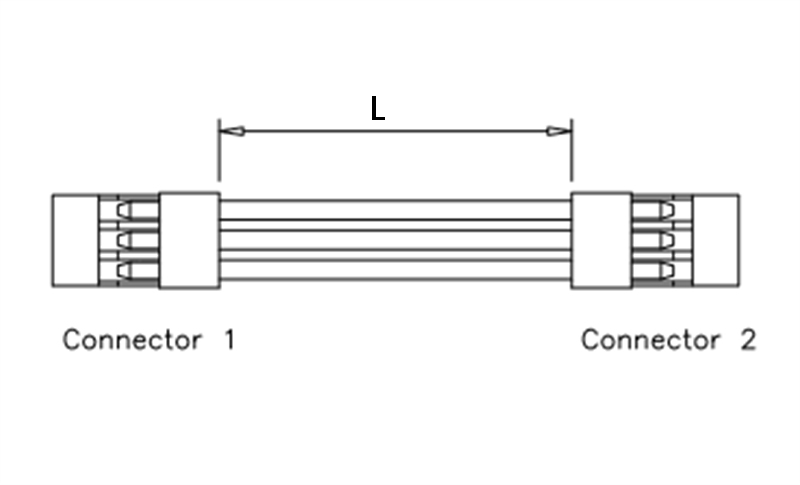

DuPont 2.54 connector wire harnesses the same direction

dupont connector wire same direction

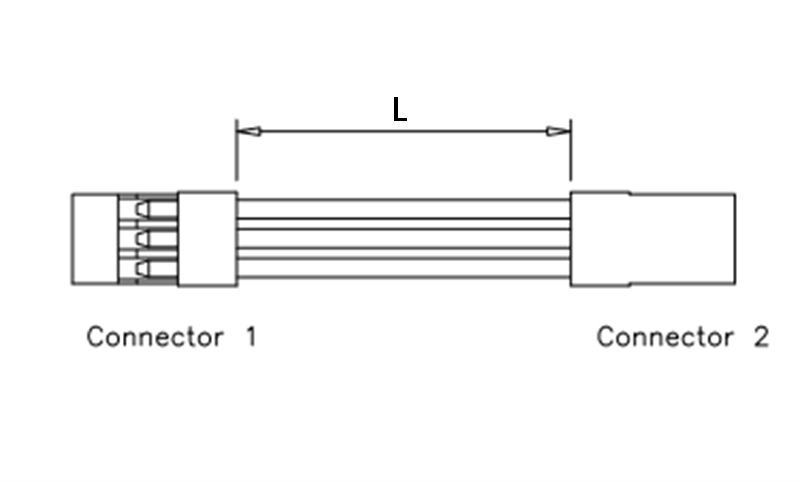

DuPont 2.54 connector wire harnesses the opposite direction

DuPont 2.54 connector wire harness the opposite direction

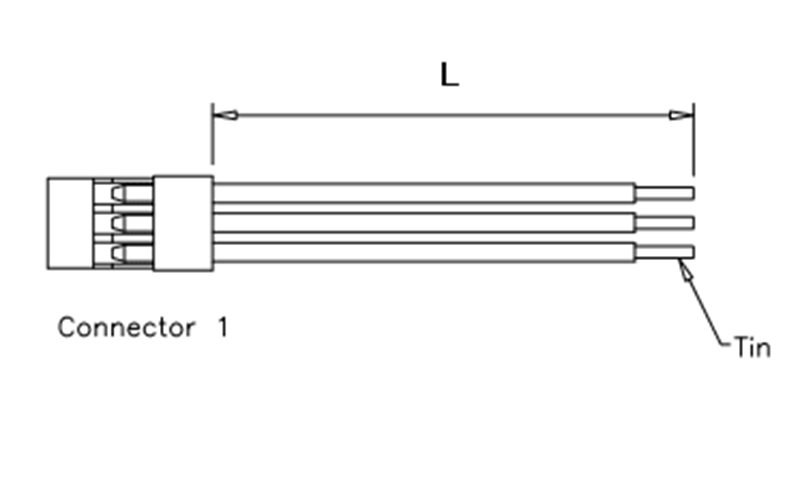

DuPont 2.54 connector wire harness tinned end

DuPont 2.54 connector wire harness tinned end

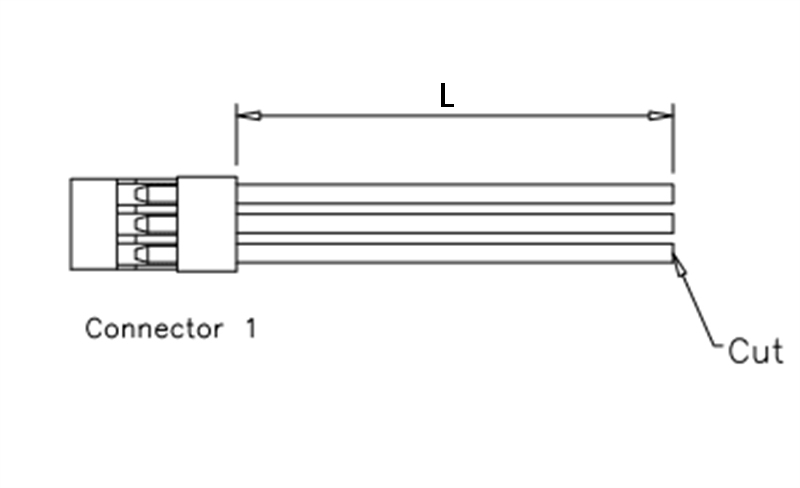

DuPont 2.54 connector wire harness open-end

DuPont 2.54 connector wire harness open end

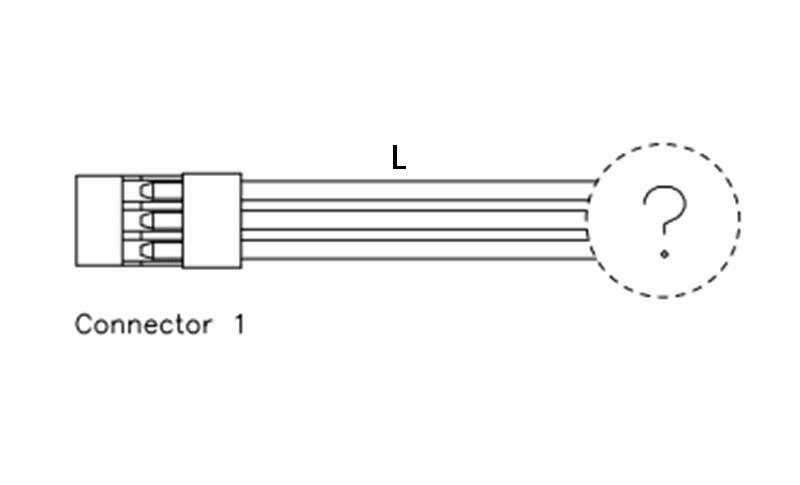

DuPont 2.54 connector wire harness add any fitting connectors

DuPont 2.54 connector wire harness add any fit connectors

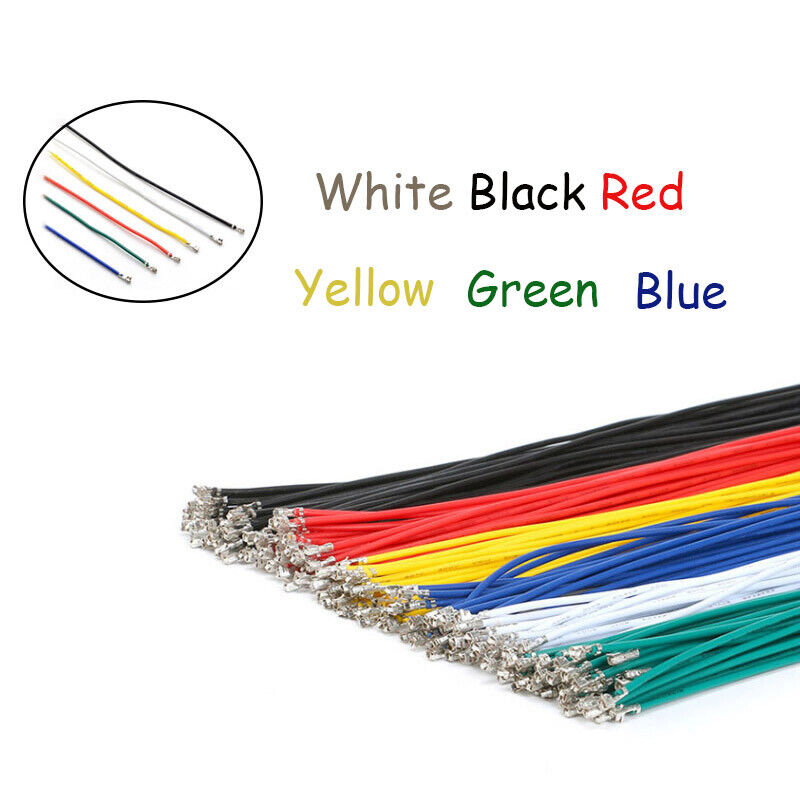

Note: We offer custom wire lengths to meet your specific requirements, and our wire colors include black, red, green, blue, brown, grey, orange, yellow, and purple. Additionally, we can provide dual-color jackets upon request.





Application



  • Rechargeable battery packs
  • Battery balancers
  • Battery eliminator circuits
  • Radio controlled servos.
  • RGB LED decorative light strips
  • Seat wiring and actuation
  • Passenger service units
  • IFE (in-flight entertainment)
  • Electronic window shutters
  • Gallery





DuPont Connector Wiring Harness Cases

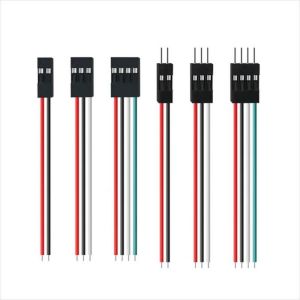

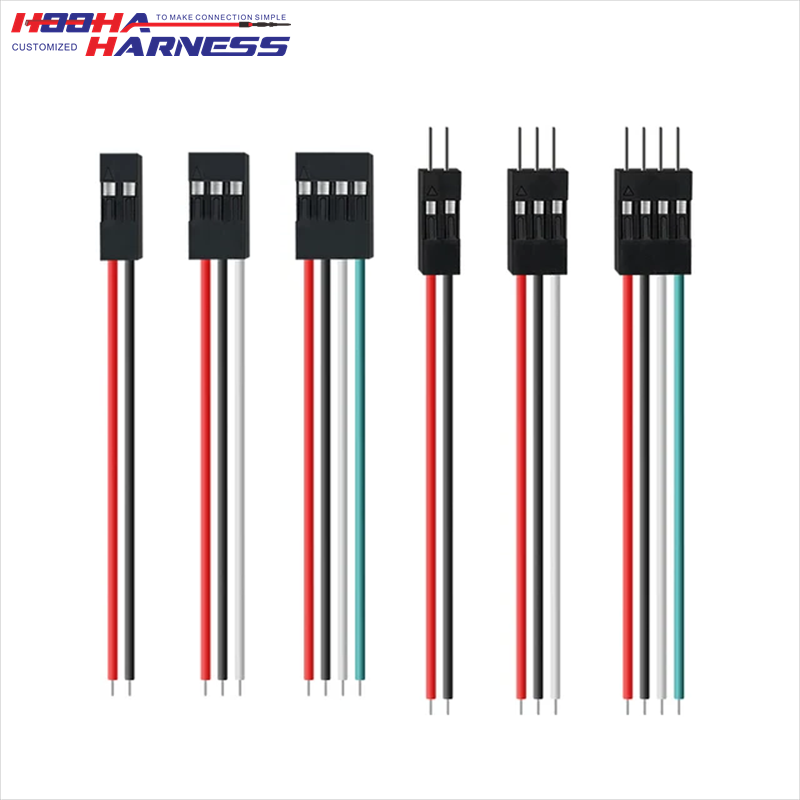

2.54 mm dupont

2.54 mm Dupont

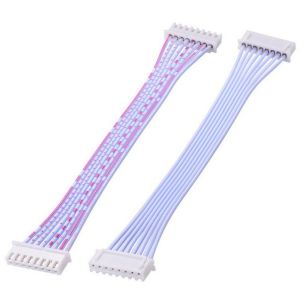

dupont 1.25mm pitch 8pin connector flat cable horn wire harness

DuPont 1.25mm pitch 8pin connector flat cable horn wire harness

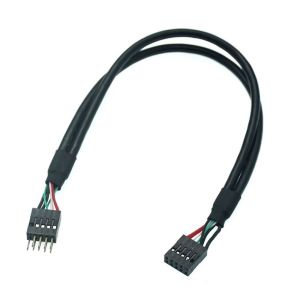

Motherboard Mainboard 10 Pin Dupont 2.54mm Connector 9 Wires Extension Data Cable

Motherboard 10 Pin Dupont 2.54mm Connector 9 Wires Extension Cable

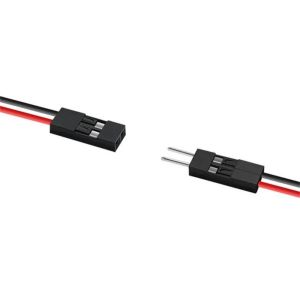

dupont 2.54 2P

DuPont 2.54 2Pin Male and Female Wiring

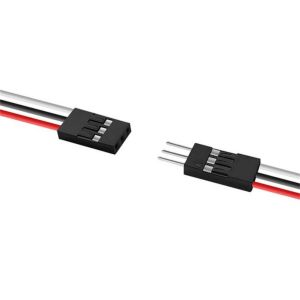

dupont 2.54 3P

DuPont 2.54 3Pin Male and Female Wiring

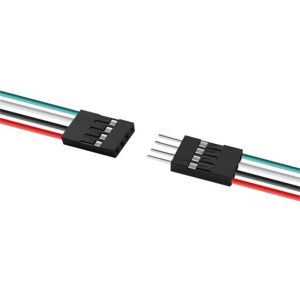

dupont 2.54 4P

DuPont 2.54 4Pin Male and Female Wiring

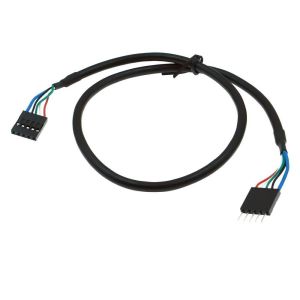

DuPont 2.54 5-pin Male-to-Female Computer wire

DuPont 2.54 5-pin Male-to-Female Computer wire

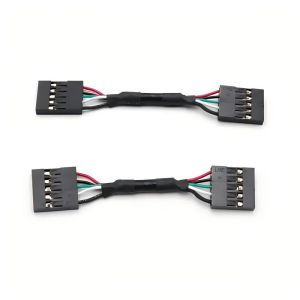

DuPont 2.54 5-pin Male-to-Male Jumper wire

DuPont 2.54 5-pin Male-to-Male Jumper wire





DuPont 2.54mm 4 Pin Connector Cable

DuPont 2.54mm 4 Pin Connector Cable

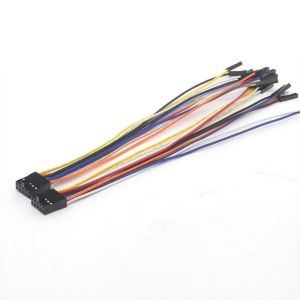

dupont 2.54 10P wire

DuPont 2.54 10P wire

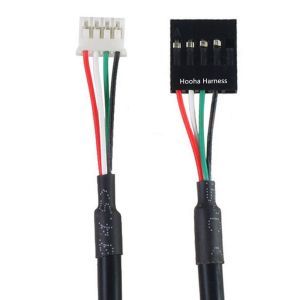

dupont 2.54 female to PH 4P Cable

DuPont 2.54 female to PH 4P Cable

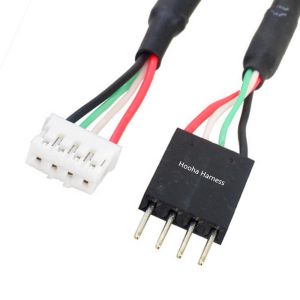

dupont 2.54 male to PH 4P Cable

DuPont 2.54 male to PH 4P Cable

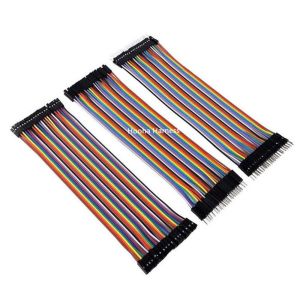

Dupont 2.54 40p flat cable

Dupont 2.54 40p flat cable

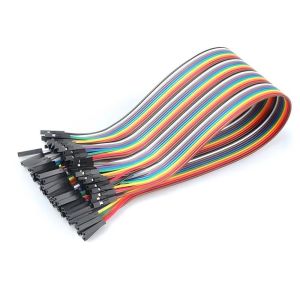

DuPont 2.54mm 20-Pin Connector Cable

DuPont 2.54mm 20-Pin Connector Cable

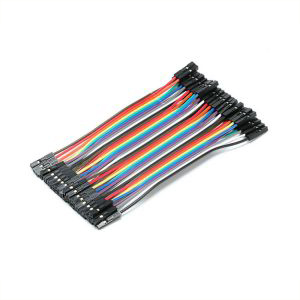

DuPont 2.54mm 40-Pin Connector Cable

DuPont 2.54mm 40-Pin Connector Cable



How to customize your wire harness?



Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
