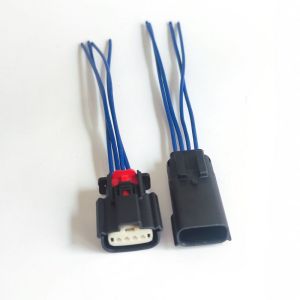

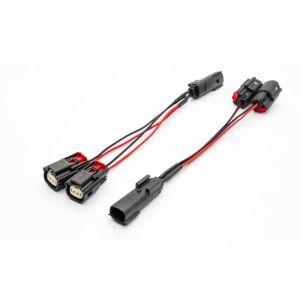

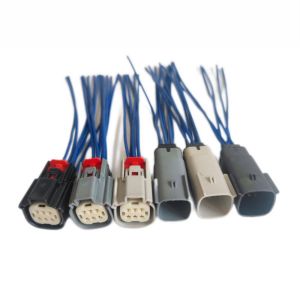

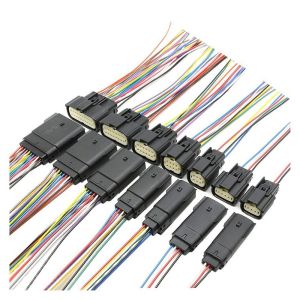

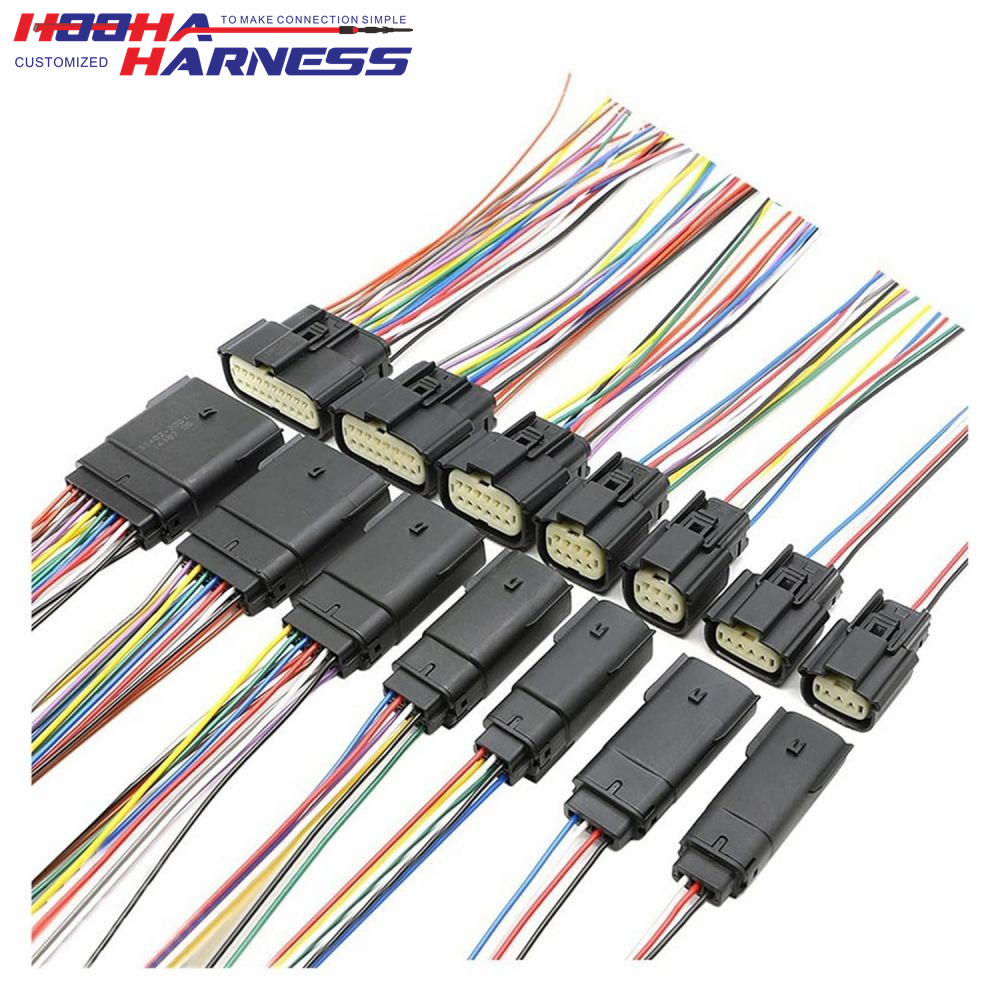

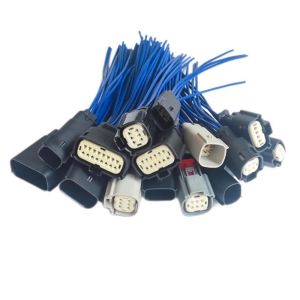

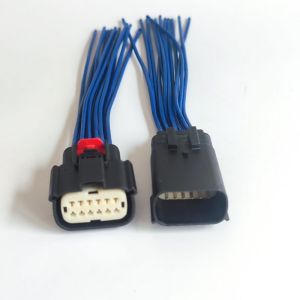

Molex MX150 Connector, Custom Wire Harness Assembly
- Operating Temperature Range: -40° to 125°C
-
Wire Range: 2.00 to 0.50 mm² (14 AWG to 22 AWG)
- Voltage: 250V
- Current: 22.0A
- Contact Resistance: 10 milliohms max.
- Dielectric Withstanding Voltage: 500V DC
- Insulation Resistance: 20 Megohms min.
- Contact: Copper Alloy
- Plating: Tin, Silver or Gold
- Insulation Diameter: 2.70 to 1.20mm (.106 to .047”)
Molex MX150 Connectors Introduction
The pre-assembled, submersible MX150 is a high-performance connector system for challenging, rugged, harsh applications.
The innovative MX150 Sealed Connector System is based upon the 1.50mm (.060”) ISO blade-type terminal system, available with pre-tin, selective Gold, and pure Silver contact finishes. It is designed to meet the need for a rugged, environmentally sealed connector system supporting low-level signal and power applications up to 22.0A. Designed for on-engine automotive to off-road construction equipment applications, the MX150 Sealed Connector
The system's reduced package size is ideal for typical SAE-style wire.
The MX150 family consists of 2 types of connection systems: matte-sealed and cable-sealed designs. The
matte-sealed design eliminates the need to purchase, handle, and crimp individual wire seals to lower applied costs. It incorporates a single silicone-based seal with individual wire openings allowing for a tighter overall pitch and smaller package size.
The cable-sealed design incorporates individual wire seals crimped to each terminal, allowing for superior sealing performance in applications with 'aggressive' wire routings.
Both cost-effective connector designs feature all-in-one plug and receptacle housings with pre-assembled, wire and interfacial connector seals. Integral terminal position assurance (TPA) and optional connector position assurance (CPA) components eliminate time-consuming and costly assembly operations. Completing the application is as simple as crimping the appropriate terminal, inserting the crimped terminal lead and seating the TPA to its final lock position. No additional components are required.

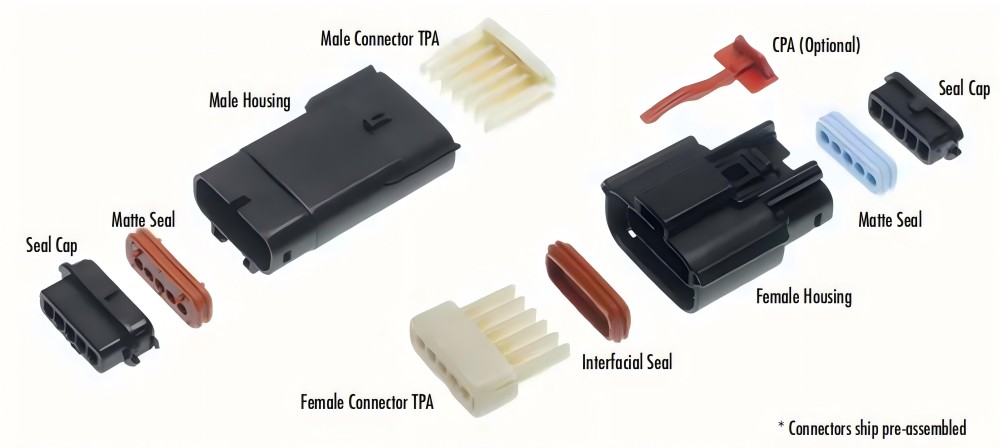

Exploded View of Connector System
MX150 Series Connector Part Number Lists
| Series | Molex Part Number | Number of Position | Pitch | Gender | Color |
| 34986 | 34986-1602 | 16 | 3.5 mm | Plug (Male) | Gray |
| 34986 | 34986-1959 | 16 | 3.5 mm | Plug (Male) | Gray |
| 34986 | 34986-1601 | 16 | 3.5 mm | Plug (Male) | Black |
| 34986 | 34986-1605 | 16 | 3.5 mm | Plug (Male) | Yellow |
| 34985 | 34985-1601 | 16 | 3.5 mm | Receptacle (Female) | Black |
| 34985 | 34985-1602 | 16 | 3.5 mm | Receptacle (Female) | |
| 34985 | 34985-1606 | 16 | 3.5 mm | Receptacle (Female) | Black |
| 34985 | 34985-1607 | 16 | 3.5 mm | Receptacle (Female) | |
| 34985 | 34985-1841 | 16 | 3.5 mm | Receptacle (Female) | Black |
| 34797 | 34797-0201 | 2 | 3.5 mm | Plug (Male) | Black |
| 34797 | 34797-0401 | 4 | 3.5 mm | Plug (Male) | Black |
| 34796 | 34796-0201 | 2 | 3.5 mm | Receptacle (Female) | Black |
| 34796 | 34796-0402 | 4 | 3.5 mm | Receptacle (Female) | Natural |
| 34752 | 34752-0204 | 2 | 1.5 mm | Receptacle (Female) | Black |
| 34675 | 34675-0003 | 2 | 5 mm | Plug (Male) | Black |
| 34675 | 34675-0004 | 2 | 5 mm | Plug (Male) | Gray |
| 34675 | 34675-0002 | 2 | 5 mm | Plug (Male) | Gray |
| 34675 | 34675-0001 | 2 | 5 mm | Plug (Male) | Black |
| 34062 | 34062-0023 | 2 | 5 mm | Receptacle (Female) | Black |
| 34062 | 34062-0026 | 2 | 5 mm | Receptacle (Female) | Black |
| 34062 | 34062-0028 | 2 | 5 mm | Receptacle (Female) | Black |
| 34062 | 34062-4003 | 2 | 5 mm | Receptacle (Female) | Black |
| 34062 | 34062-4009 | 2 | 5 mm | Receptacle (Female) | Black |
| 34062 | 34062-0025 | 2 | 5 mm | Receptacle (Female) | Black |
| 34062 | 34062-0027 | 2 | 5 mm | Receptacle (Female) | Black |
| 34062 | 34062-4008 | 2 | 5 mm | Receptacle (Female) | Black |
| 34062 | 34062-0038 | 2 | 5 mm | Receptacle (Female) | Black |
| 34062 | 34062-0050 | 2 | 5 mm | Socket (Female) | |
| 34062 | 34062-0051 | 2 | 5 mm | Socket (Female) | Black |
| 34062 | 34062-0052 | 2 | 5 mm | Socket (Female) | |
| 34062 | 34062-0036 | 2 | 5 mm | Receptacle (Female) | Black |
| 34062 | 34062-0024 | 2 | 5 mm | Receptacle (Female) | Black |
| 34062 | 34062-0032 | 2 | 5 mm | Receptacle (Female) | Black |
| 34062 | 34062-0033 | 2 | 5 mm | Receptacle (Female) | Black |
| 34062 | 34062-0053 | 2 | 5 mm | Socket (Female) | Black |
| 34062 | 34062-0054 | 2 | 5 mm | Socket (Female) | |
| 34062 | 34062-0055 | 2 | 5 mm | Socket (Female) | Black |
| 34062 | 34062-4006 | 5 mm | Socket (Female) | Black | |
| 34062 | 34062-0021 | 2 | 5 mm | Receptacle (Female) | Black |
| 34062 | 34062-0022 | 2 | 5 mm | Receptacle (Female) | Gray |
| 34062 | 34062-0049 | 2 | 5 mm | Socket (Female) | Black |
| 33482 | 33482-2102 | 20 | 3.5 mm | Plug (Male) | Gray |
| 33482 | 33482-8602 | 16 | 3.5 mm | Plug (Male) | Gray |
| 33482 | 33482-6206 | 12 | Pin (Male) | Black | |
| 33482 | 33482-3628 | 6 | 3.5 mm | Plug (Male) | Gray |
| 33482 | 33482-4801 | 8 | 3.5 mm | Plug (Male) | Black |
| 33482 | 33482-2101 | 20 | 3.5 mm | Plug (Male) | Black |
| 33482 | 33482-3601 | 6 | 3.5 mm | Plug (Male) | Black |
| 33482 | 33482-4001 | 4 | 3.5 mm | Plug (Male) | Black |
| 33482 | 33482-6261 | 12 | 3.5 mm | Plug (Male) | Gray |
| 33482 | 33482-8601 | 16 | 3.5 mm | Plug (Male) | Black |
| 33482 | 33482-8726 | 16 | 3.5 mm | Plug (Male) | Gray |
| 33482 | 33482-4853 | 8 | 3.5 mm | Plug (Male) | Gray |
| 33482 | 33482-4103 | 4 | 3.5 mm | Plug (Male) | Gray |
| 33482 | 33482-6202 | 12 | 3.5 mm | Plug (Male) | Gray |
| 33482 | 33482-3602 | 6 | 3.5 mm | Plug (Male) | Gray |
| 33482 | 33482-4104 | 4 | 3.5 mm | Plug (Male) | Gray |
| 33482 | 33482-4802 | 8 | 3.5 mm | Plug (Male) | Gray |
| 33482 | 33482-6201 | 12 | 3.5 mm | Plug (Male) | Black |
| 33482 | 33482-4827 | 8 | Pin (Male) | Black | |
| 33481 | 33481-3301 | 3 | 3.5 mm | Plug (Male) | Black |
| 33481 | 33481-4401 | 4 | 3.5 mm | Plug (Male) | Black |
| 33481 | 33481-2201 | 2 | 3.5 mm | Plug (Male) | Black |
| 33481 | 33481-0301 | 3 | 3.5 mm | Plug (Male) | Black |
| 33481 | 33481-0302 | 3 | 3.5 mm | Plug (Male) | Gray |
| 33481 | 33481-0601 | 6 | 3.5 mm | Plug (Male) | Black |
| 33481 | 33481-2202 | 2 | 3.5 mm | Plug (Male) | Gray |
| 33481 | 33481-2203 | 2 | 3.5 mm | Plug (Male) | Gray |
| 33481 | 33481-4402 | 4 | 3.5 mm | Plug (Male) | Gray |
| 33481 | 33481-0602 | 6 | 3.5 mm | Plug (Male) | Gray |
| 33472 | 33472-4044 | 4 | 3.5 mm | Receptacle (Female) | Gray (Dark Gray) |
| 33472 | 33472-0668 | 6 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-1259 | 12 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-1207 | 12 | 3.5 mm | Receptacle (Female) | Gray (Light Gray) |
| 33472 | 33472-1253 | 12 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-1260 | 12 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-1607 | 16 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-2062 | 20 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-4101 | 4 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-0602 | 6 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-0601 | 6 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-0670 | 6 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-0671 | 6 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-1202 | 12 | 3.5 mm | Receptacle (Female) | Gray (Light Gray) |
| 33472 | 33472-1306 | 12 | 3.5 mm | Receptacle (Female) | Black |

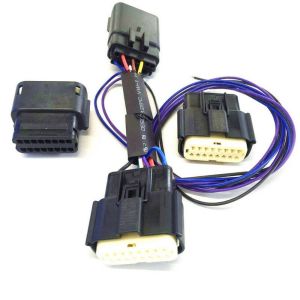

| 33472 | 33472-1601 | 16 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-1602 | 16 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-1769 | 16 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-4882 | 8 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-2507 | 20 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-4001 | 4 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-0606 | 6 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-0701 | 6 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-1201 | 12 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-1301 | 12 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-4006 | 4 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-4806 | 8 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-4852 | 8 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-1606 | 16 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-2001 | 20 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-2002 | 20 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-2006 | 20 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-2007 | 20 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-2502 | 20 | Receptacle (Female) | ||
| 33472 | 33472-4801 | 8 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-4807 | 8 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-4888 | 8 | 1.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-4901 | 8 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-4031 | 12 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-4879 | 8 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-1254 | 12 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-1770 | 16 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-4007 | 4 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-4881 | 8 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-0669 | 6 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-1302 | 12 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-4906 | 8 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-3001 | 16 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-4042 | 4 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-0200 | 20 | 3.5 mm | Receptacle (Female) | |
| 33472 | 33472-0607 | 6 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-0719 | 4 | 3.5 mm | Receptacle (Female) | Yellow |
| 33472 | 33472-1206 | 12 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-1307 | 12 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-2063 | 20 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-4002 | 4 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-4880 | 8 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-5024 | 8 | 1.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-3002 | 16 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-0681 | 6 | 3.5 mm | Receptacle (Female) | Black |
| 33472 | 33472-4802 | 8 | 3.5 mm | Receptacle (Female) | Gray |
| 33472 | 33472-1399 | 12 | Receptacle (Female) | ||
| 33472 | 33472-1886 | 16 | 3.5 mm | Receptacle (Female) | |
| 33471 | 33471-0501 | 5 | 3.5 mm | Receptacle (Female) | Black |

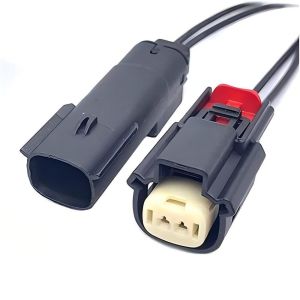

| 33471 | 33471-0201 | 2 | 3.5 mm | Receptacle (Female) | Black |
| 33471 | 33471-0202 | 2 | 3.5 mm | Receptacle (Female) | Gray |
| 33471 | 33471-0206 | 2 | 3.5 mm | Receptacle (Female) | Black |
| 33471 | 33471-3301 | 3 | 3.5 mm | Receptacle (Female) | Black |
| 33471 | 33471-3302 | 3 | 3.5 mm | Receptacle (Female) | Gray |
| 33471 | 33471-6006 | 6 | 3.5 mm | Receptacle (Female) | Black |

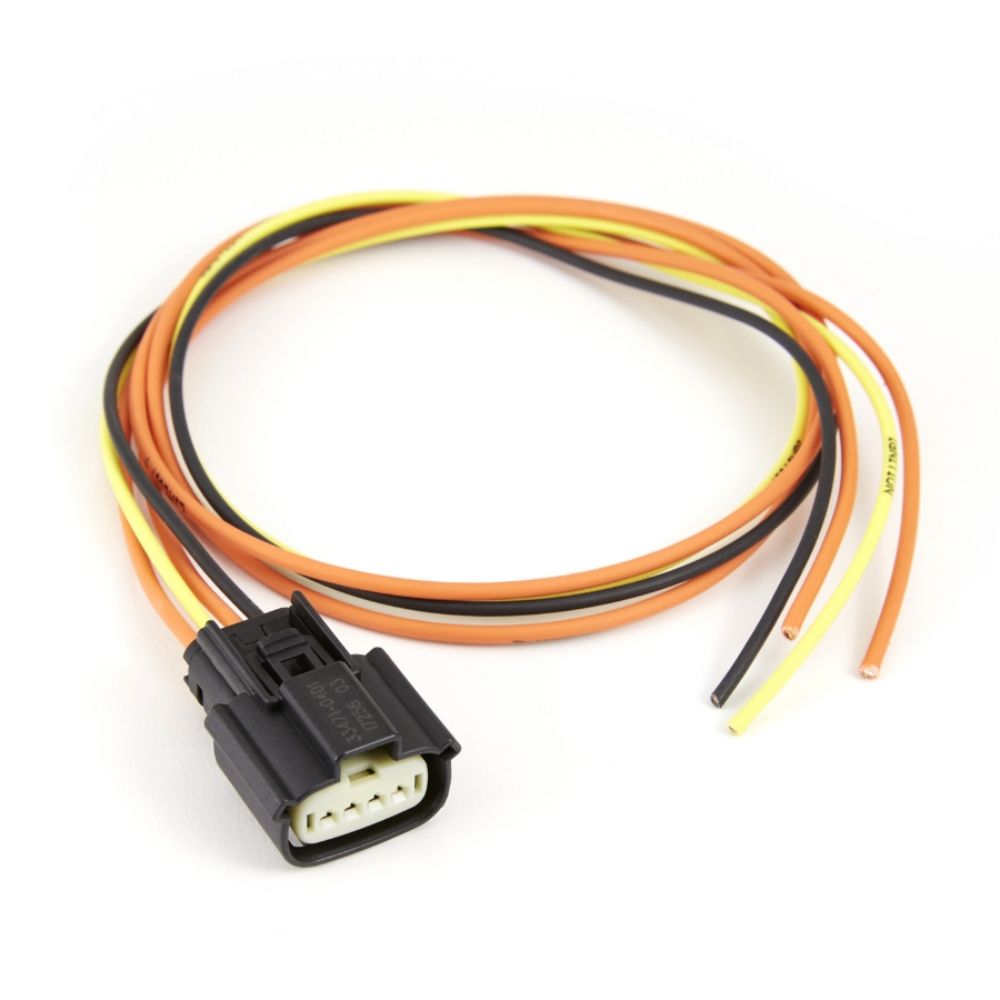

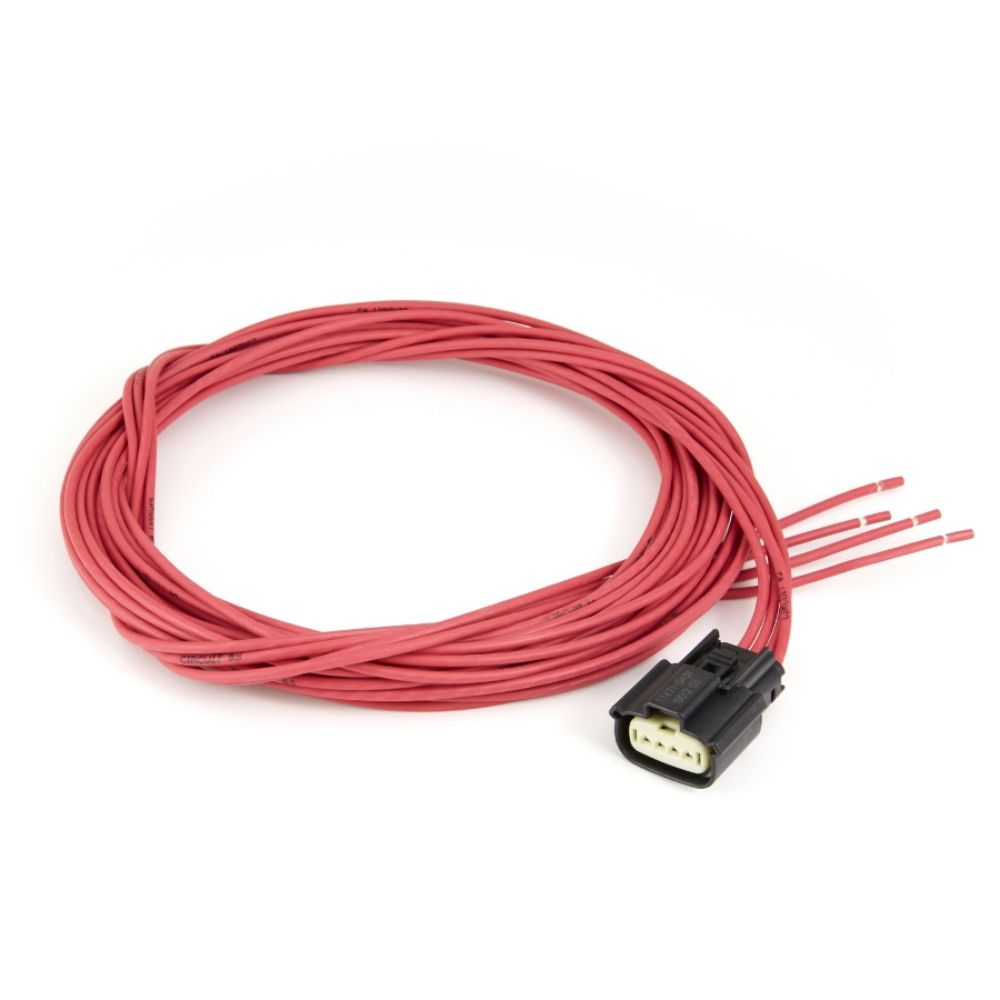

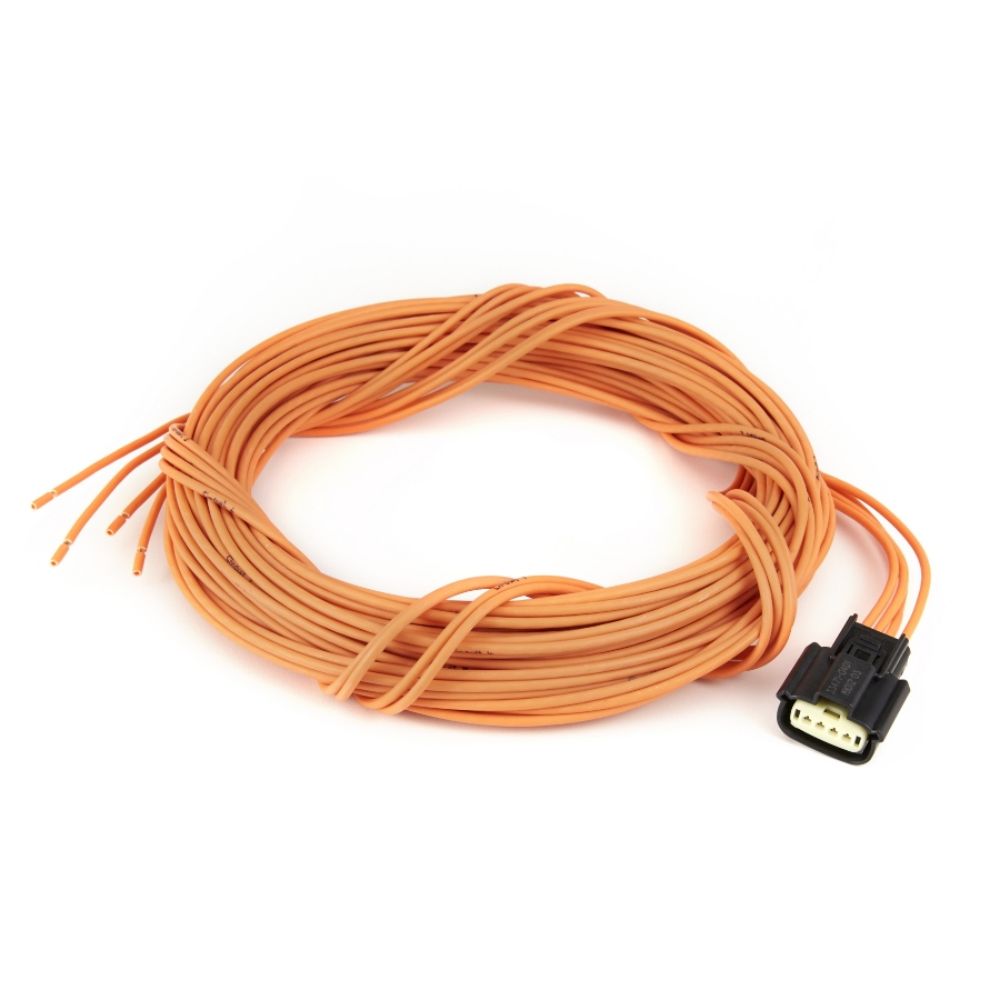

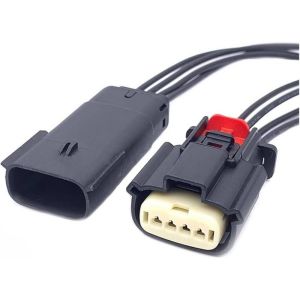

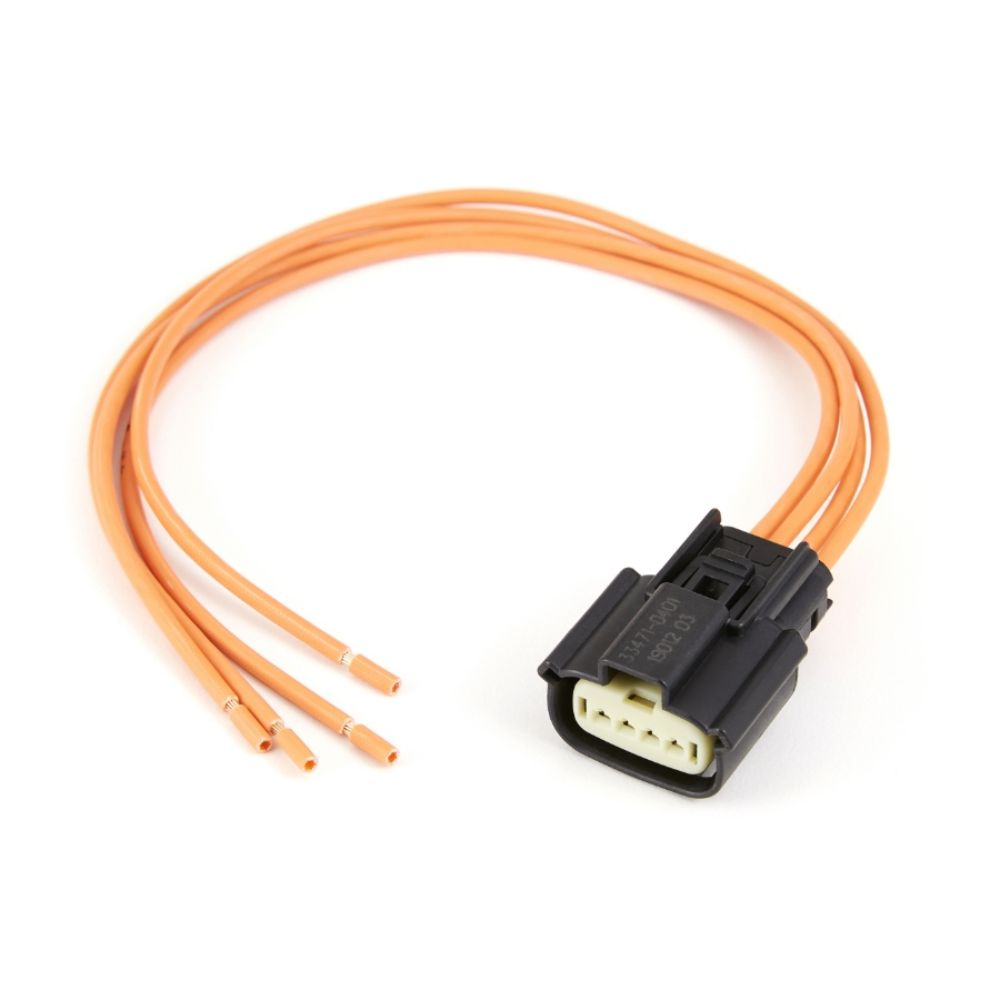

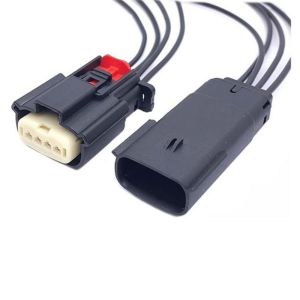

| 33471 | 33471-0401 | 4 | 3.5 mm | Receptacle (Female) | Black |
| 33471 | 33471-0406 | 4 | 3.5 mm | Receptacle (Female) | Black |
| 33471 | 33471-0203 | 2 | 3.5 mm | Receptacle (Female) | Gray |
| 33471 | 33471-0207 | 2 | 3.5 mm | Receptacle (Female) | |
| 33471 | 33471-0402 | 4 | 3.5 mm | Receptacle (Female) | |
| 33471 | 33471-3307 | 3 | 3.5 mm | Receptacle (Female) | Gray |
| 33471 | 33471-0407 | 4 | 3.5 mm | Receptacle (Female) | |
| 33471 | 33471-0461 | 4 | 3.5 mm | Receptacle (Female) | Black |
| 33471 | 33471-0506 | 5 | 3.5 mm | Receptacle (Female) | Black |
| 33471 | 33471-3343 | 3 | 3.5 mm | Receptacle (Female) | Gray |
| 33471 | 33471-6001 | 6 | 3.5 mm | Receptacle (Female) | Black |
| 160127 | 160127-4801 | 8 | 3.5 mm | Receptacle (Female) | Black |
| 160127 | 160127-2001 | 20 | 3.5 mm | Receptacle (Female) | Black |
| 160121 | 160121-2101 | 20 | 3.5 mm | Plug (Male) | Black |
| 160078 | 160078-3011 | 8 | 3.5 mm | Receptacle (Female) | Black |
| 160078 | 160078-3012 | 8 | 3.5 mm | Receptacle (Female) | Gray (Light Gray) |
| 160078 | 160078-3016 | 8 | 3.5 mm | Receptacle (Female) | Black |
| 160078 | 160078-3013 | 8 | 3.5 mm | Receptacle (Female) | Dark Gray |
| 160078 | 160078-3014 | 8 | 3.5 mm | Receptacle (Female) | Stone Gray |
| 160078 | 160078-3017 | 8 | 3.5 mm | Receptacle (Female) | Gray (Light Gray) |
| 160078 | 160078-3018 | 8 | 3.5 mm | Receptacle (Female) | Dark Gray |
| 160078 | 160078-3019 | 8 | 3.5 mm | Receptacle (Female) | Stone Gray |
| 160076 | 160076-5006 | 10 | 3.5 mm | Receptacle (Female) | Black |
| 160074 | 160074-0001 | 20 | 3.5 mm | Receptacle (Female) | Black |
| 160074 | 160074-6006 | 12 | 3.5 mm | Receptacle (Female) | Black |
| 160074 | 160074-4002 | 8 | 3.5 mm | Receptacle (Female) | Gray |
| 160074 | 160074-0002 | 20 | 3.5 mm | Receptacle (Female) | Gray |
| 160074 | 160074-0003 | 20 | 3.5 mm | Receptacle (Female) | Gray |
| 160074 | 160074-0004 | 20 | 3.5 mm | Receptacle (Female) | Gray |
| 160074 | 160074-4001 | 8 | 3.5 mm | Receptacle (Female) | Black |
| 160074 | 160074-6009 | 12 | 3.5 mm | Receptacle (Female) | Gray |
| 160073 | 160073-3102 | 3 | 4.5 mm | Receptacle (Female) | Gray |
| 160073 | 160073-3105 | 3 | 4.5 mm | Receptacle (Female) | Black |
| 160073 | 160073-3106 | 3 | 4.5 mm | Receptacle (Female) | Gray |
| 160073 | 160073-3116 | 3 | 4.5 mm | Receptacle (Female) | Gray |
| 160073 | 160073-3112 | 3 | 4.5 mm | Receptacle (Female) | Gray |
| 160073 | 160073-3107 | 3 | 4.5 mm | Receptacle (Female) | Gray |
| 148032 | 148032-0002 | 2 | 5 mm | Socket (Female) | Gray |
| 148032 | 148032-0003 | 2 | 5 mm | Receptacle (Female) | Black |
| 148032 | 148032-0005 | 2 | 5 mm | Receptacle (Female) | Black |
Custom Wiring Harness Cases
2 way 33471-0201 33481-0201 Wire Harness
2-Way MX150 connector 1 to 2 Headlight Wire Harness

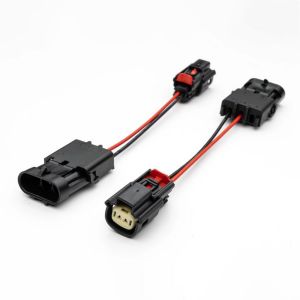

Ford Fog Light wire harness
4 way 33471-0401 and 33481-0401 Wire Harness
MX150 4-Way 33471-0401 33481-0401 Wire Harness
4 way male and female Wire Harness
6-Way Molex Mx150 Connector Wiring Harness
8 way 33472-0801 33482-4801 Wire Harness
12 way 33472-1201 33482-1201 Wire Harness
16 way 33472-1601 33482-1601 Auto Wire Harness
Molex MX150 Wire Harness
Molex Mx150 3.5mm Connectors Wire Harness
How to customize your wire harness?
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
