DB 15pin male to female cable
DB 15pin male to female cable DB 15pin male to female cable DB 15pin male to female cable DB 15pin male to female cable DB 15pin male to female cable

DB 15pin male to female cable

Product ID : HHDA1912201424
Product Tags : D-sub Cable
Product Attributes :

One DB15 Male Connector

One DB15 Female Connector

molding type and assembly type available

custom length

custom electric circuits

custom wire gauge

Product Description

We are able to make DB9, DB15, DB25, DB37, and DB44 Cable



1. Basic Information:

Item Name: DB15P Female to DB 15 PIN  Male Cable

Specs: Pure Copper or Tinned Copper+PVC

Length:1M to 50M customed

Connector: Nickel Plated or Gold Plated



2. Electrical Test:
2.1. Hi-Pot Test: DC300V.

2.2. Insulation Resistance: 10 Ohm (Min).

2.3. Contactor Resistance: 5 Ohm (Max).

2.4. 100% Open Short and Miss Wire Test.



3. Certifications:

3.1 RoHS  Compliant

3.2 CE

3.3 UL

3.4 IATF16949

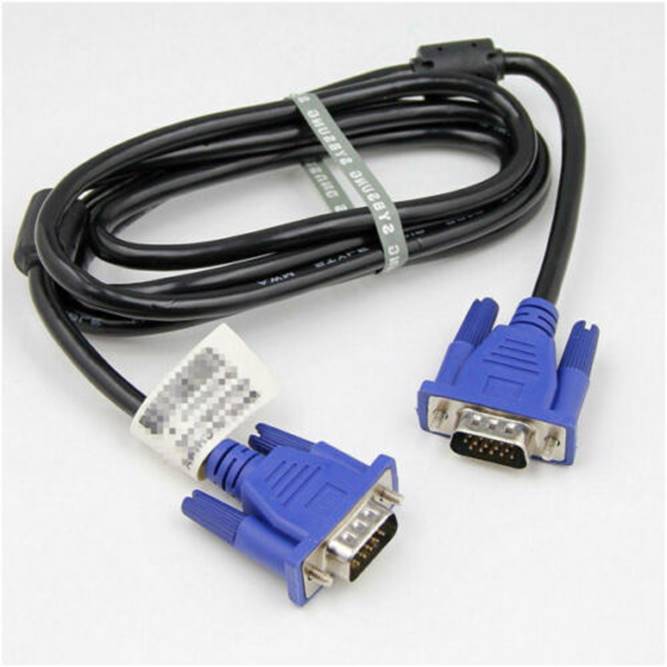

DB 15pin male to male cable black overmold

db 15 cable

DB 15pin male to male cable blue overmold

db 15pin cable

DB 15pin male to male cable grayovermold

db 15 cable

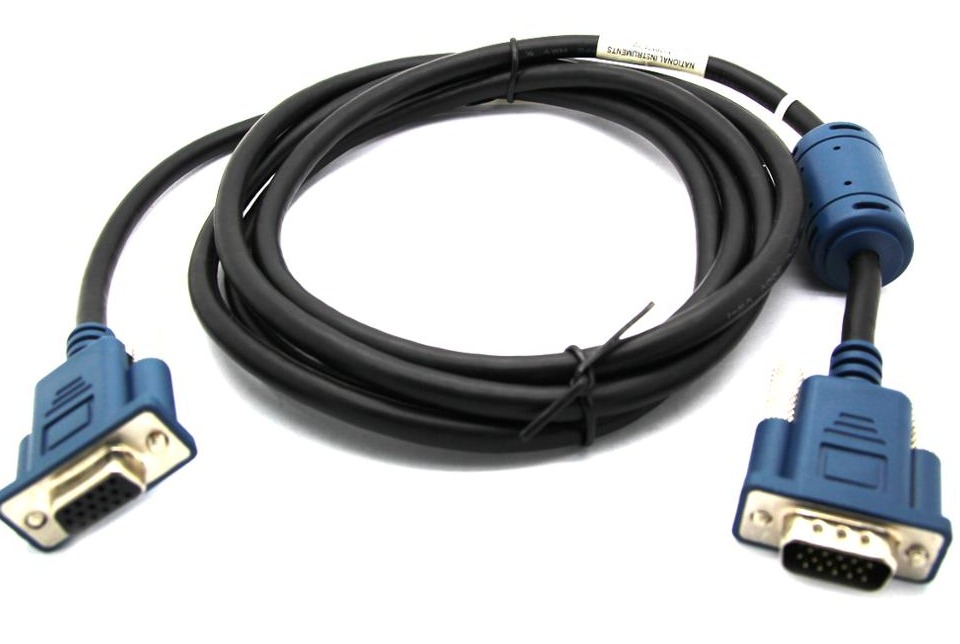

DB 15pin male to female cable light blue overmold

db 15p cable

Two Lines type:

d-sub connector

Three Lines type:

d-sub connector

Why we need you to send a drawing/schematic or sample to us for quote price?

Different application needs a different electric circuit, some the clients just only three wires, and some of them will use all the wires, also different wire connections, this is the customized type of cables demand. also, drawing needs to show the connector type, wire gauge, length, core color request, outside jacket materials, overmold hardness, etc. if you don't have drawing, you can send a sample to us or tell our sales representative as more details as possible.



How to custom your own wire harness?

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if need(7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
