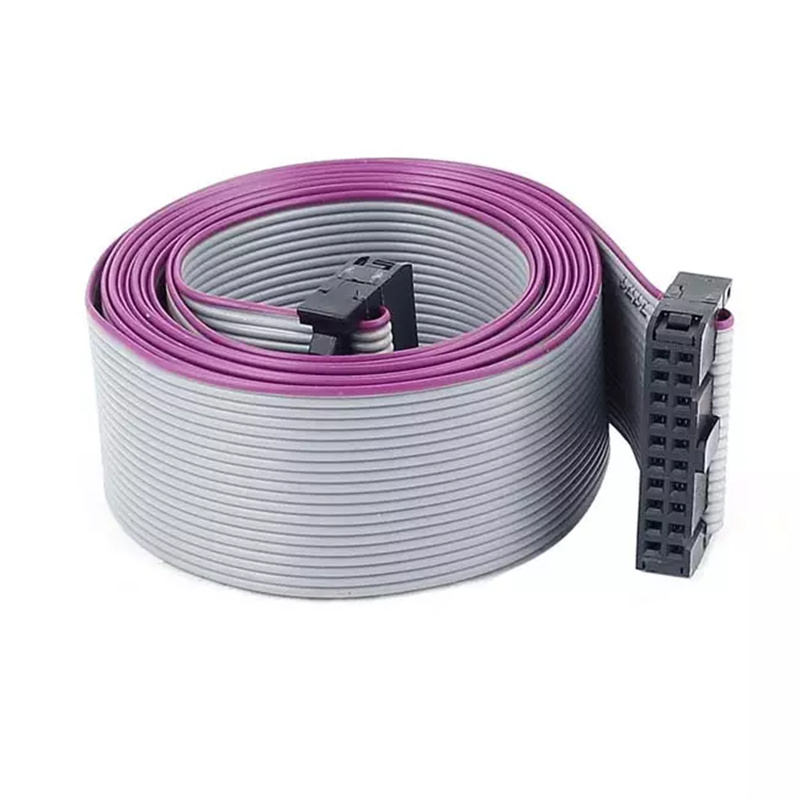

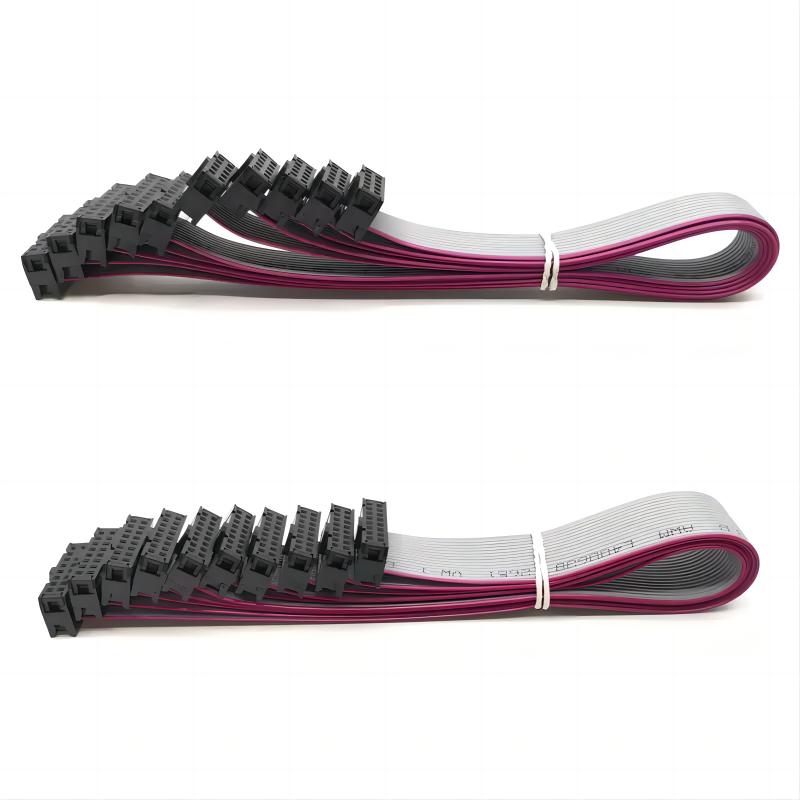

1.27mm pitch idc connector flat ribbon cable 10 pin
- Ribbon Cable: Flat and flexible, with multiple wires running parallel, making it easy to organize.
- Wiring Configuration: Each pin on the IDC connector typically corresponds to a specific wire in the ribbon cable, which connects to the DB9.
- Application: Used to connect devices for serial communication or in custom electronics projects.
- Plug-and-Play: Easy to connect without soldering, ideal for quick setups.
- Durability: Secure connections for repeated use, suitable for industrial and commercial applications.

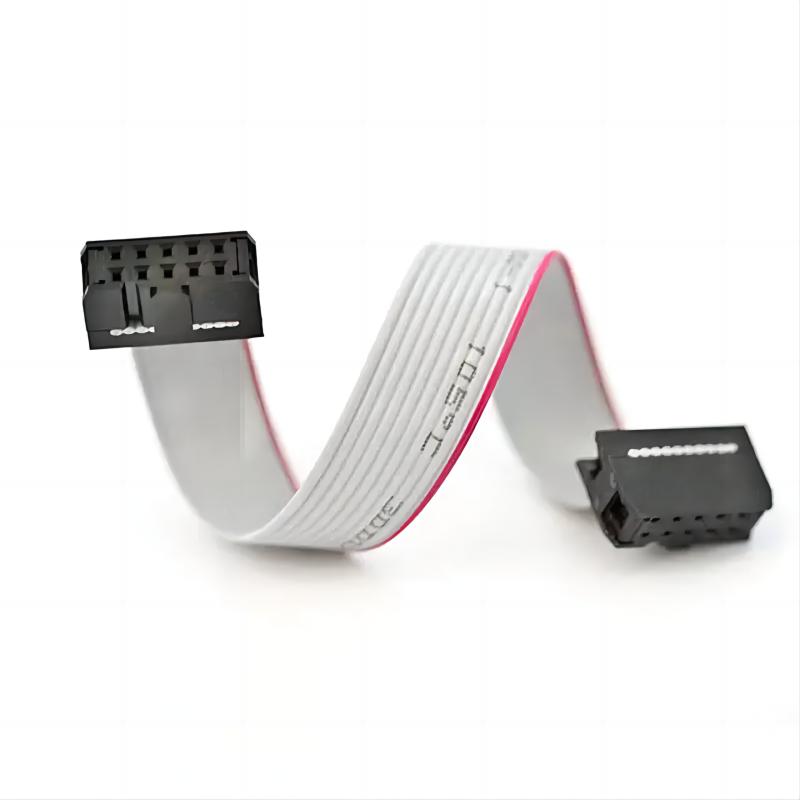

1.27mm pitch IDC connector flat ribbon cable 10 pin
The 1.27mm pitch IDC connector flat ribbon cable with 10 pins is a versatile and reliable solution for connecting various electronic components. This high-quality cable features a compact design that allows it to fit into tight spaces, making it ideal for use in applications where space is limited.
The IDC (Insulation Displacement Connector) technology used in this cable ensures secure and stable connections between the pins and the corresponding sockets, minimizing the risk of signal loss or interference. The flat ribbon design also helps to reduce crosstalk and electromagnetic interference, ensuring optimal performance even in noisy environments.
With its 10-pin configuration, this cable can support a wide range of devices and applications, from computer peripherals to industrial automation systems. Its durable construction makes it suitable for use in harsh environments where temperature fluctuations or mechanical stress may be present.
Whether you're an engineer designing complex electronic systems or simply need a reliable cable for your DIY project, the 1.27mm pitch IDC connector flat ribbon cable with 10pins is an excellent choice that will provide years of trouble-free service.

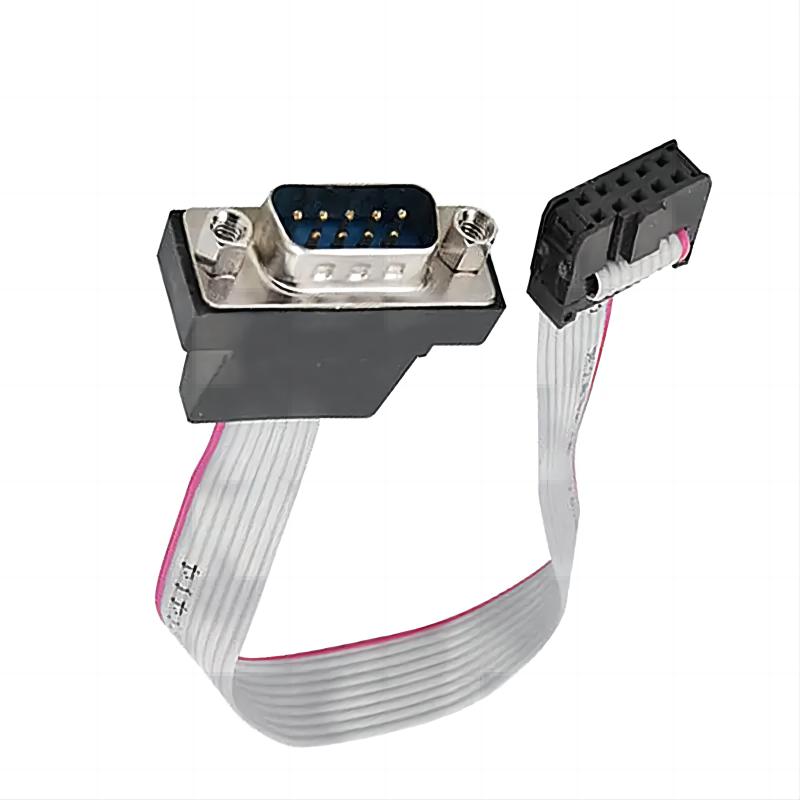

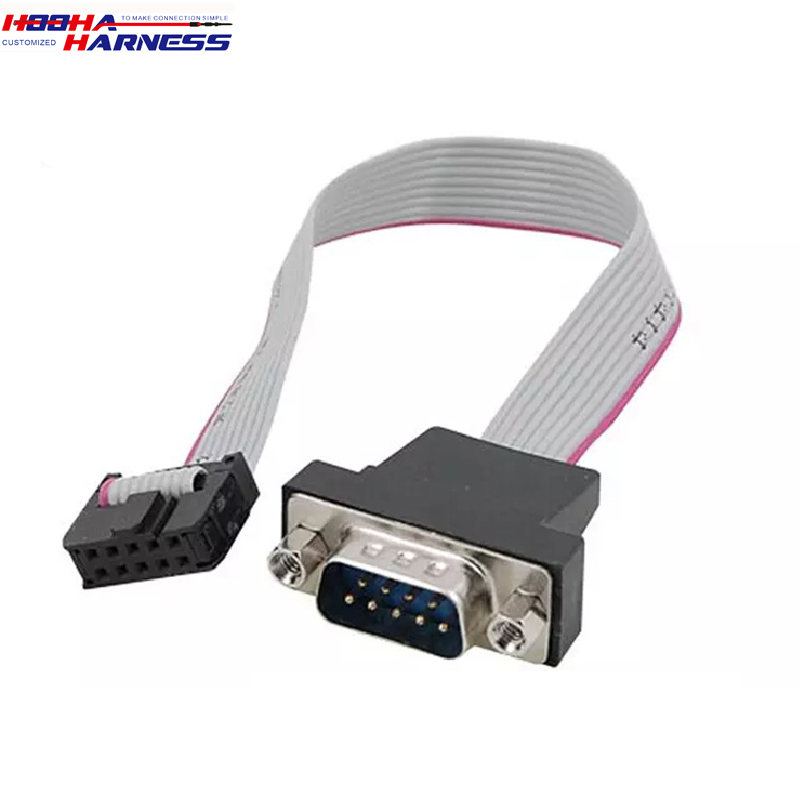

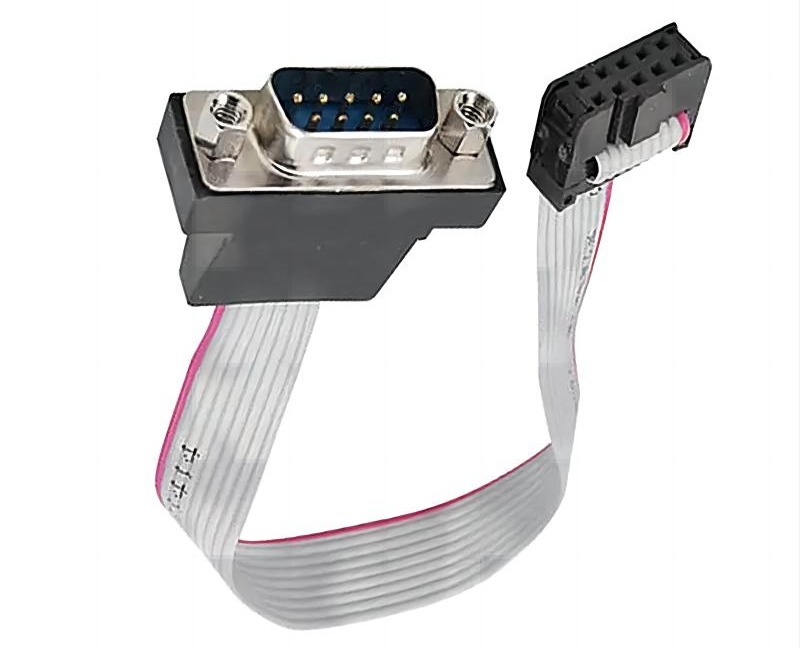

IDC 10P to DB9 ribbon cable Wiring Diagram
| IDC Pin | DB9 Pin | Signal |
| 1 | 2 | RX |
| 2 | 3 | TX |
| 3 | 4 | DTR |
| 4 | 5 | GND |
| 5 | 6 | DSR |
| 6 | 7 | RTS |
| 7 | 8 | CTS |
| 8 | 9 | RI |
| 9 | - | - |
| 10 | - | - |
IDC 10P to DB9 ribbon cable applications
-
Computer Peripheral Connections: These cables can connect peripherals such as printers, scanners, and other devices that require a DB9 interface.
-
Embedded Systems: In embedded system development, these cables are often used to interface microcontrollers or development boards with serial communication ports.
-
Networking Equipment: They are used to connect networking devices, such as routers and switches, that utilize DB9 serial ports for configuration and management.
-
Industrial Equipment: Many industrial automation devices use DB9 connectors for serial communication, making these cables useful in factory settings for connecting sensors, actuators, and control systems.
-
Data Acquisition Systems: In scientific and research applications, IDC to DB9 cables can connect data acquisition devices to computers or controllers for data transfer.
-
Legacy Device Integration: Many older devices still use DB9 connectors, so these cables are vital for integrating new systems with legacy hardware.
-
Prototyping: Engineers and developers often use these cables in prototyping circuits and devices, allowing for quick and easy connections without soldering.
-
Telecommunications: In telecommunication systems, these cables can connect modems and other communication devices that use serial ports.
Overall, IDC 10P to DB9 ribbon cables provide a reliable and efficient means of communication in various applications, especially where space-saving and efficient connections are required.
