JST SCN-2P wire harness
- Connector support from 2Pin to 16Pin.
- Terminal fit for 28AWG~22AWG (OD: 0.9-1.7mm).
- Current rating: 3A AC/DC (22AWG).
- Voltage rating: 250V AC/DC.
JST SCN Connectors, Wire Harness Assembly
The JST SCN Connectors Wiring harness has a current rating of 3 A AC/DC (AWG #22) and a voltage rating of 250 V AC/DC. It can withstand temperatures ranging from -25℃ to +85℃, including temperature rise when electrical current is applied. The insulation resistance is at least 1,000 MΩ and it can withstand a voltage of 800 VAC per minute. This wiring harness is suitable for wires with AWG #28 to #22 and PC boards with thicknesses of 1.2 mm or 1.6 mm. Customization options include the connector brand, pin number, wire length, gauge, color, and electric circuits.
Connector Features
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to+85℃ (including temperature rise in applying electrical current)
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 800 VAC/minute
- Applicable wire: AWG #28 to #22
- Applicable PC board thickness: 1.2 mm,1.6 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
JST SCN Connector Part Number
| No. of circuits | Model No. |
| 2 | 2P-SCN |
| 3 | 3P-SCN |
| 4 | 4P-SCN |
| 5 | 5P-SCN |
| 6 | 6P-SCN |
| 7 | 7P-SCN |
| 8 | 8P-SCN |
| 9 | 9P-SCN |
| 10 | 10P-SCN |
| 11 | 11P-SCN |
| 12 | 12P-SCN |
| 13 | 13P-SCN |
| 14 | 14P-SCN |
| 15 | 15P-SCN |
| 16 | 16P-SCN |

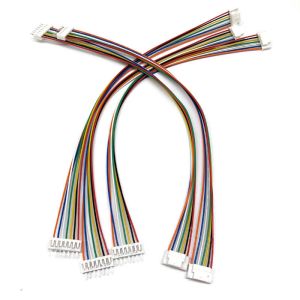

JST SCN Connectors Wiring Harness Cases

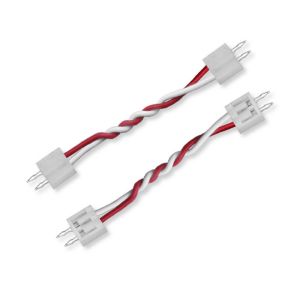

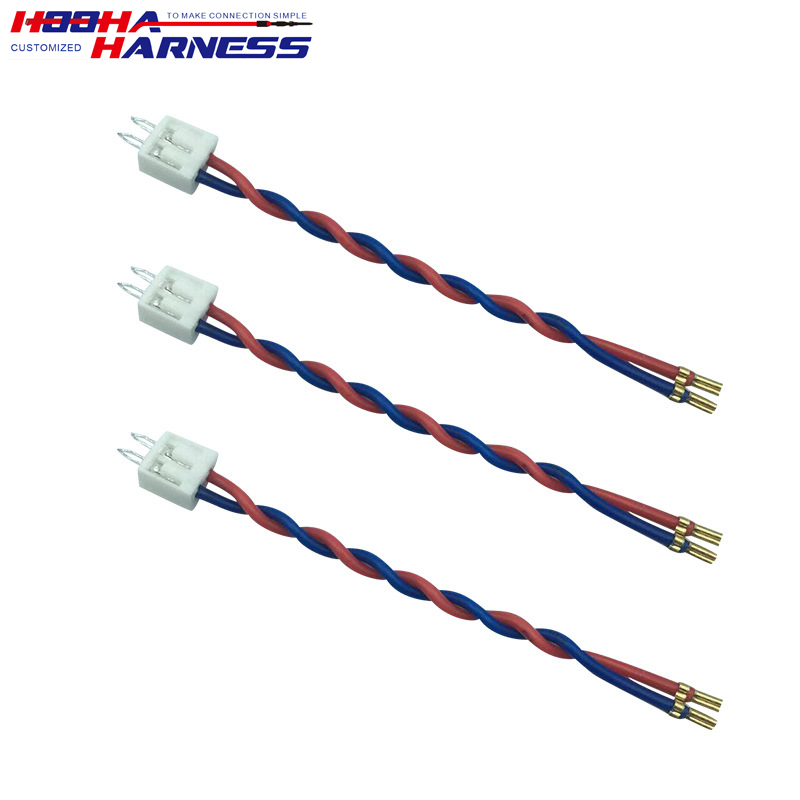

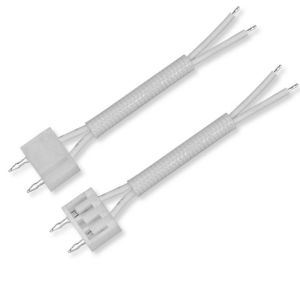

JST SCN Connector 2 Pin 2 Twist Wiring

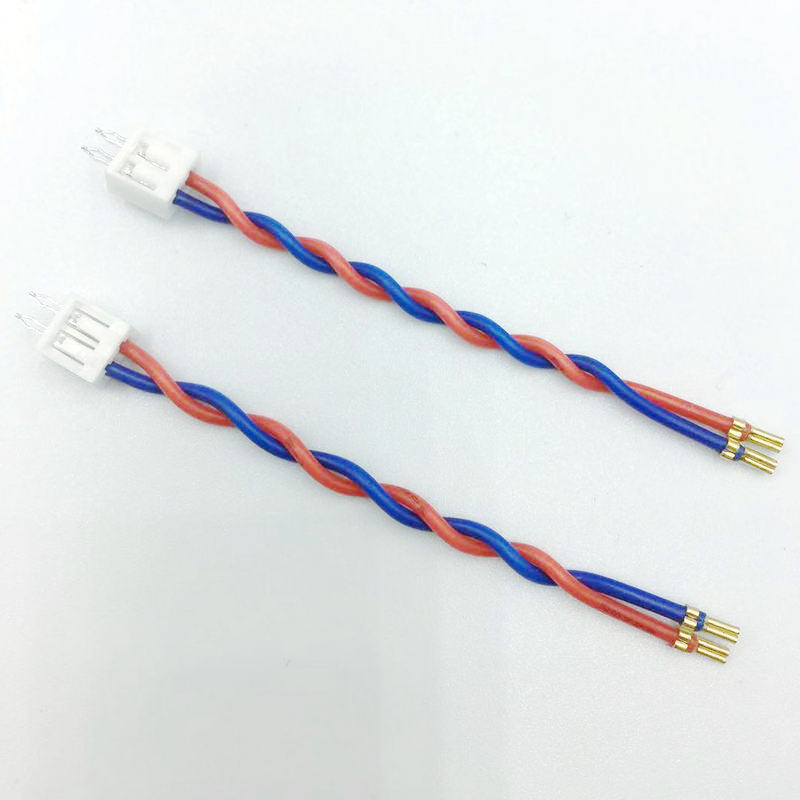

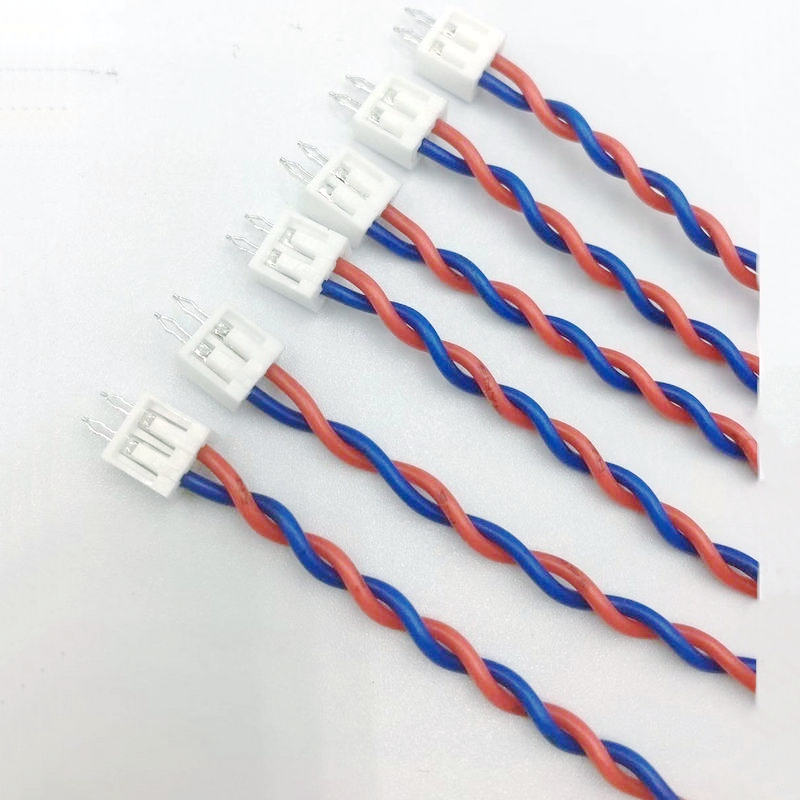

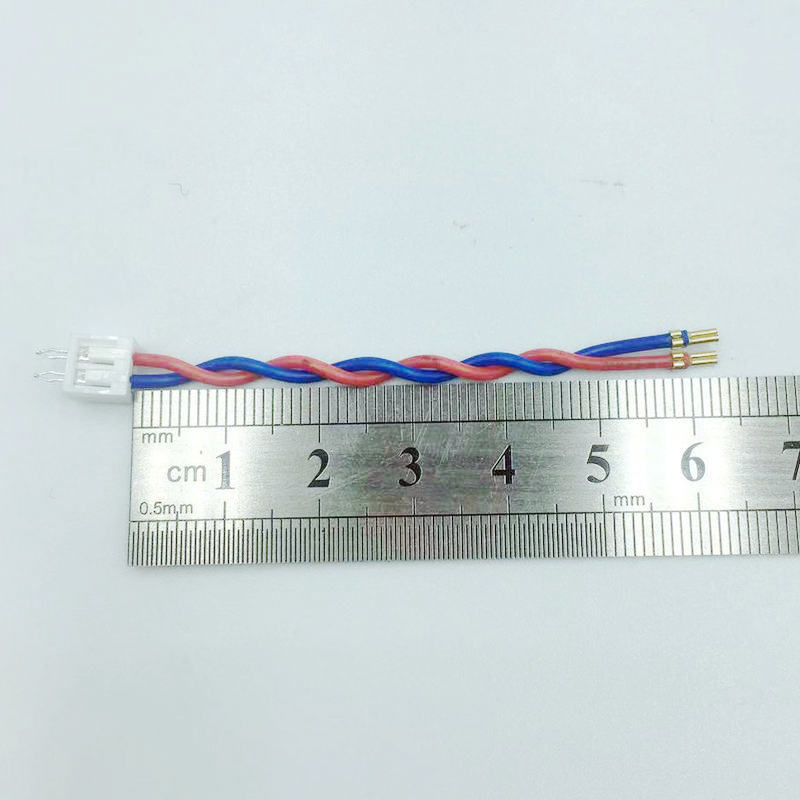

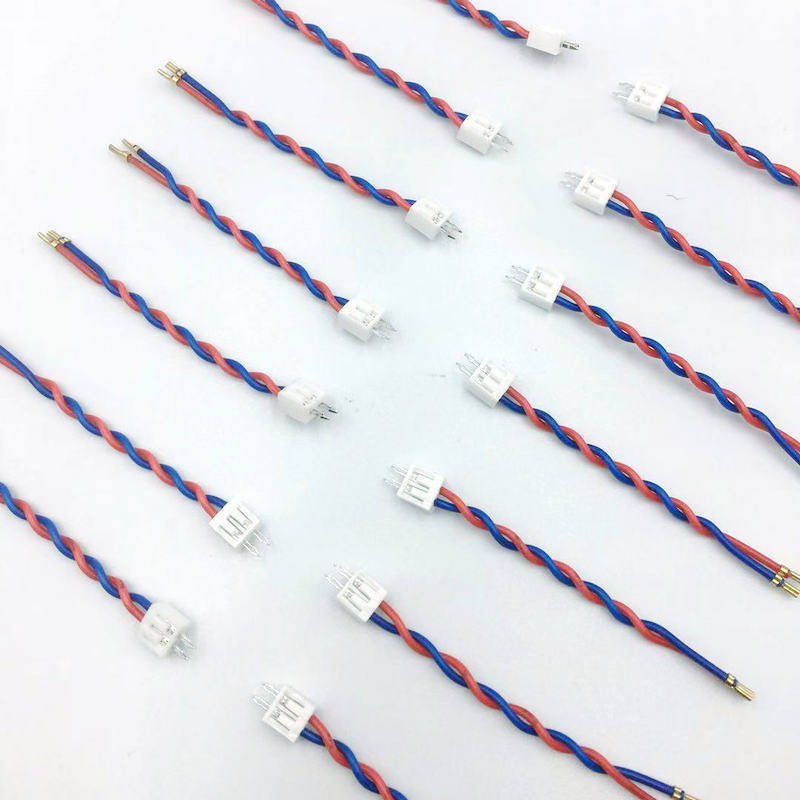

JST SCN Connector 2 Pin 2 Wiring

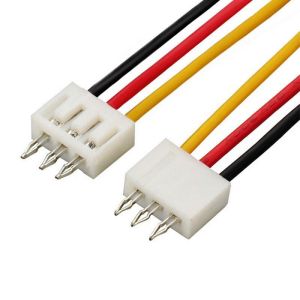

JST SCN Connector 3 Pin 3 Wiring

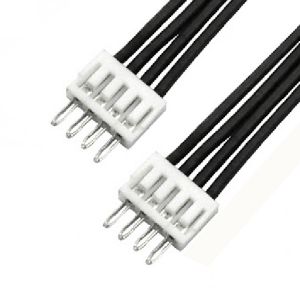

JST SCN Connector 4 Pin 4 Wiring

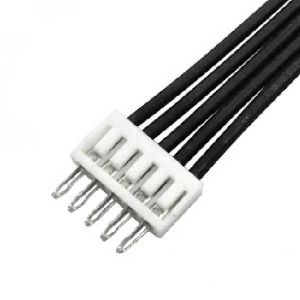

JST SCN Connector 5 Pin 5 Wiring

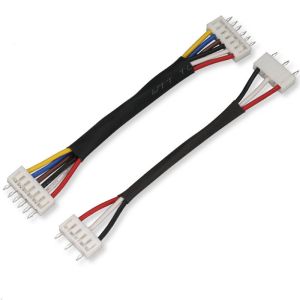

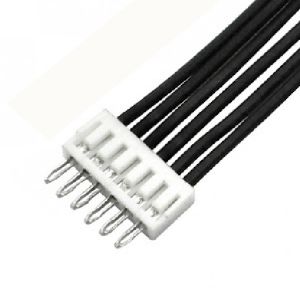

JST SCN Connector 6 Pin 6 Wiring
JST SCN 6 Pin 6 Wiring, 5 Pin 3 Wiring
JST SCN Connector 7 Pin 7 Wiring

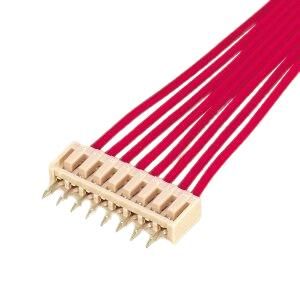

JST SCN Connector 8 Pin 8 Wiring
How to customize your wire harness?
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
