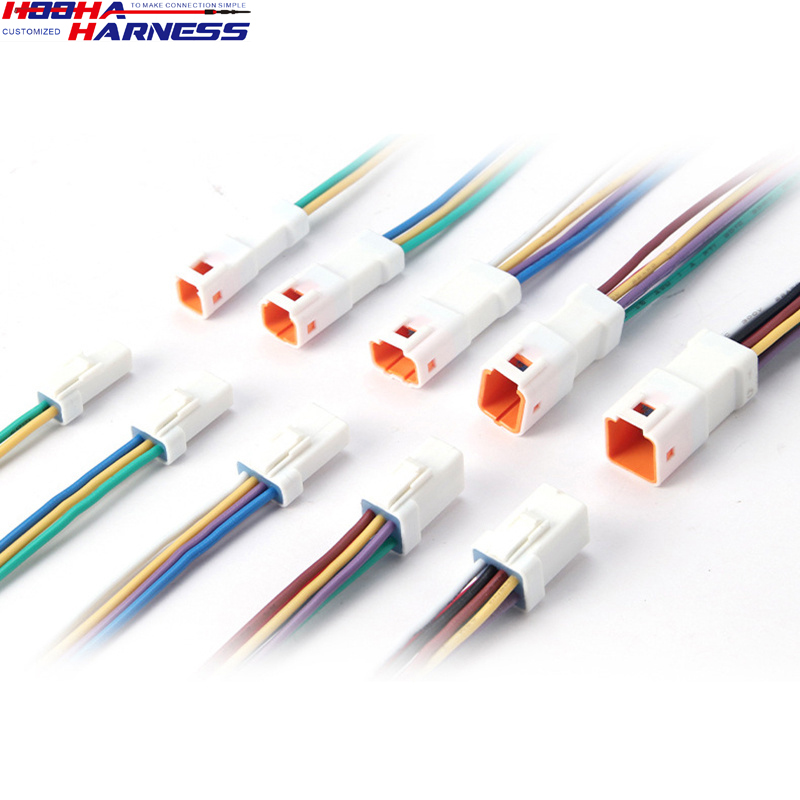

JST JWPF VSLE series male to female waterproof type connector wire to wire assembly service
JST JWPF VSLE series male to female waterproof type connector wire to wire assembly service JST JWPF VSLE series male to female waterproof type connector wire to wire assembly service JST JWPF VSLE series male to female waterproof type connector wire to wire assembly service JST JWPF VSLE series male to female waterproof type connector wire to wire assembly service JST JWPF VSLE series male to female waterproof type connector wire to wire assembly service

JST JWPF VSLE series male to female waterproof type connector wire to wire assembly service

Product ID : 0879
Product Attributes :

The JWPF connector is a highly reliable wire-to-wire connector that boasts an impressive grade 7 ingress protection rating of JIS C 0920 (IPX7 of IEC 60529). This means that it can be used in applications where waterproofing is essential, such as marine environments or outdoor installations. The connector's waterproof performance is further enhanced by its contained seal ring and solid rubber seal, which prevent water from seeping into the connection points. Additionally, the double-spring construction ensures a secure and stable connection even under harsh conditions.

The housing-to-terminal locks and inner-housing locks provide added security to ensure that the connectors remain firmly connected at all times. These features make the JWPF connector ideal for use in automotive, industrial, and consumer electronics applications where reliability and durability are critical factors.

Product Description

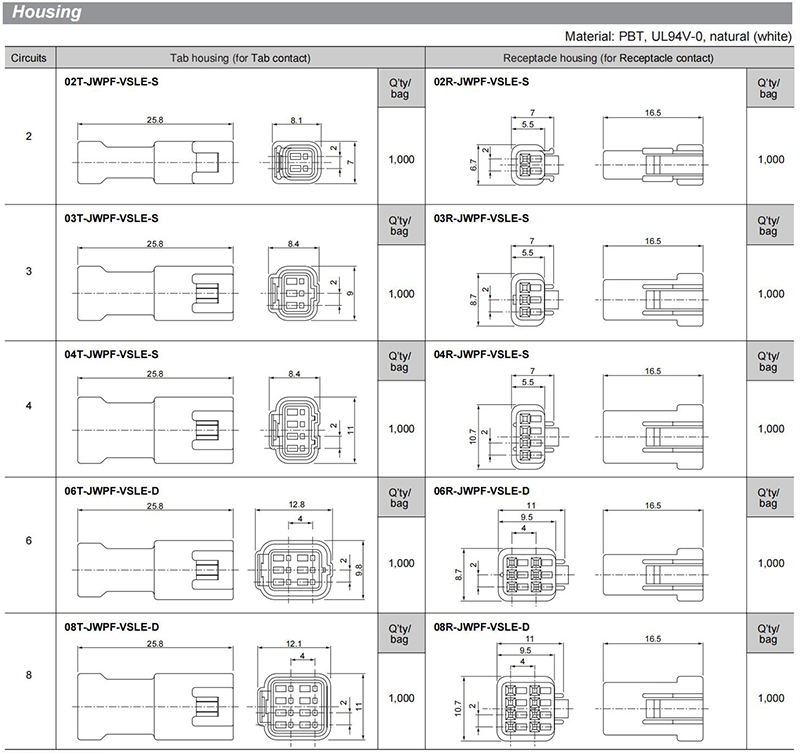

Connector Specifications

Current rating: 3 A AC, DC (AWG #22)

Voltage rating: 100 V AC, DC

Temperature range: -55'C to +85C (including temperature rise in applying electrical current)

Contact resistance: Initial value/ 10 mΩ max; After environmental tests/ 15 mΩ max

Insulation resistance: 1000 MΩ min.

Withstanding voltage: 1000 VAC/minute

Applicable wire: AWG #26 to #22 (0.13 to 0.33 mm²)Insulation OD: 1.4 to 1.7 mm

Waterproof grade: Grade 7 ingress protection of JIS C 0920 (IPX7 of IEC 60529 )



JWPF connector

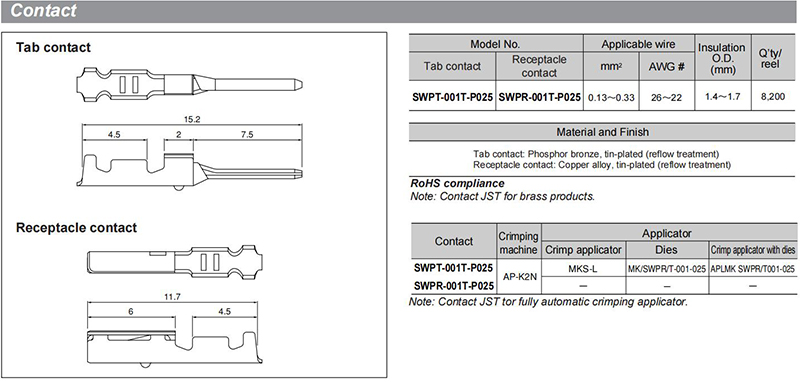

JWPF contacts



JST JWPF VSLE series male-to-female waterproof type connector is a custom-made component for the electronic device that requires a reliable and secure connection. This high-quality connector ensures seamless communication between devices, allowing for efficient data transfer and optimal performance.

Crafted with precision engineering, this male-to-female waterproof type connector boasts exceptional durability and longevity. Its robust construction can withstand harsh environmental conditions such as extreme temperatures, moisture, dust, and vibration.

Whether you simply need wire leads or a complex wire harness, the JST JWPF series connector provides a hassle-free solution that saves time and effort. With its easy-to-use design, waterproof, and simple installation process, even novice users can quickly connect their devices without any technical expertise.

So if you're looking for a reliable male-to-female waterproof type connector that delivers outstanding performance in all conditions, look no further than the JST JWPFVSLE series connectors

Send us an inquiry if are also need a similar custom wire harness, and we will quote a price for your reference.

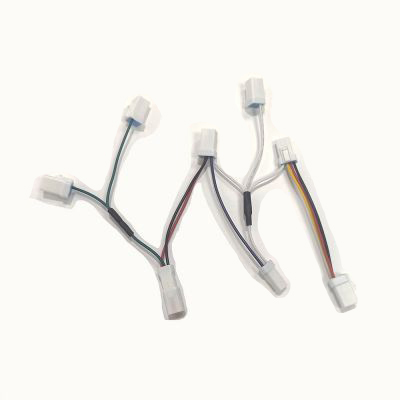

Custom wire harness assembly

JST JWPF VSLE

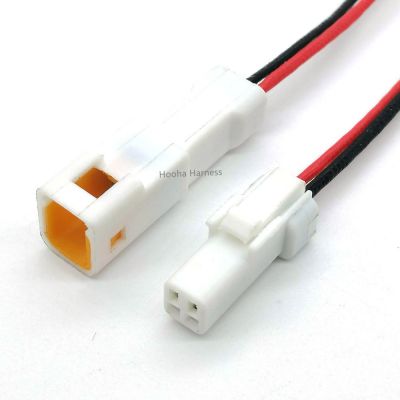

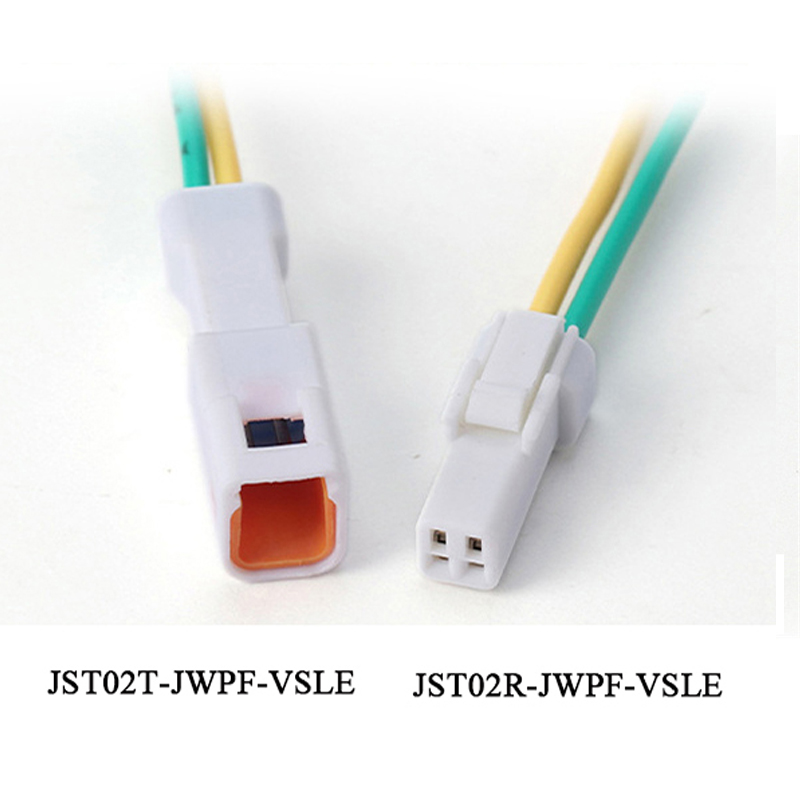

JST JWPF 2pin

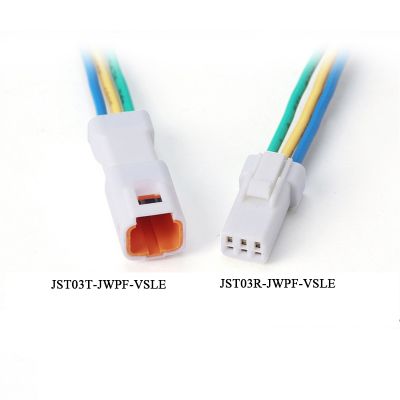

JST JWPF 3pin

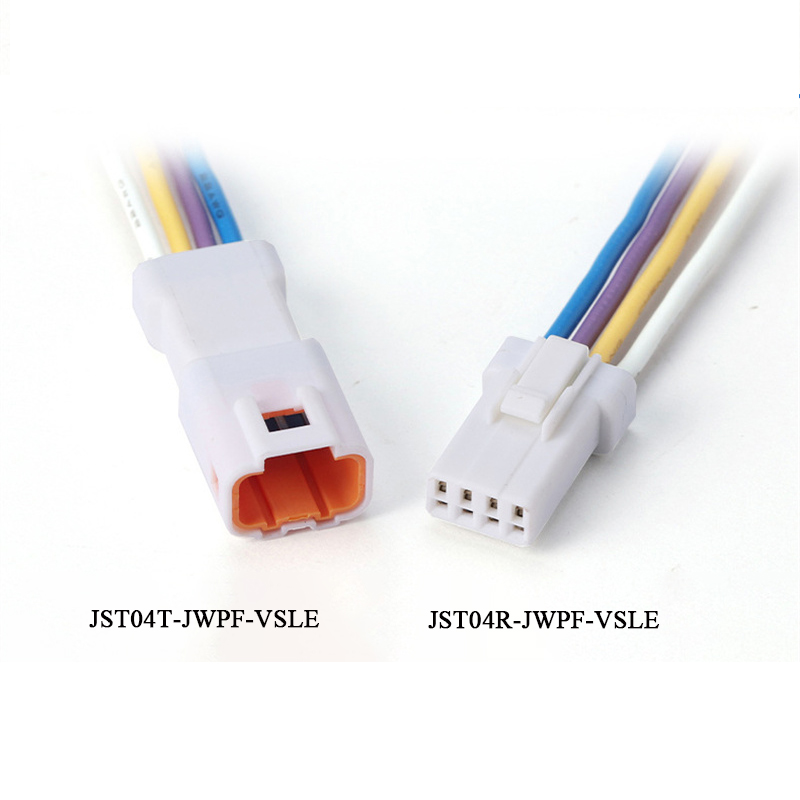

JST JWPF 4pin

JST JWPF 6pin

JST JWPF 8pin
