JST NSH Series Connector, Wiring Harness Custom Assembly
- Connector support from 2 Pin to 15 Pin.
- Header support from 2P to 15P.
- Terminal fit for 32AWG~28AWG.
- Current rating: 1.0 A AC/DC (28AWG).
- Voltage rating: 50V AC/DC.
- Wire style support: UL1571, UL1061
- Wire Color: white, black, red, yellow, green, blue, purple, grey, orange, brown, etc.
Connector Features
- Current rating: 1.0 A AC/DC (AWG #28)
- Voltage rating: 50 V AC/DC
- Temperature range:-25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 30 mΩ max, After environmental tests/ 50 mΩ max.
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Conductor size/ AWG #32 to #28, Insulation O.D./ 0.4 to 0.8 mm

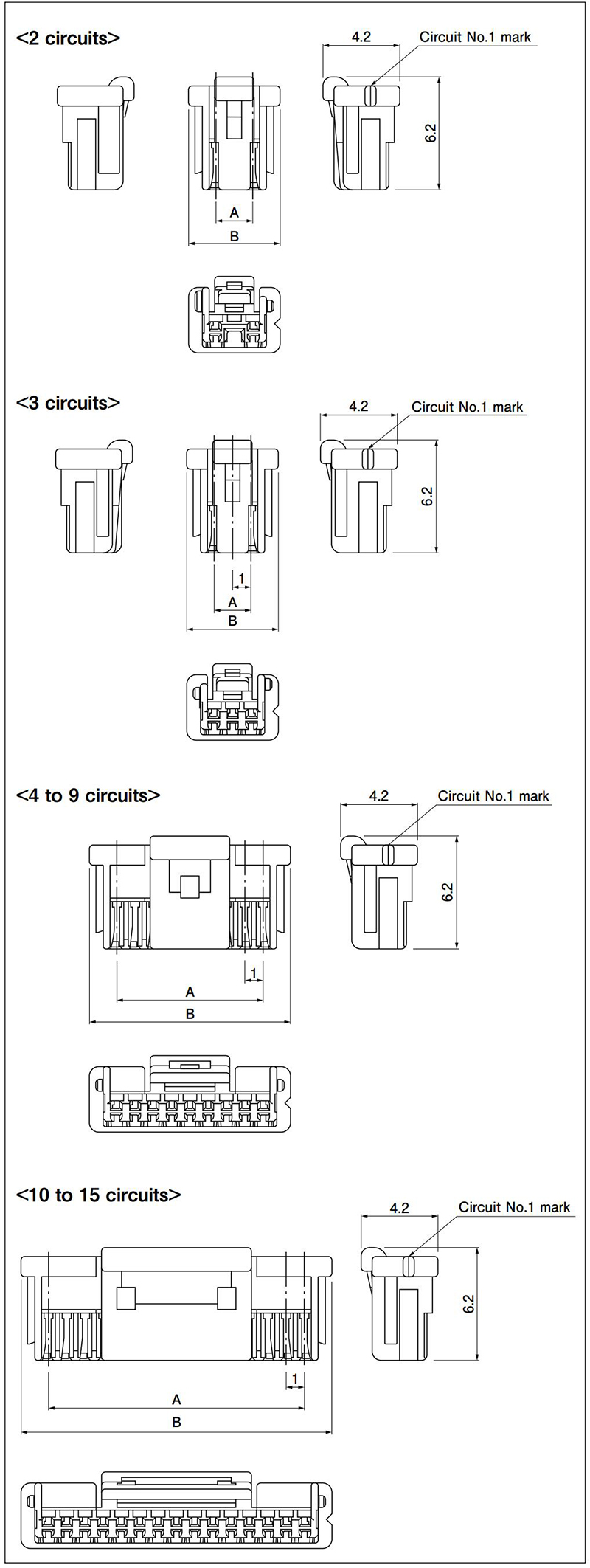

JST NSH Series Connector Part Number Lists
| No. of circuits |
Model No. | Dimensions(mm) | Q'ty/ bag |
|
| A | B | |||
| 2 | NSHR-02V-S | *2.0 | *5.0 | 3,000 |
| 3 | NSHR-03V-S | 2.0 | 5.0 | 3,000 |
| 4 | NSHR-04V-S | 3.0 | 6.0 | 2,500 |
| 5 | NSHR-05V-S | 4.0 | 7.0 | 2,000 |
| 6 | NSHR-06V-S | 5.0 | 8.0 | 1,500 |
| 7 | NSHR-07V-S | 6.0 | 9.0 | 1,500 |
| 8 | NSHR-08V-S | 7.0 | 10.0 | 1,500 |
| 9 | NSHR-09V-S | 8.0 | 11.0 | 1,000 |
| 10 | NSHR-10V-S | 9.0 | 12.0 | 1,000 |
| 11 | NSHR-11V-S | 10.0 | 13.0 | 1,000 |
| 12 | NSHR-12V-S | 11.0 | 14.0 | 1,000 |
| 13 | NSHR-13V-S | 12.0 | 15.0 | 1,000 |
| 14 | NSHR-14V-S | 13.0 | 16.0 | 1,000 |
| 15 | NSHR-15V-S | 14.0 | 17.0 | 1,000 |
JST NSH Connector Wiring Harness Cases

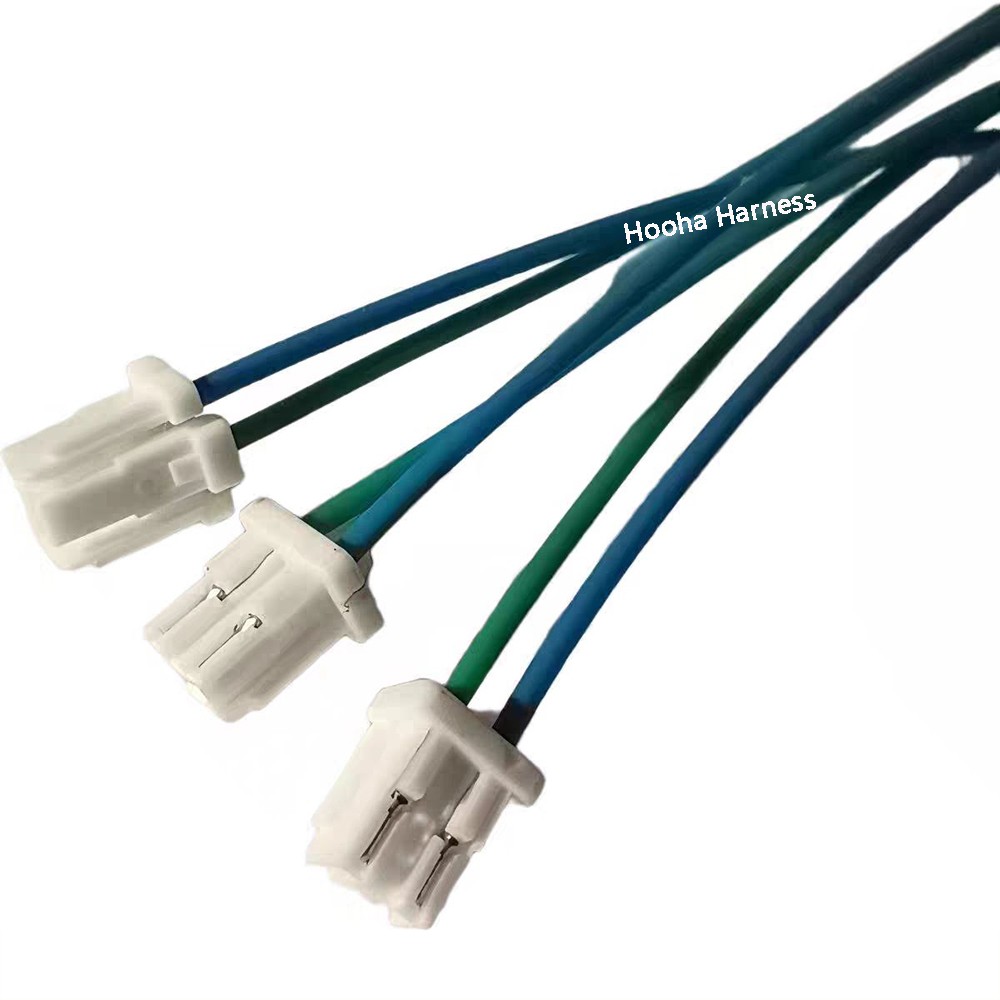

JST NSH Connector 2 Pin Wiring Harness

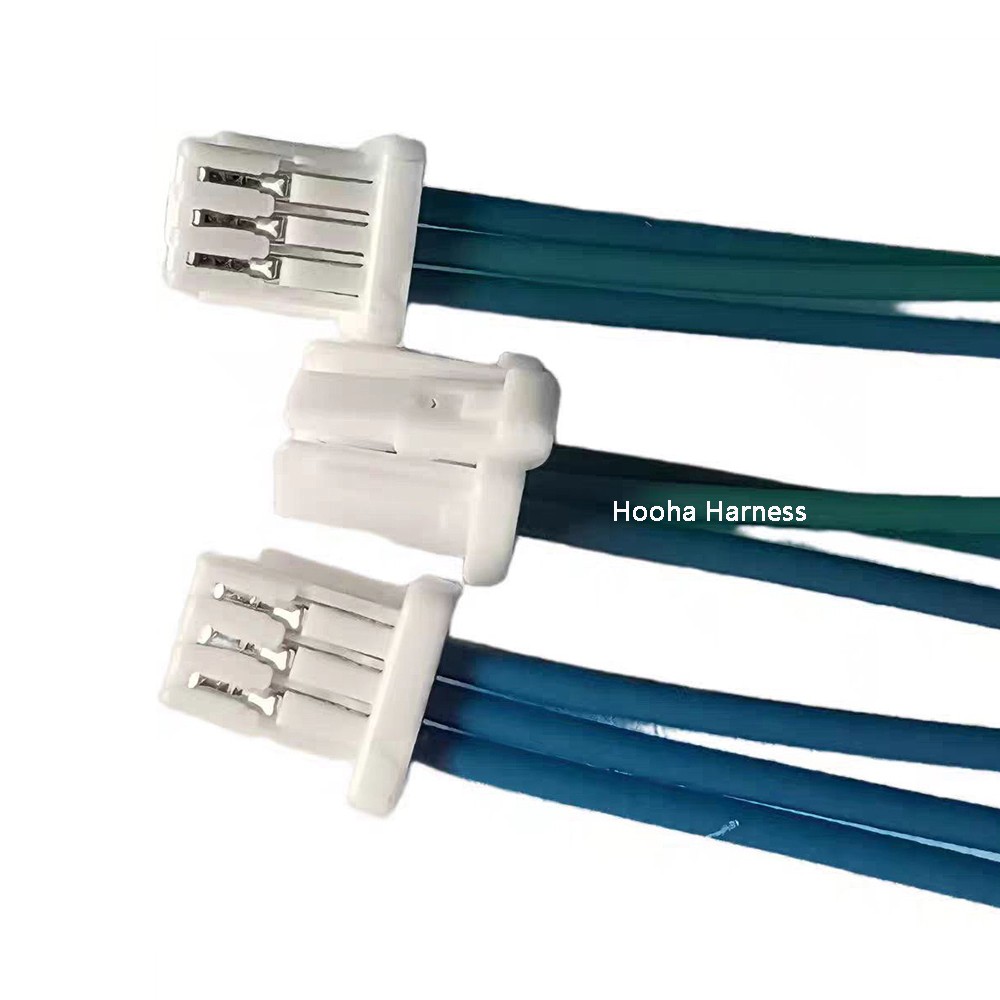

JST NSH Connector 3 Pin Wiring Harness

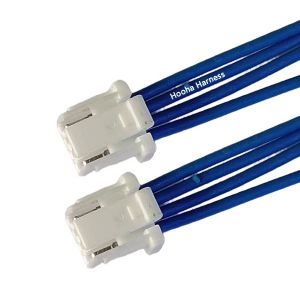

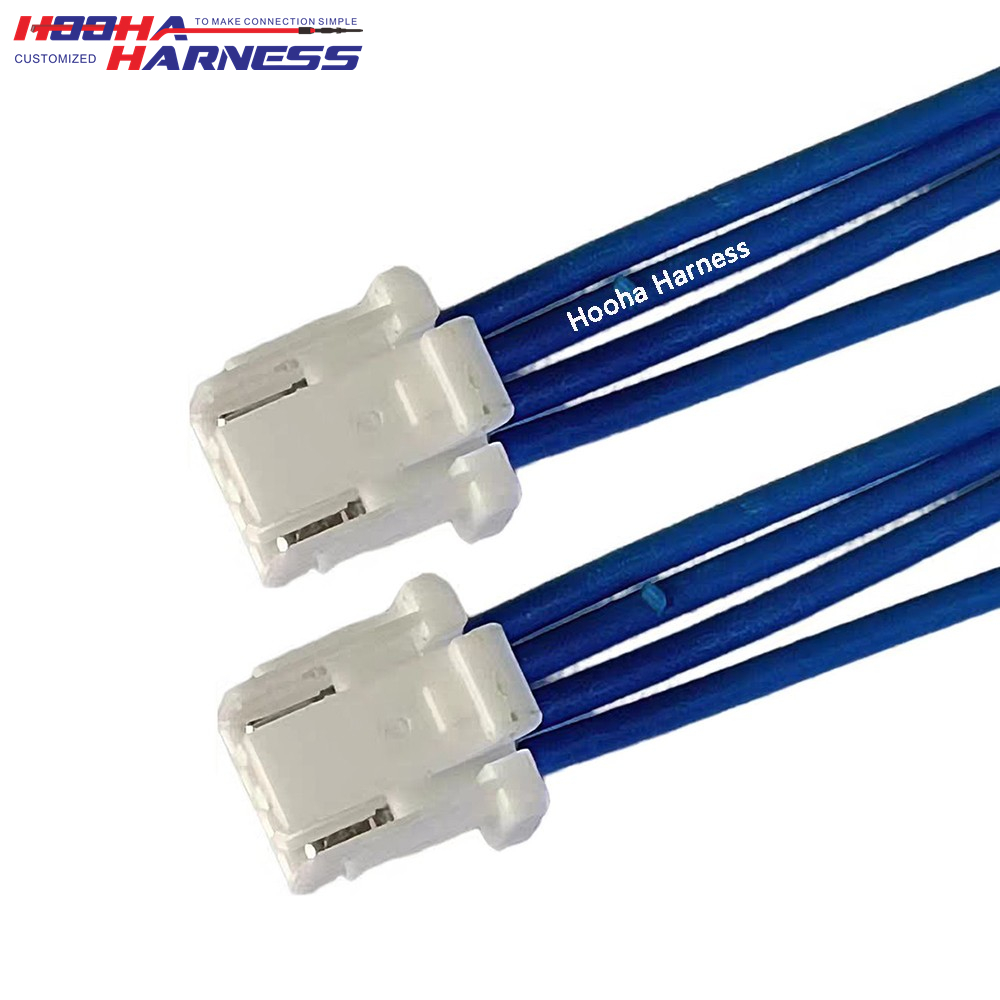

JST NSH Connector 4 Pin Wiring Harness

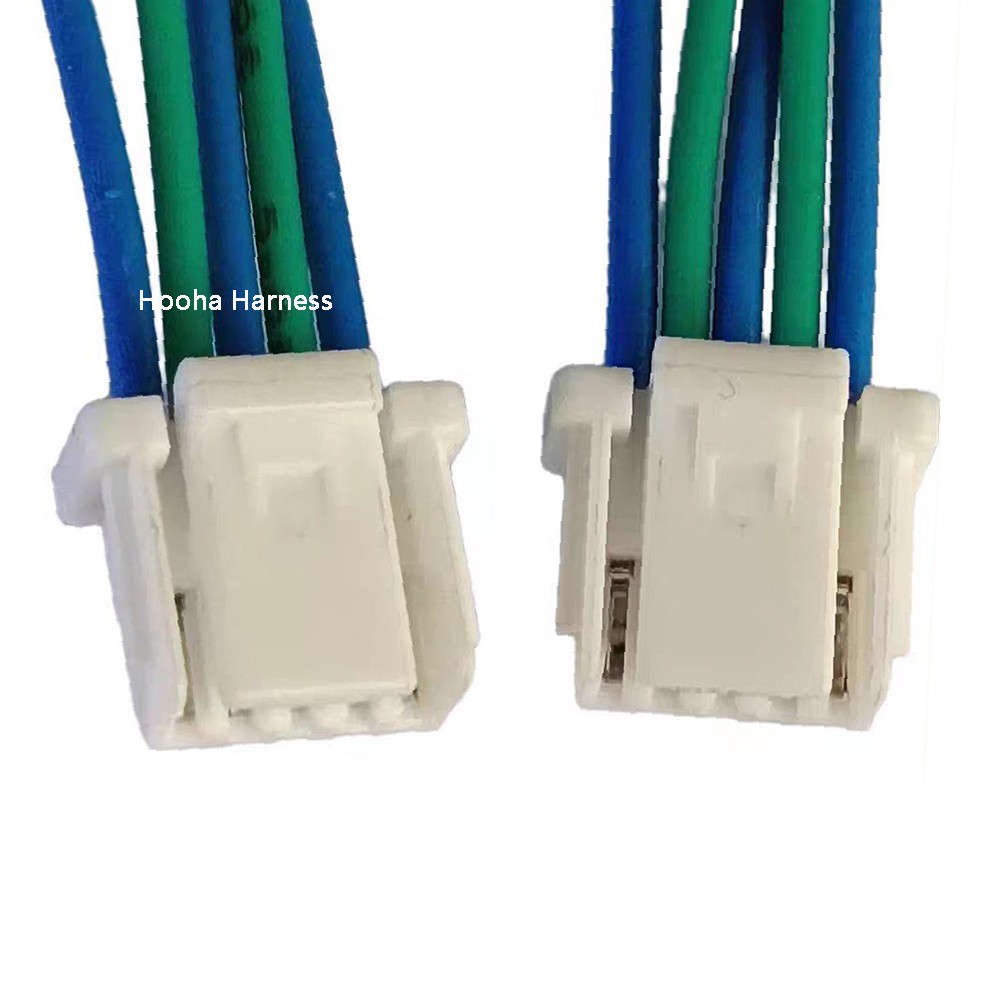

JST NSH Connector 5 Pin Wiring Harness

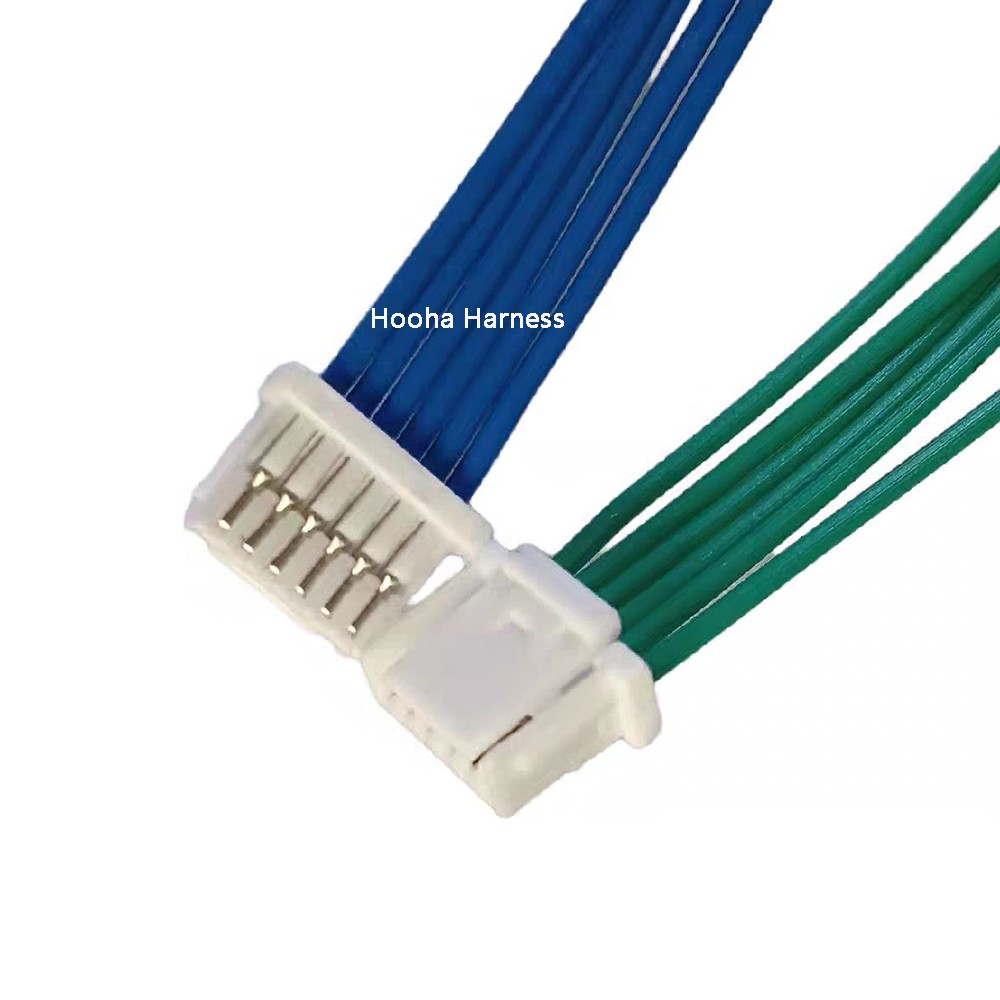

JST NSH Connector 6 Pin Wiring Harness

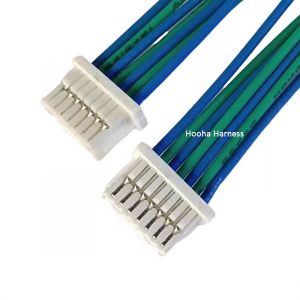

JST NSH Connector 7 Pin Wiring Harness

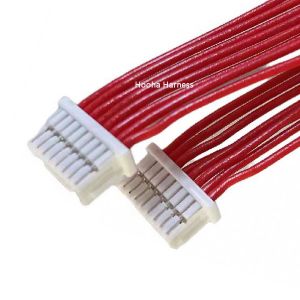

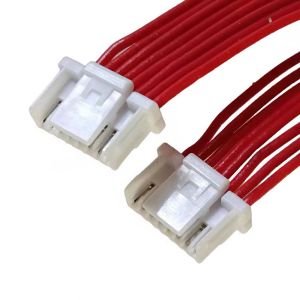

JST NSH Connector 8 Pin Wiring Harness
JST NSH Connector 8 Pin Wiring Harness

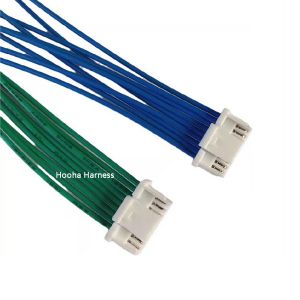

JST NSH Connector 9 Pin Wiring Harness

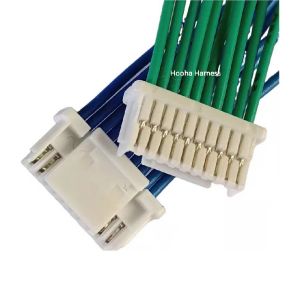

JST NSH Connector 10 Pin Wiring Harness

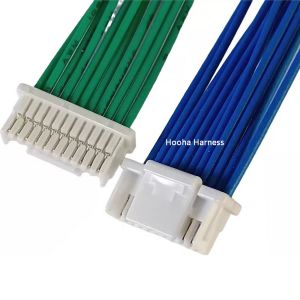

JST NSH Connector 11 Pin Wiring Harness

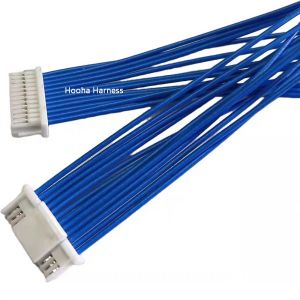

JST NSH Connector 12 Pin Wiring Harness
JST NSH Connector 13 Pin Wiring Harness

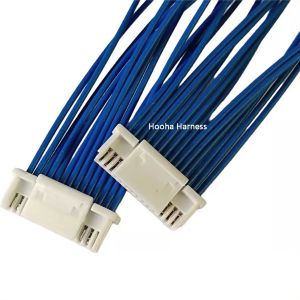

JST NSH Connector 14 Pin Wiring Harness

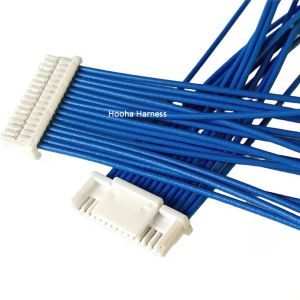

JST NSH Connector 15 Pin Wiring Harness
How to customize your wire harness?
If all these wires are not exactly the same as you needed, don't worry, you can customize them from us, below is the custom way.
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
