JST SM series 2.5mm pitch male female Wiring Harness Battery cable

JST SM Connector, Wire Harness Assembly Service

The SM series wire-to-wire connectors with a 2.5 mm pitch are designed to provide reliable performance in high-density and small current applications. These connectors feature high contact pressure, ensuring secure and stable connections even in demanding environments. The highly reliable housing construction enhances the durability of the connectors, making them suitable for long-term use.

One notable advantage of these connectors is their versatility in mounting on various panels, offering flexibility in different installation scenarios. Additionally, they incorporate an arm lock mechanism that further reinforces the connection between wires, preventing accidental disconnections.

With their compact size and efficient design, the SM series wire-to-wire connectors are ideal for applications where space is limited but reliability is crucial. Whether it's in automotive electronics, consumer electronics, or industrial equipment, these connectors excel at delivering consistent performance while maintaining a small footprint.

Their ability to handle small currents makes them well-suited for low-power devices such as sensors or LED lighting systems. Despite their compactness, these connectors ensure excellent electrical conductivity and signal integrity.

JST SM series Connector Specifications

• Connector pitch: 2.5mm
• Current rating: 3 A AC/DC max.
• Voltage rating: 250 V AC/DC max.
• Temperature range: -25'C to +85'C (including temperature rise in applying electrical current).
• Contact resistance: Initial value/ 10 mΩ max. After environmental tests/ 20 mΩ max.
• Insulation resistance: 500 M min.
• Withstanding voltage: 1,500 VAC/minute.
• Applicable wire: AWG #28 to #22 (0.08 to 0.33 mm²).
• Applicable panel thickness: 0.5 to 2.0 mm.

Key features of the JST SM series connector

1. Size and Profile: The connectors are known for their small size and low profile, making them ideal for applications where space is limited and a compact design is essential.
2. Secure Locking Mechanism: The SM series connectors are equipped with a secure locking mechanism, ensuring a reliable and robust connection, even in high-vibration environments.
3. Wire-to-Board and Wire-to-Wire Configurations: They are available in both wire-to-board and wire-to-wire configurations, offering flexibility in designing and building electrical connections.
4. Variety of Pin Counts: The connectors come in different pin counts, allowing designers to choose the appropriate connector based on their specific needs and requirements.

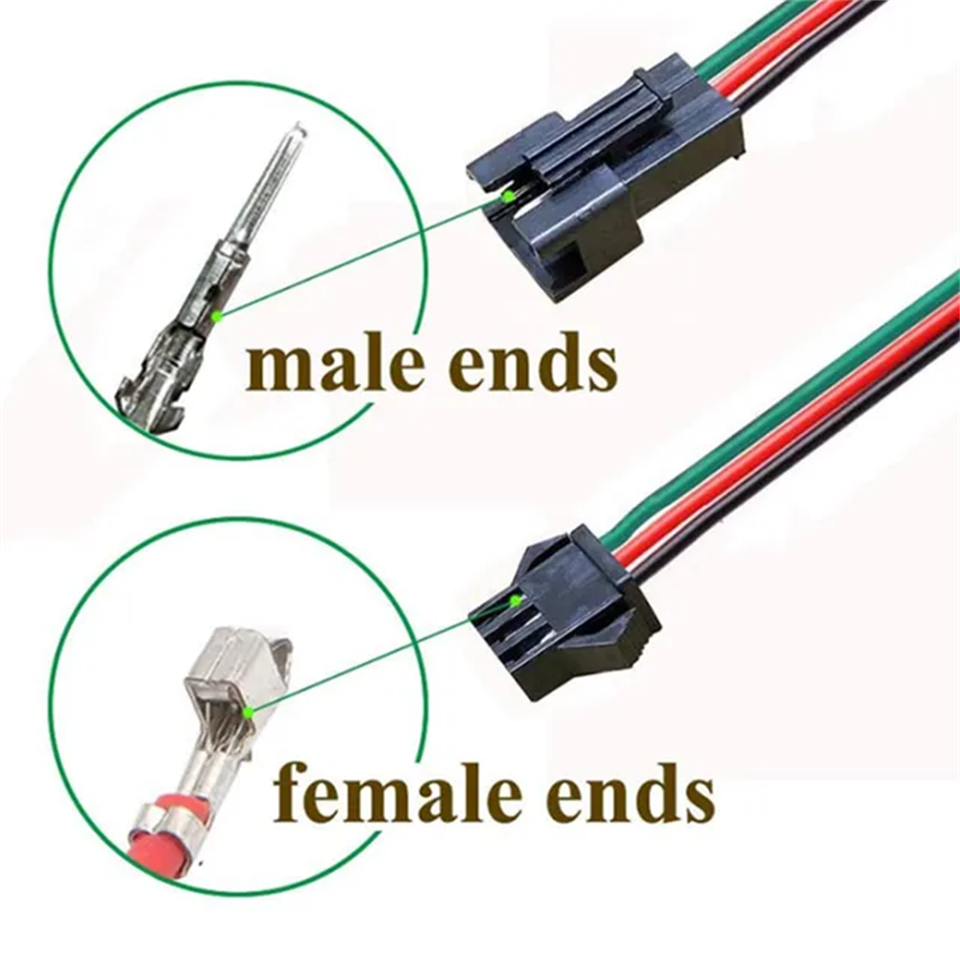

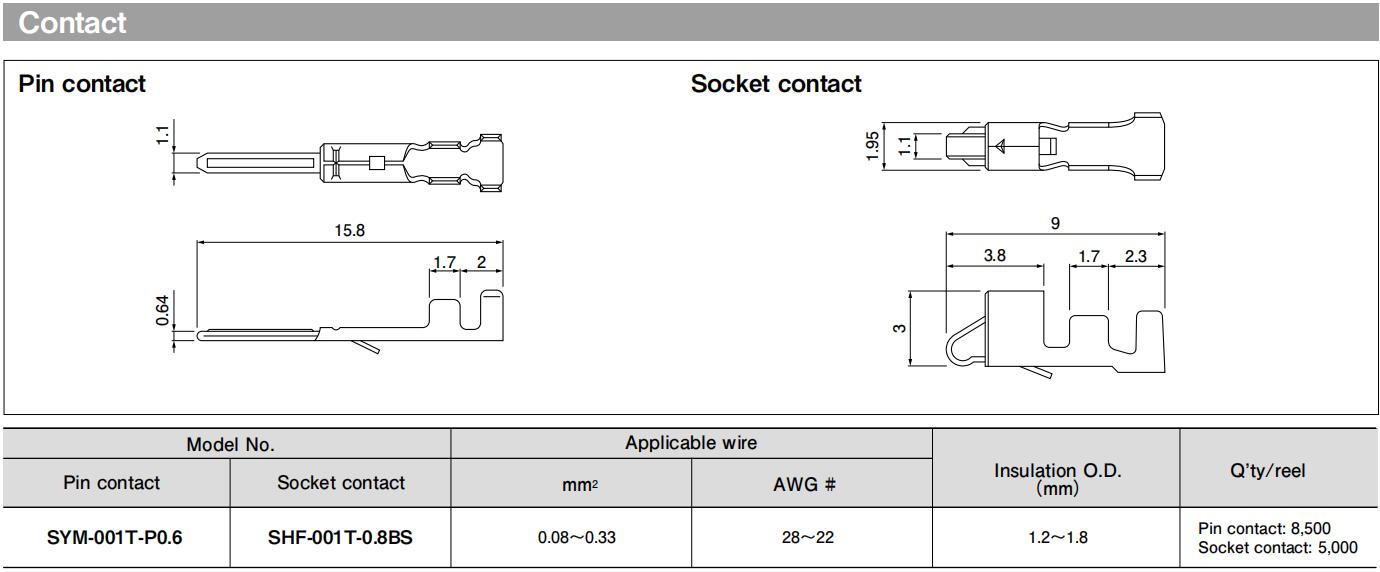

5. Crimp Contacts: The connectors use crimp contacts, providing an efficient and reliable method for terminating wires to the connector pins.
6. Current Rating: The SM series connectors typically have a moderate current-carrying capacity, suitable for many low to medium-power applications.
7. Application Areas: These connectors find applications in various industries, including consumer electronics, automotive, industrial machinery, medical devices, and more.

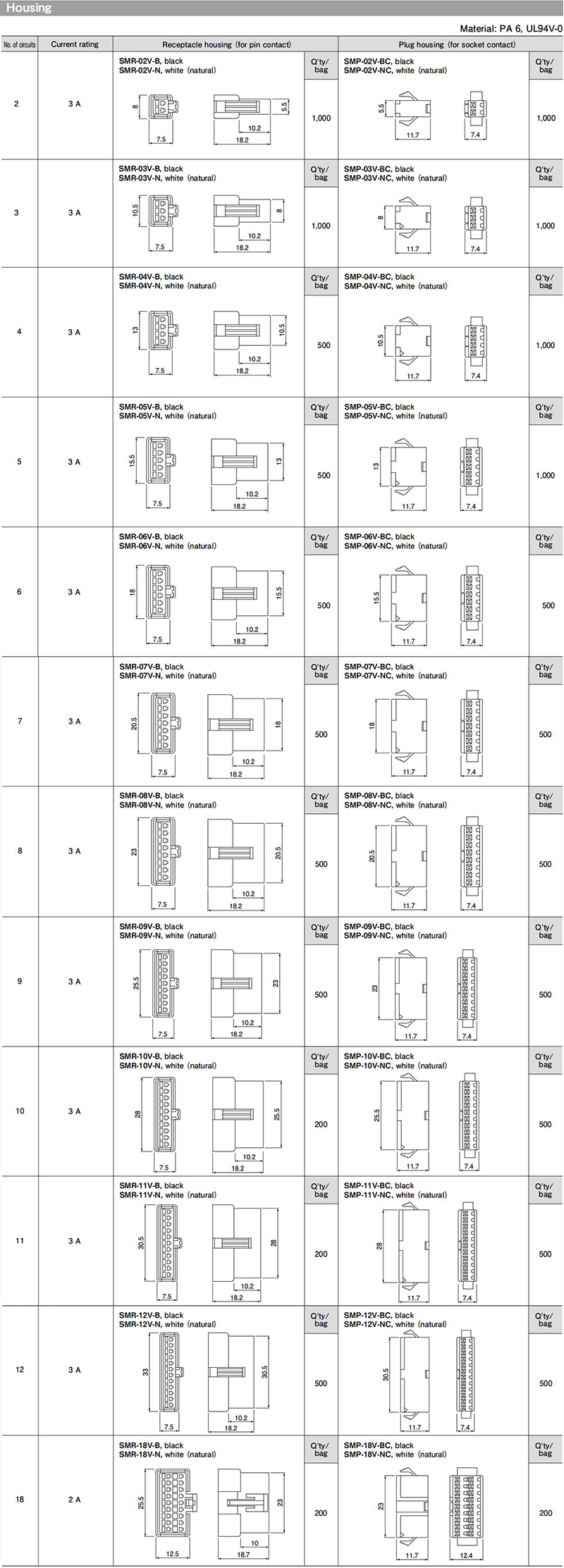

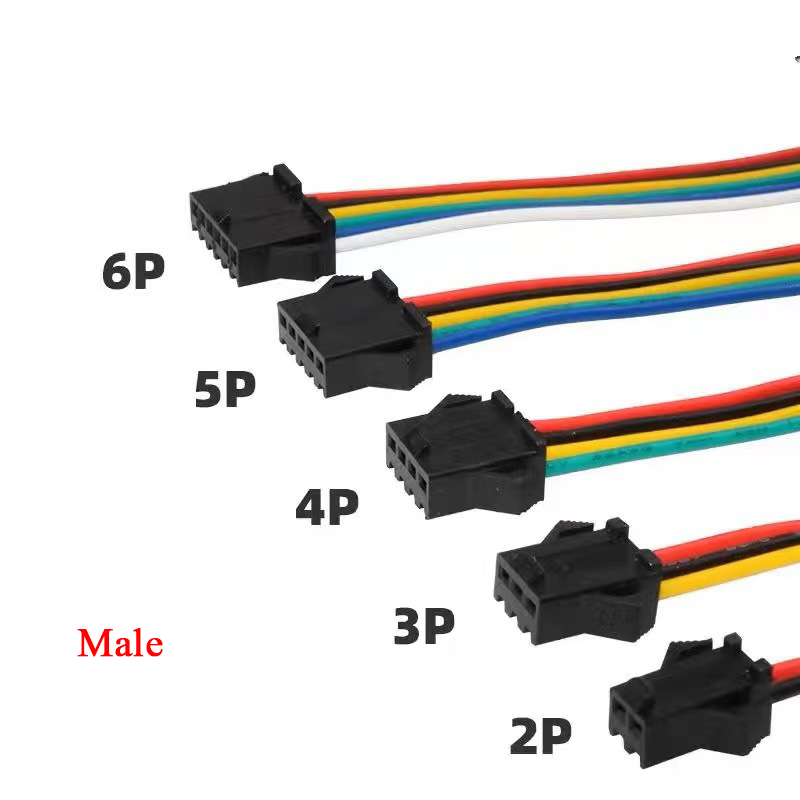

Connector Part Number and Size

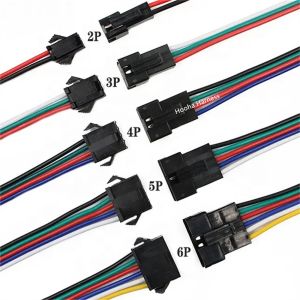

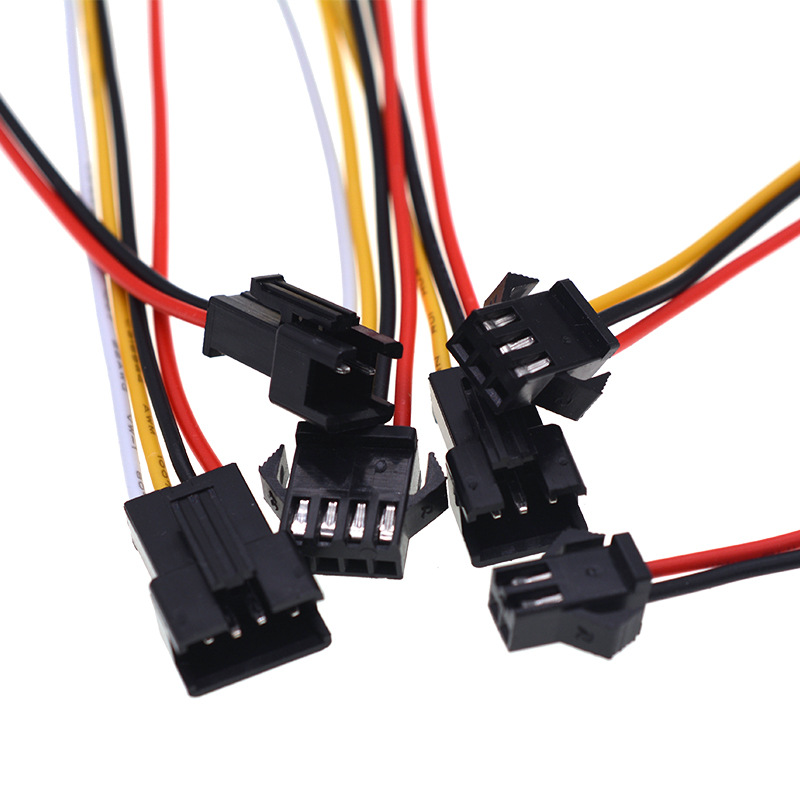

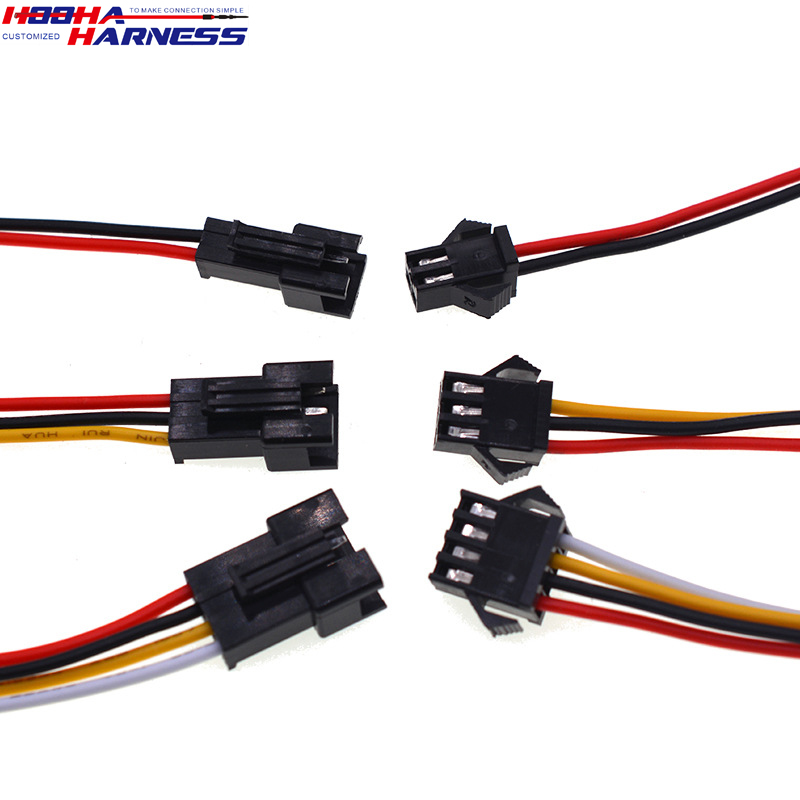

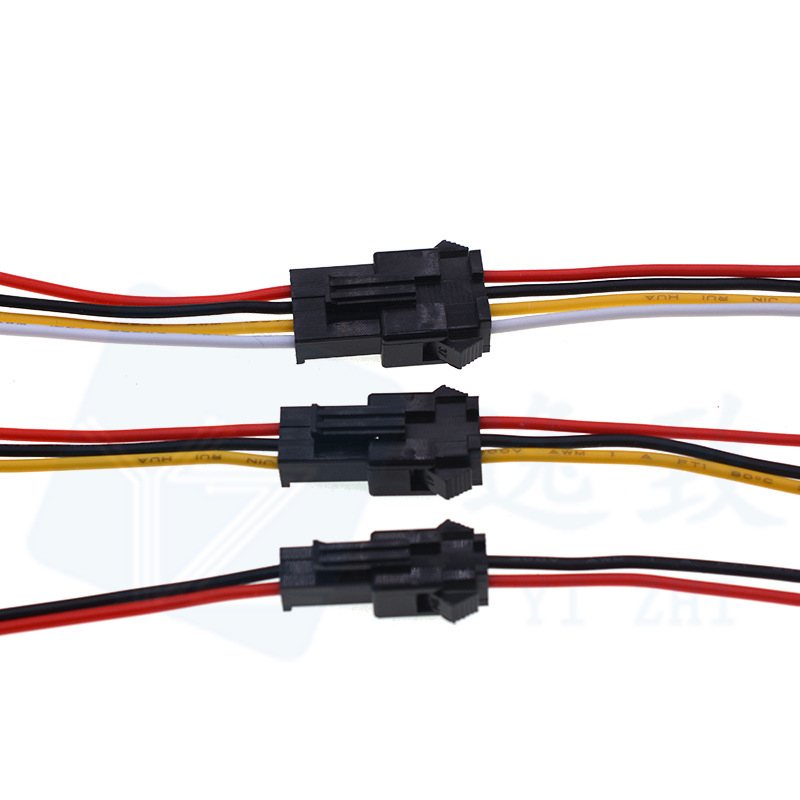

Looking for a reliable and versatile connector wire? Look no further than our JST SM2.5 series! With options ranging from 2-pin to 18-pin male-to-female connectors, as well as customizable wire-to-wire configurations, we have everything you need to get your project up and running smoothly.

These JST SM2.5 male and female connector wires harnesses are custom-designed with precision engineering to ensure a secure and stable connection every time. Whether you're working on an electronics project or simply need a dependable wiring solution, the JST SM2.5 series is the perfect choice.

So why wait? If you also require a similar custom wire harness assembly service, please provide us with your customized wire harness drawing or diagram. As a professional manufacturer of custom wire harnesses since 2001, we possess extensive experience in producing any type of wire harnesses. All our products are manufactured according to IPC/WHMA-A-620 standards and meet the IATF16949 standard for automotive wire harnesses.

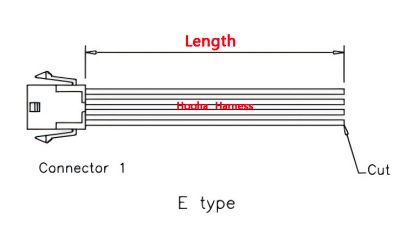

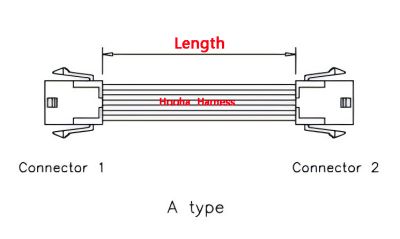

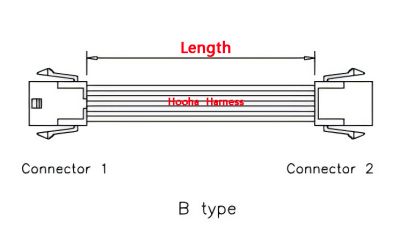

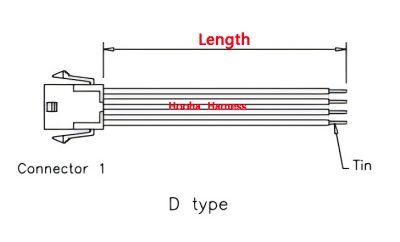

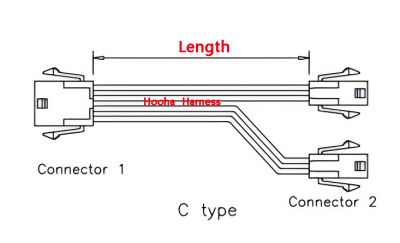

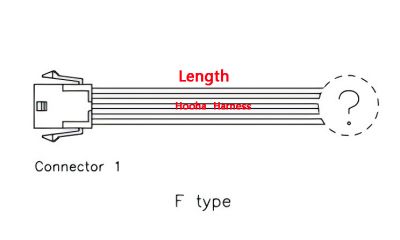

>>> What Type of JST SM Connector Wiring Harness We can be provided? <<<

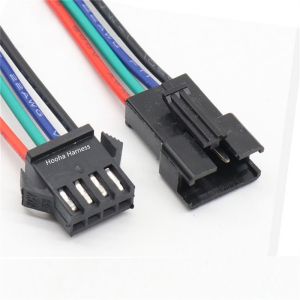

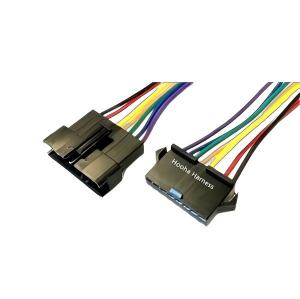

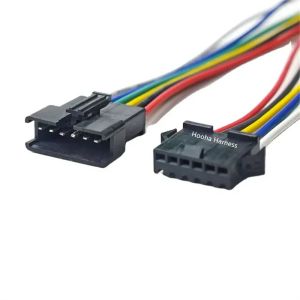

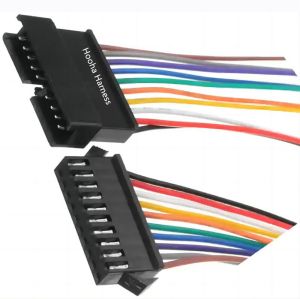

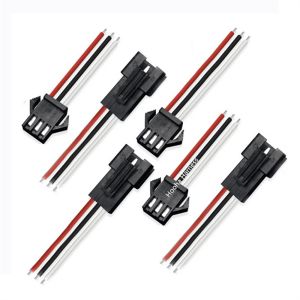

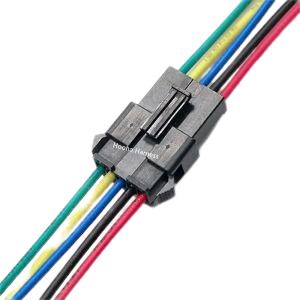

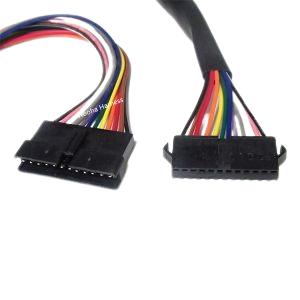

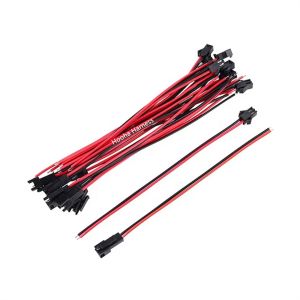

>>> Part of JST SM Connector Wiring Harness Cases <<<

How to customize your wire harness?

Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
