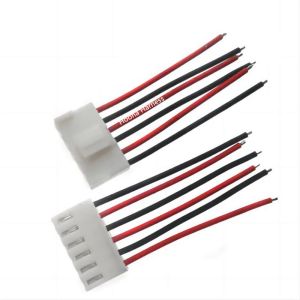

JST VH series connector VHR-6N custom wire harness assembly

JST VH series Connector, Custom Wire Harness Assembly

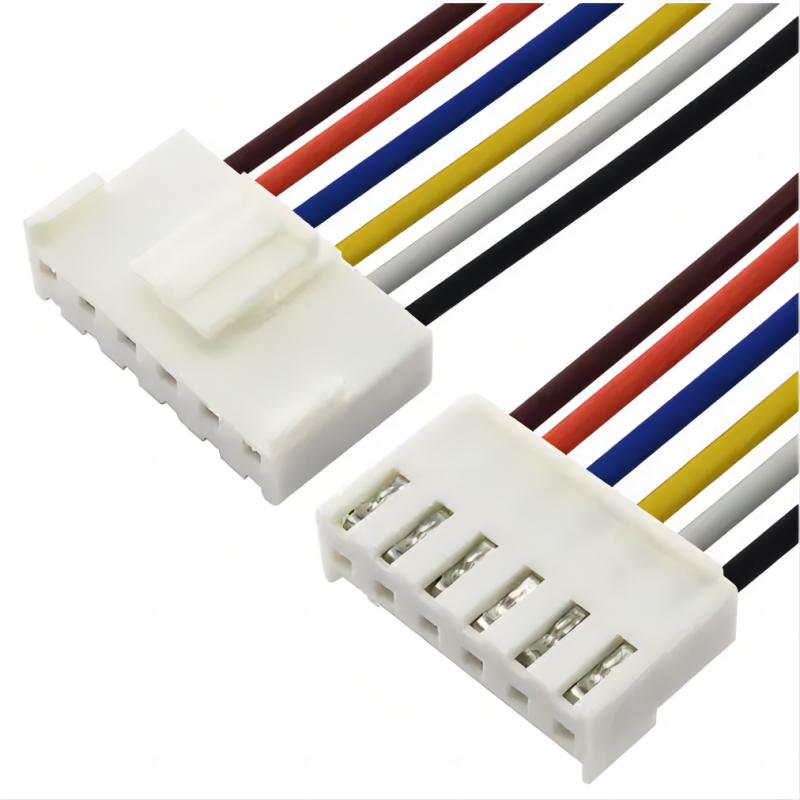

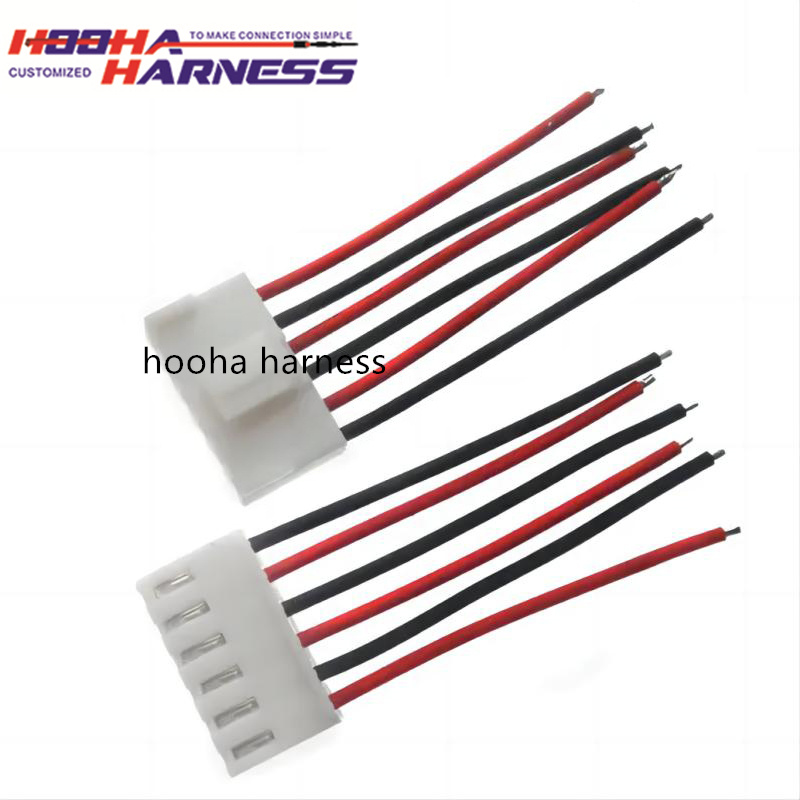

This is a custom wire harness that has been specifically designed to meet the unique needs of a customer based in the United States. The wire harness has been customized for use in their PC board products and features a JST VH series connector with a 3.96mm pitch and 6-position connector, identified by part number VHR-6N.

The custom wire harness assembly boasts exceptional reliability and durability, making it an ideal choice for use in consumer electronic products where signal, power supply, and output circuits are required. With its large current carrying capacity, this small yet field-proven connector is capable of handling even the most demanding applications.

Find more JST Connectors.

The high features of our product are truly exceptional and have been proven time and time again. it has proven box contact ensures that your connections are secure and reliable, giving you peace of mind when it comes to important data transfers.

In addition, it is a compact connector that boasts a large capacity, allowing you to transfer more data at once without sacrificing speed or efficiency. This means that you can get more done in less time, making your workday more productive than ever before.

But perhaps the most impressive feature of all is the secure contact and mounting easy. With this innovative technology, you can rest assured that your device will stay firmly in place no matter what challenges come its way. Whether you're on the go or working from home, our product has got you covered.

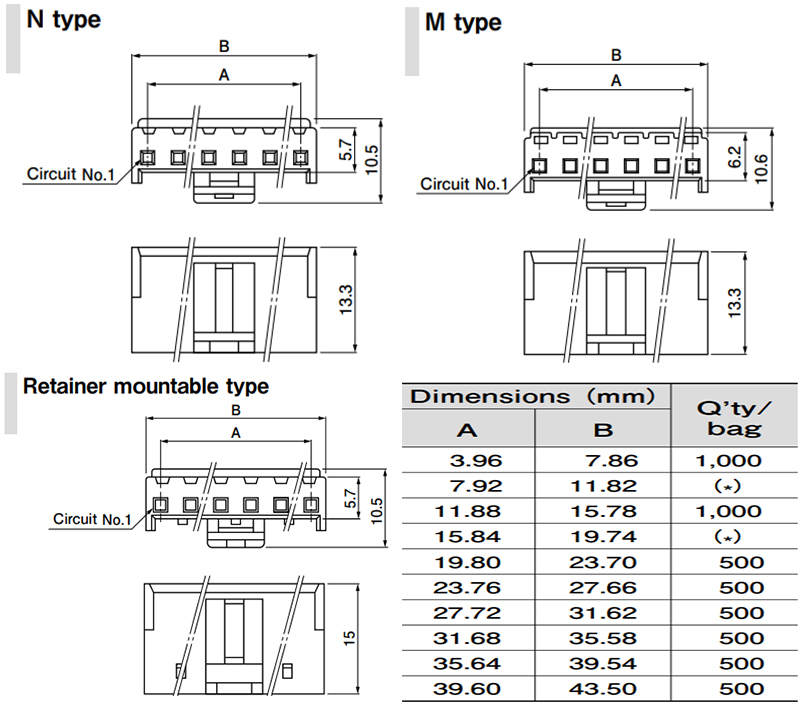

JST VH series connector features

The JST VH series connector is a specific type of connector manufactured by JST Corporation. Here are some general features and specifications of the JST VH series connector:

• Wire-to-Board Connection

The JST VH series connector is commonly used for wire-to-board connections, allowing you to connect wires to a printed circuit board (PCB) or other electrical components.

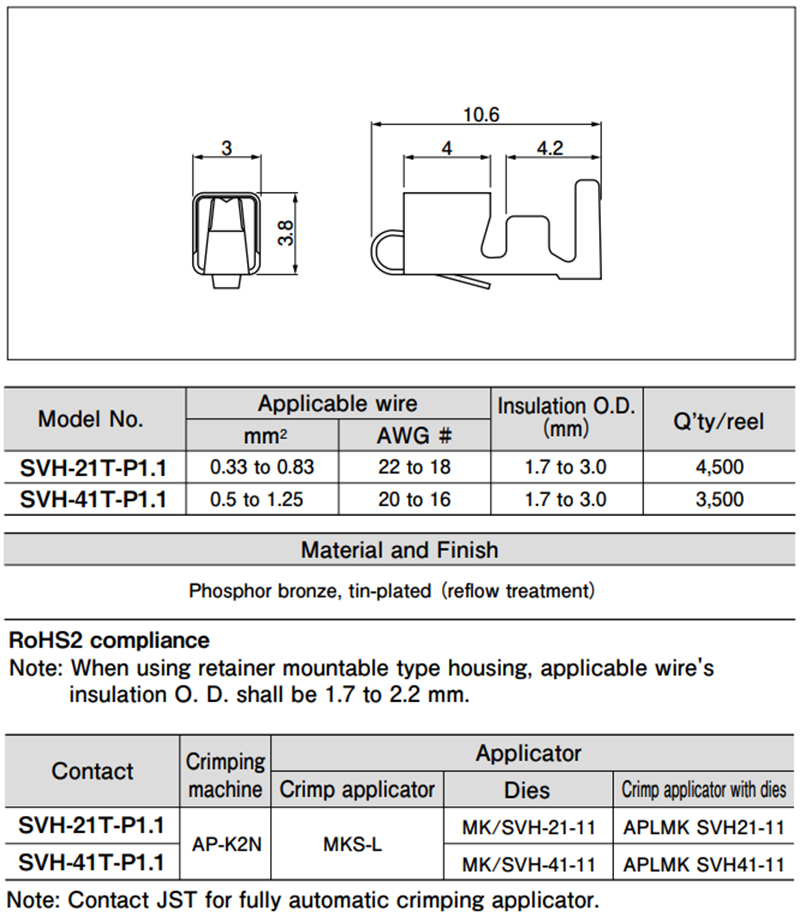

• Crimp Contacts

This connector series typically utilizes crimp contacts, which are small metal pins that can be crimped onto the end of wires for secure and reliable electrical connections.

• High Current Capacity

The JST VH series connectors are designed to handle high current ratings, making them suitable for power transmission applications.

• Secure Connection

The connector features a locking mechanism to ensure a secure connection and prevent accidental disconnection. This locking mechanism provides additional stability and reliability to the connection.

• Variety of Circuits

The JST VH series connectors are available in various configurations, offering multiple circuits to accommodate different signal or power requirements. The number of circuits can vary depending on the specific model within the series.

• Compact Design

The connector is designed to be compact, helping to save space and provide a neat and organized wiring arrangement.

• Polarization

The JST VH series connector incorporates a polarization feature, which ensures that the connector can only be mated in the correct orientation. This helps to prevent incorrect connections and potential damage to the components or circuits.

• RoHS Compliance

The JST VH series connectors are typically compliant with the Restriction of Hazardous Substances (RoHS) directive, which restricts the use of certain hazardous substances in electrical and electronic equipment.

In summary, Our team of experts worked closely with our client to ensure that every aspect of this custom-designed wire harness met their exact specifications. From selecting the right materials to ensuring precise manufacturing processes were followed throughout production, we left no stone unturned when delivering a high-quality product that exceeded our client's expectations.

Whether you're looking for a reliable wire harness solution for your consumer electronics products or need something tailored specifically to your unique requirements like this one from our US-based customer - we have the expertise and experience needed to deliver results that will exceed your expectations every time!

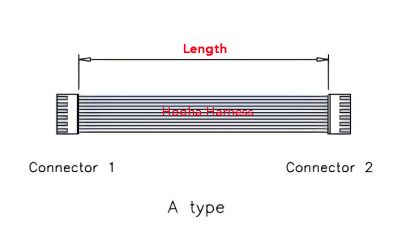

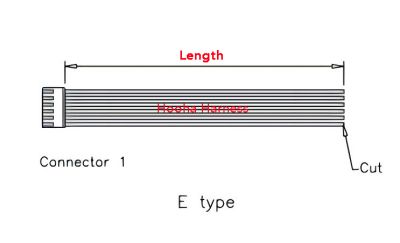

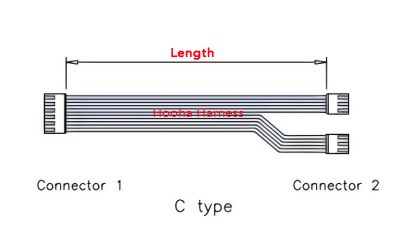

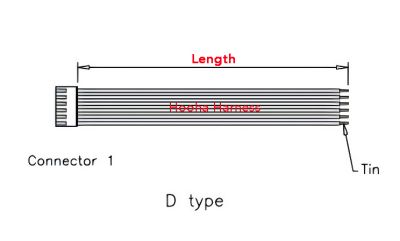

>>> What Type of JST VH Connector Wiring Harness Do We Provide? <<<

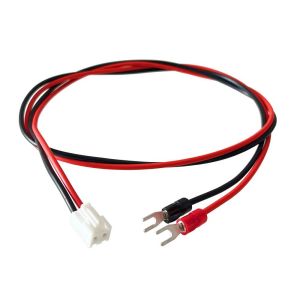

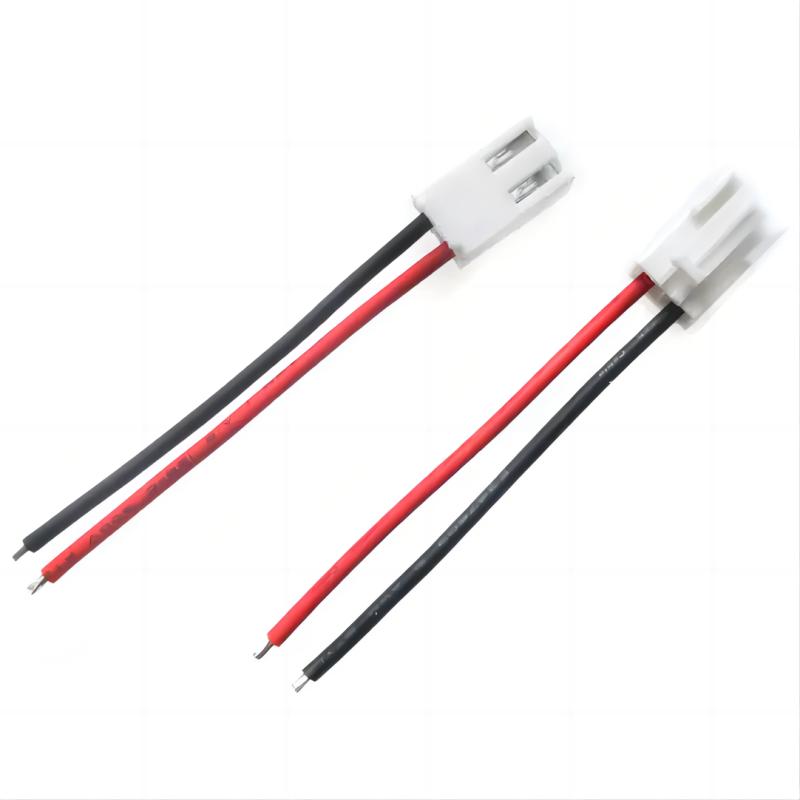

>>> JST VH Connector Wiring Harness Cases <<<

How to customize your wire harness?

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
