custom JST GH Connector, Custom Wire Harness Assembly
- Connector support from 2Pin to 15Pin.
- Header support from 2P to 15P.
- Terminal fit for 30AWG~26AWG.
- Current rating: 1.0A AC/DC (26AWG).
- Voltage rating: 50V AC/DC.
JST GH Connector wire assembly
The JST GH connector, with a pitch of 1.25mm, is commonly used in applications where space is limited due to its compact size and reliable performance. It provides a convenient solution for connecting various electronic components. The connector comes in different pin configurations ranging from 2 to 6 pins, making it ideal for use in tight spaces or when weight reduction is crucial. Its compact design allows easy integration into devices such as mobile phones, laptops, cameras, and other portable electronics. One example of the JST GH connector is the 6-pin version which offers multiple connections within a small footprint, making it useful for applications that require simultaneous transmission of multiple signals or power inputs.
Connector Specifications
- Current rating: 1.0 A AC/DC (AWG #26)
- Voltage rating: 50 V AC/DC
- Temperature range: -25℃to+85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/30 mΩ max.
- After environmental tests/50 mΩ max.
- Insulation resistance: 100 M min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Conductor size/AWG #30 to #26, Insulation O.D./0.76 to 1.0 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.

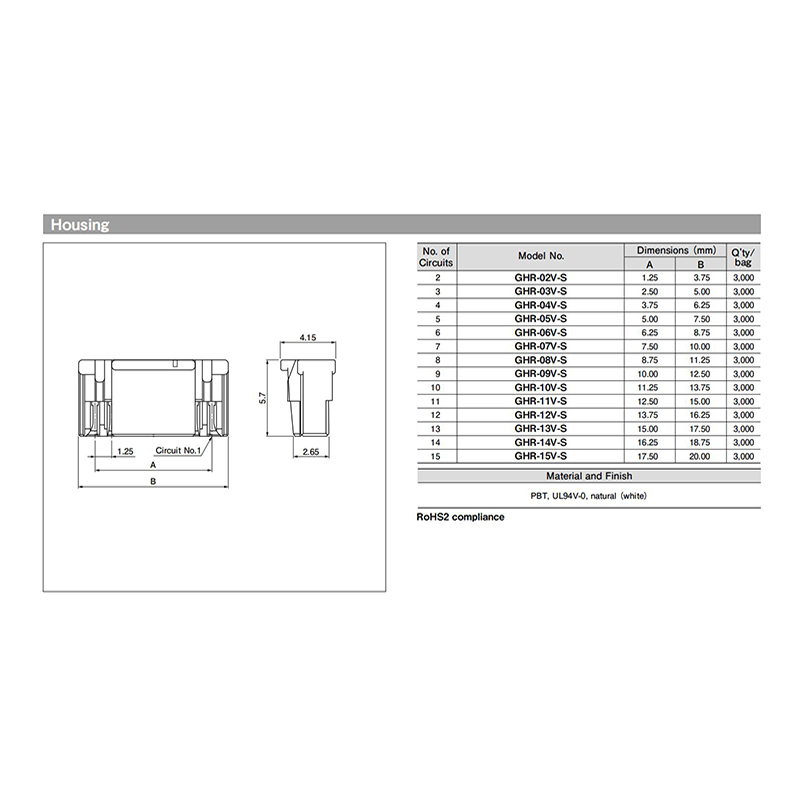

JST GH Connector Part Number Lists and Size

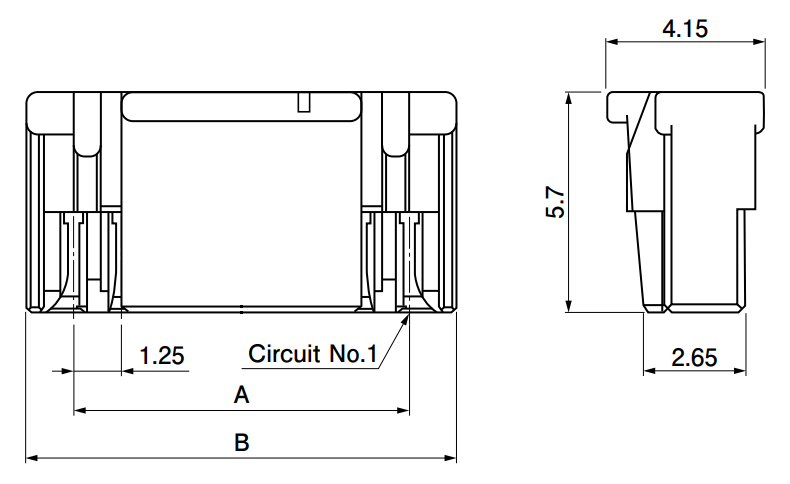

Housing

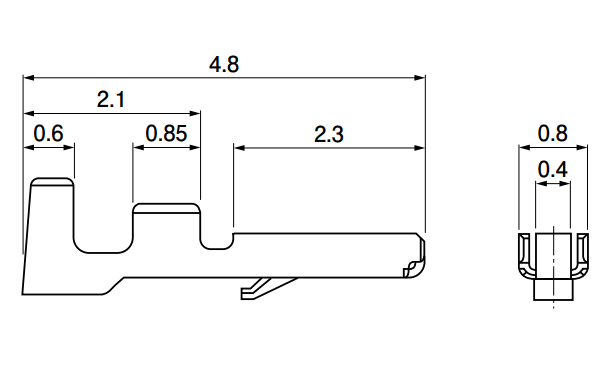

Terminals
| No.of Circuits | Model No. | Dimensions (mm) | |
| A | B | ||
| 2 | GHR-02V-S | 1.25 | 3.75 |
| 3 | GHR-03V-S | 2.50 | 5.00 |
| 4 | GHR-04V-S | 3.75 | 6.25 |
| 5 | GHR-05V-S | 5.00 | 7.50 |
| 6 | GHR-06V-S | 6.25 | 8.75 |
| 7 | GHR-07V-S | 7.50 | 10.00 |
| 8 | GHR-08V-S | 8.75 | 11.25 |
| 9 | GHR-09V-S | 10.00 | 12.50 |
| 10 | GHR-10V-S | 11.25 | 13.75 |
| 11 | GHR-11V-S | 12.50 | 15.00 |
| 12 | GHR-12V-S | 13.75 | 16.25 |
| 13 | GHR-13V-S | 15.00 | 17.50 |
| 14 | GHR-14V-S | 16.25 | 18.75 |
| 15 | GHR-15V-S | 17.50 | 20.00 |
What type of JST GH connector wire harness do we Make?
Both Connectors Same Direction
Both Connectors Opposite Direction
1 to 2 Splitter Wire Harness
Wire Tinned End
Wire Blunt End
Add Any Suitable Connectors
JST GH Connector Wire Harness Cases
GH 2P Connector Wiring
GH 3P Connector Wiring
GH 5P Connector Wiring
GH 5P Wiring Harness
GH 6P Connector Wiring

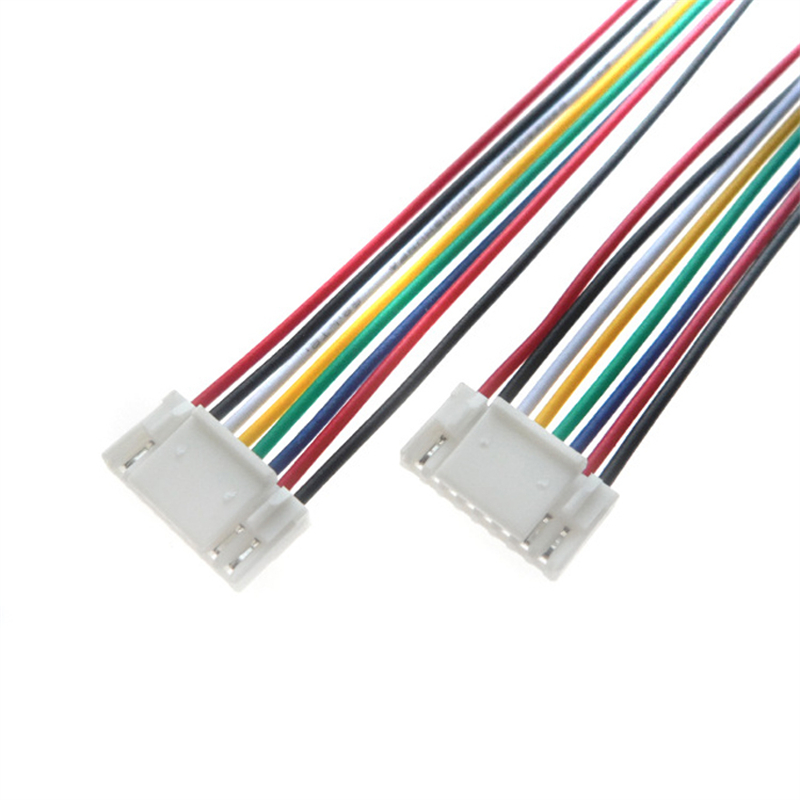

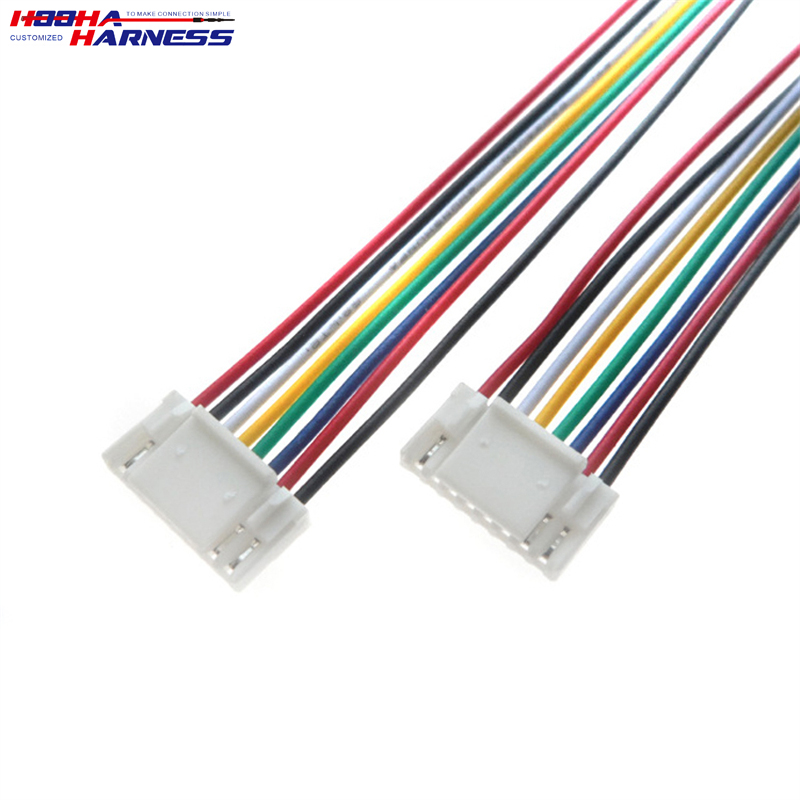

GH 8P Connector Wiring

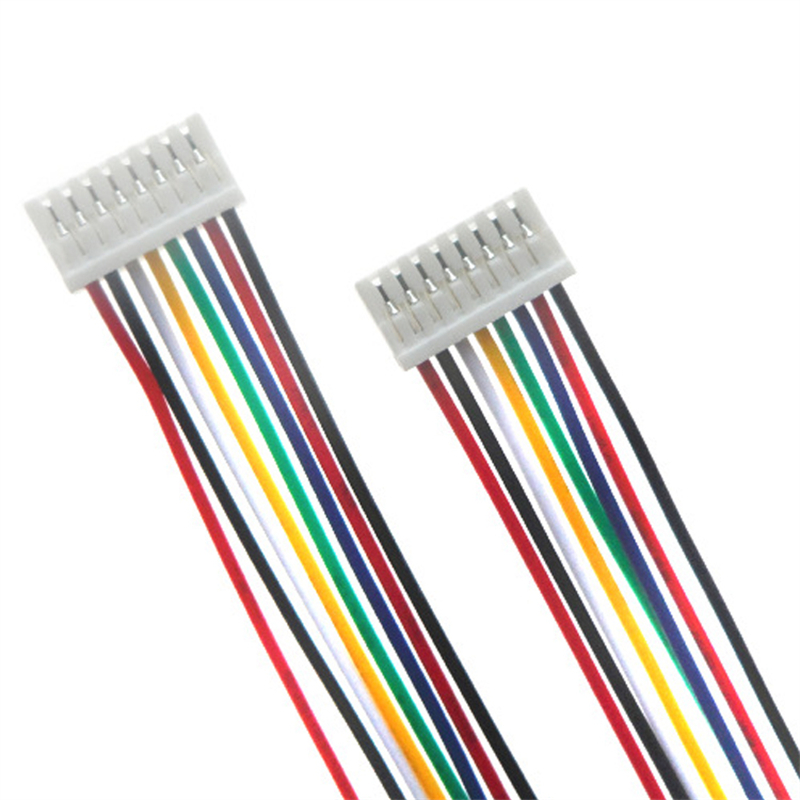

GH 8P Wiring Harness
GH 10P Connector Wiring
GH 12P Connector Wiring
How to customize your wire harness?
If all these wires are not exactly the same as you needed, don't worry, you can customize them from us, below is the custom way.
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
