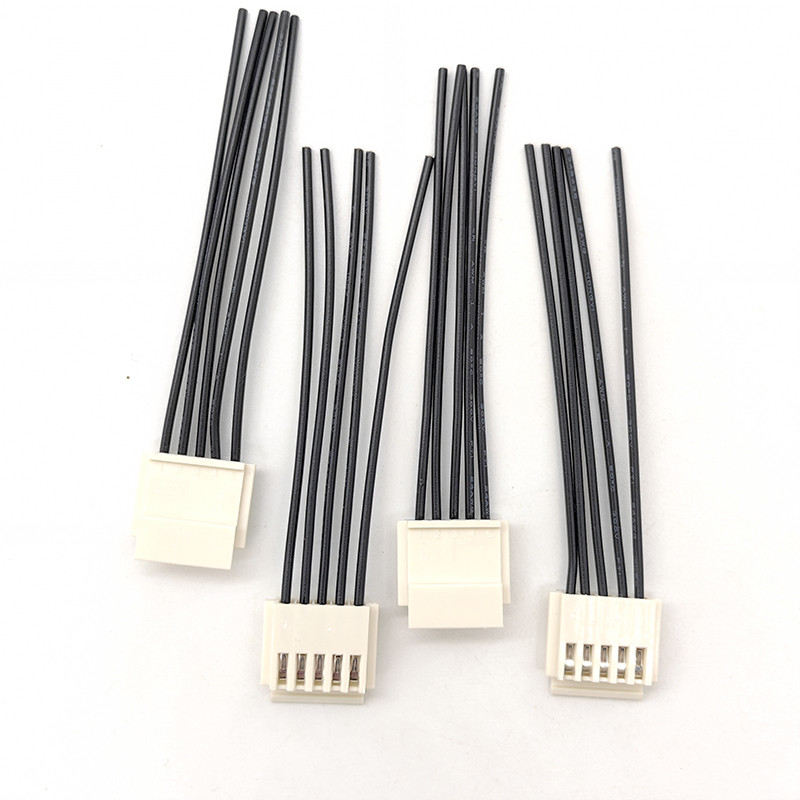

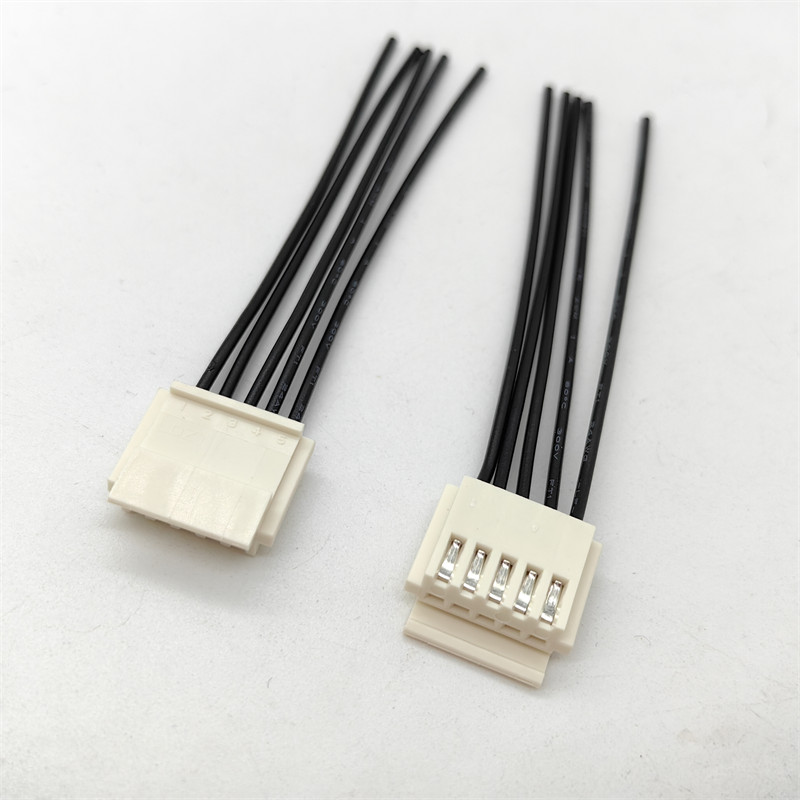

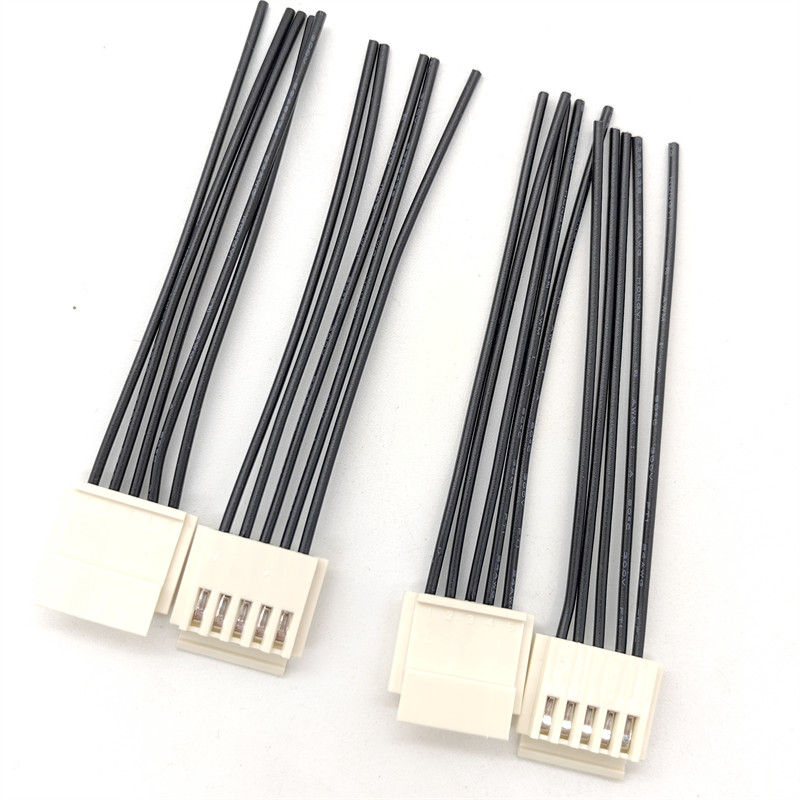

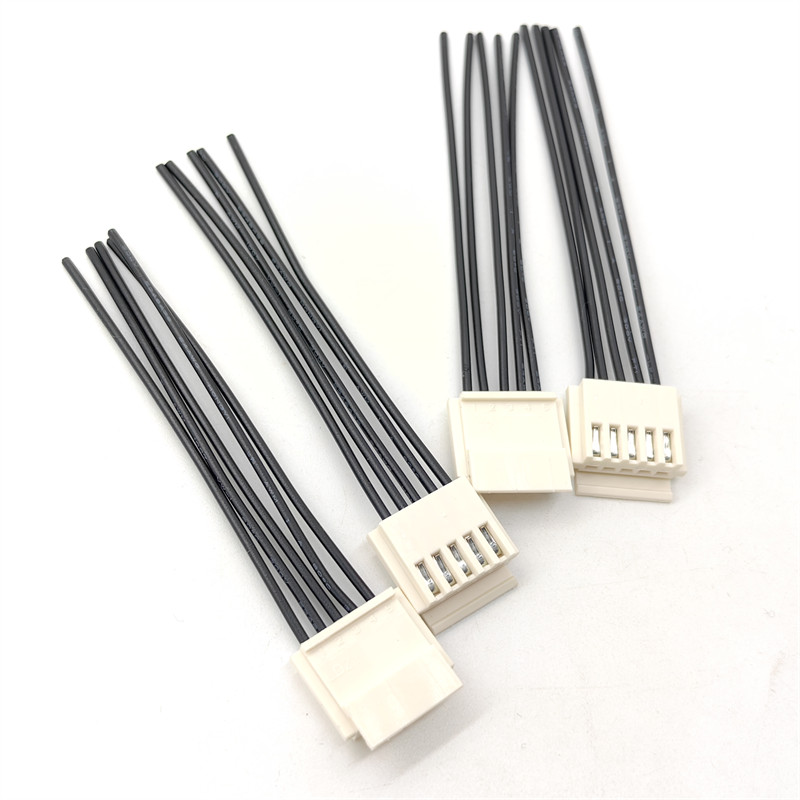

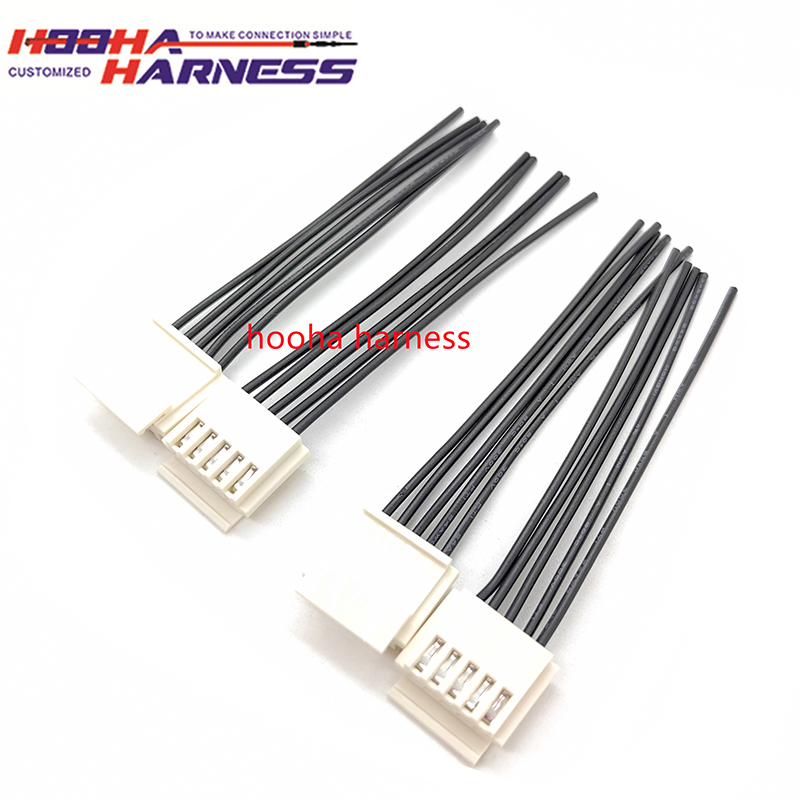

JST NH series connector 5pin housing H5P-SHF-AA custom wire harness
JST NH connector Specifications:
- Connector pitch: 2.5mm
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 250 V AC/DC
- Temperature range: -25'C to +85'C (including temperature rise in applying electrical current)
- Contact resistance: initial value/ 15 mΩ max. After environmental tests/ 20 mΩ max.
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG #30 to #22
- Applicable PC board thickness: 1.6 mm
This is a custom wire harness that has been specifically designed to meet the unique requirements of a customer based in the United States. The customer requires this custom wire harness for their high-density mounting on PC board products, which demands precision and reliability.
To ensure optimal performance, the wire harness features JST EH series connectors with a 2.5mm pitch and 5-position connector, part number H5P-SHF-AA. This particular configuration allows for seamless integration with printed circuit boards while maintaining excellent connectivity between wires.
The header of this wire harness is available in three different configurations: top, side, and bottom entry. This versatility enables users to connect wires either perpendicular or parallel to the print board depending on their specific needs.
Overall, this custom-designed wire harness represents an innovative solution that meets the exacting standards of our valued US-based client. With its superior quality and exceptional functionality, it's sure to provide reliable service for years to come!
Connector Features
Superior folded beam construction
(1) This sturdy construction withstands repeated stress. resists permanent deformation, and offers a very long service life.
(2) High reliability is ensured whether the contact pressure is high or low.
(3) This contact design has a large tolerance for variations in mating post thickness and resists deformation when pried
Double-sided contact
(1) The receptacle contact has a protected entry which eliminates contact damage caused by mismating.
(2) lt provides high contact pressure, is free from abnormal stress, and maintains continuity at all times.
(3) It has an extremely long service life due to its folded beam design.
Wide, sturdy post
The post has a large cross-sectional area to resist prying during insertion into printed circuit boards and mating with connector housings.
Molded-in header
The posts are molded into the insulator to provide stability when mounted on printed circuit boards. This also prevents reflux from entering the connector during soldering.
JST NH Series Connector Part Number
| No. of circuits | Model No. | No. of circuits | Model No. |
| 2 | H2P-SHF-AA | 14 | H14P-SHF-AA |
| 3 | H3P-SHF-AA | 15 | H15P-SHF-AA |
| 4 | H4P-SHF-AA | 16 | H16P-SHF-AA |
| 5 | H5P-SHF-AA | 17 | H17P-SHF-AA |
| 6 | H6P-SHF-AA | 18 | H18P-SHF-AA |
| 7 | H7P-SHF-AA | 19 | H19P-SHF-AA |
| 8 | H8P-SHF-AA | 20 | H20P-SHF-AA |
| 9 | H9P-SHF-AA | 21 | H21P-SHF-AA |
| 10 | H10P-SHF-AA | 22 | H22P-SHF-AA |
| 11 | H11P-SHF-AA | 23 | H23P-SHF-AA |
| 12 | H12P-SHF-AA | 24 | H24P-SHF-AA |
| 13 | H13P-SHF-AA | 25 | H25P-SHF-AA |
How do you customize your wire harness?
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
