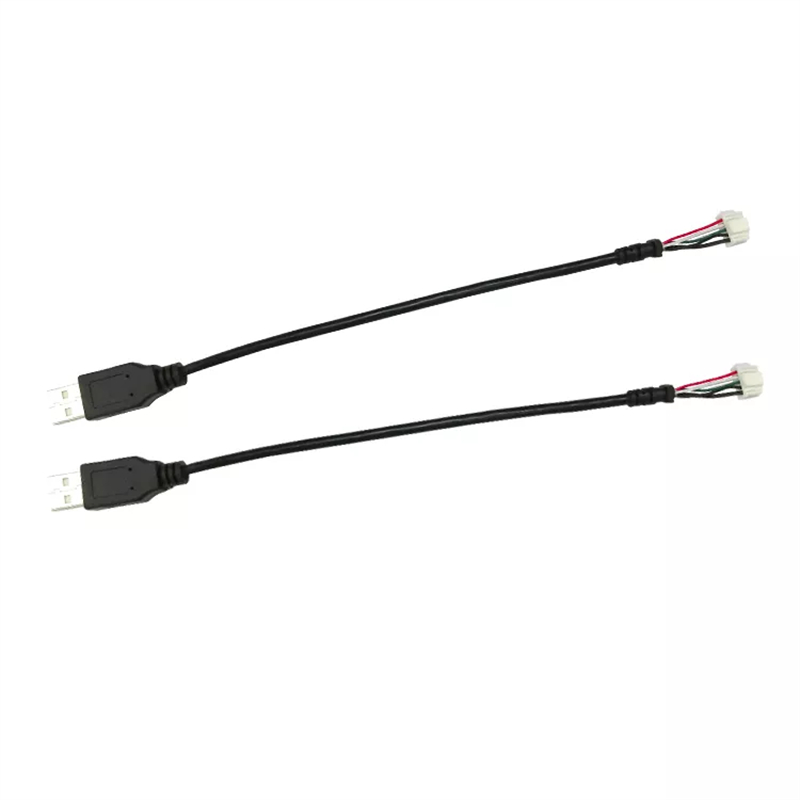

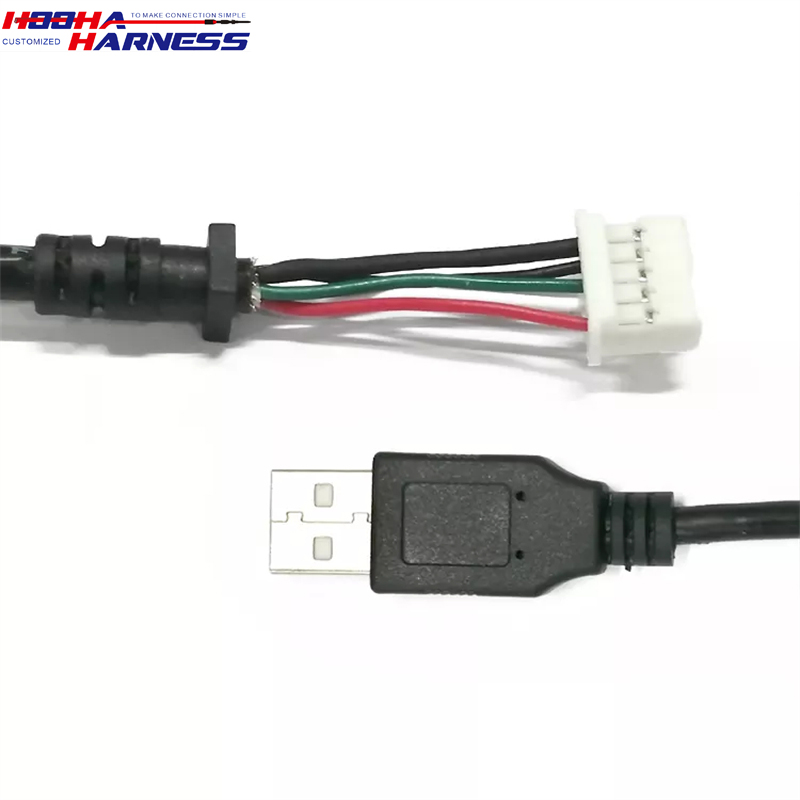

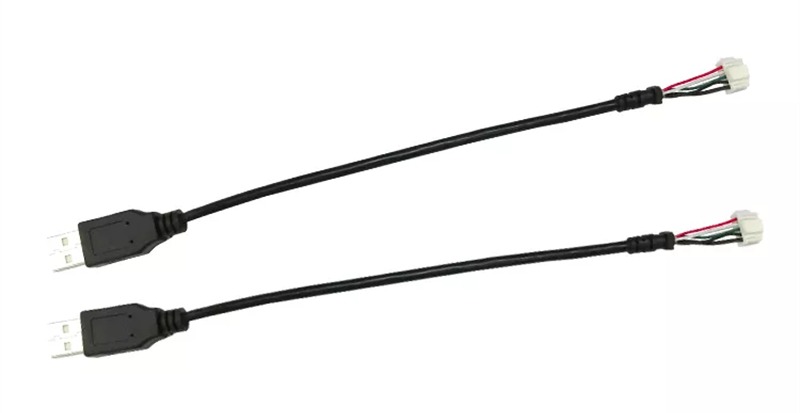

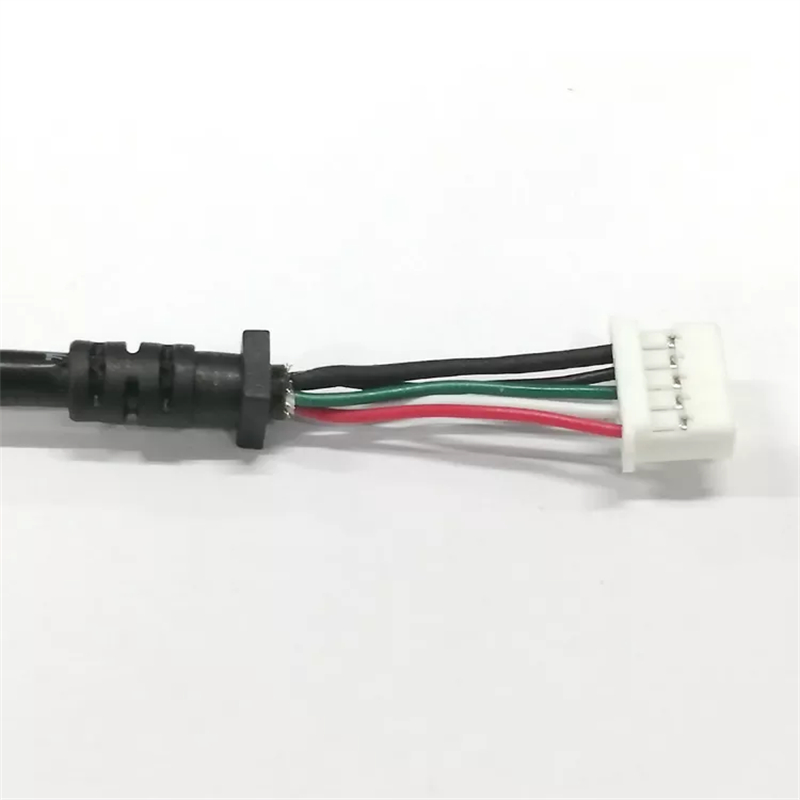

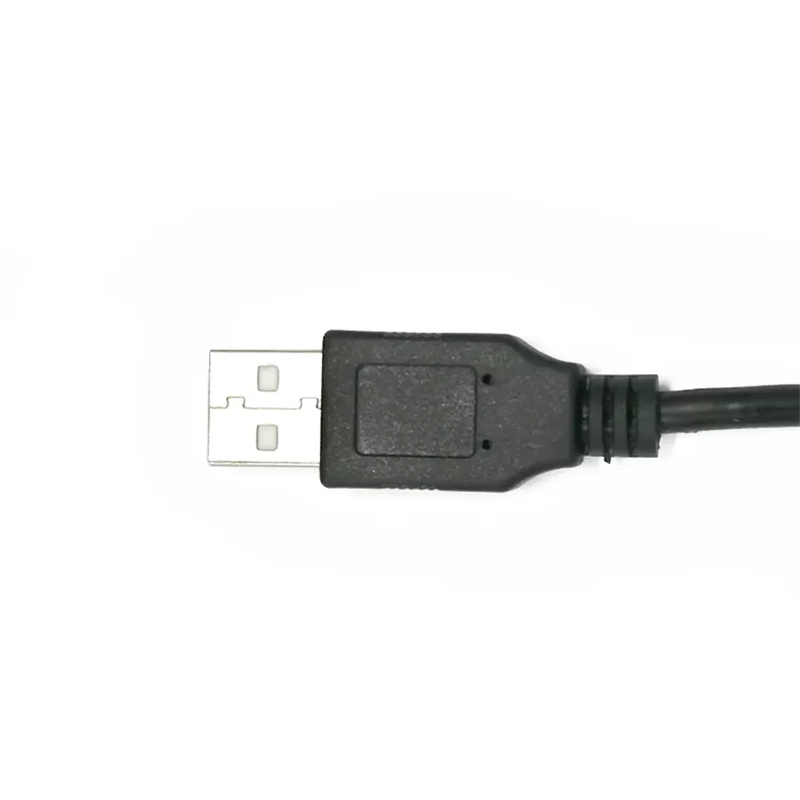

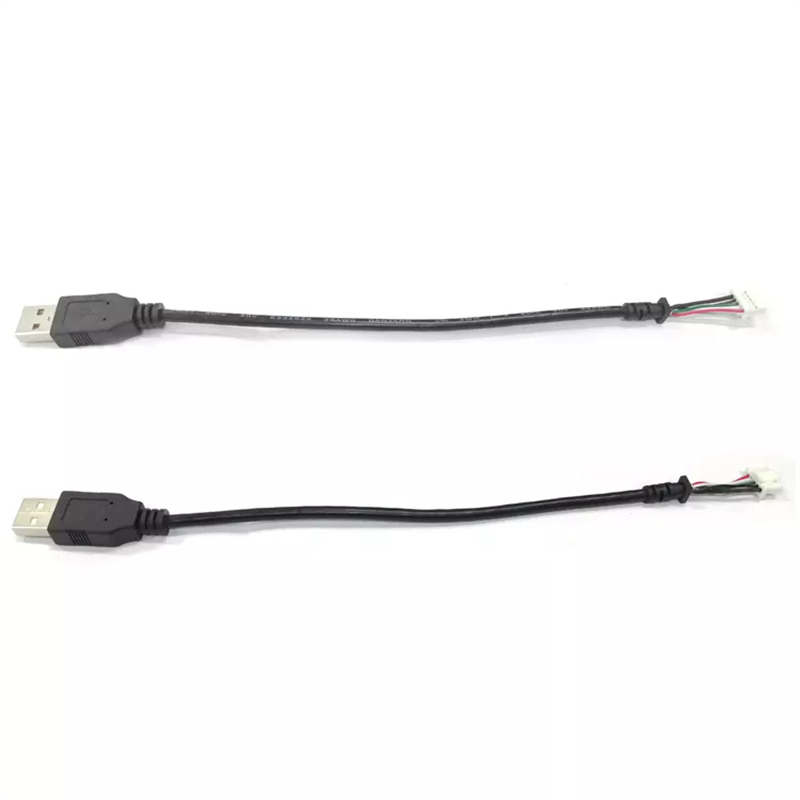

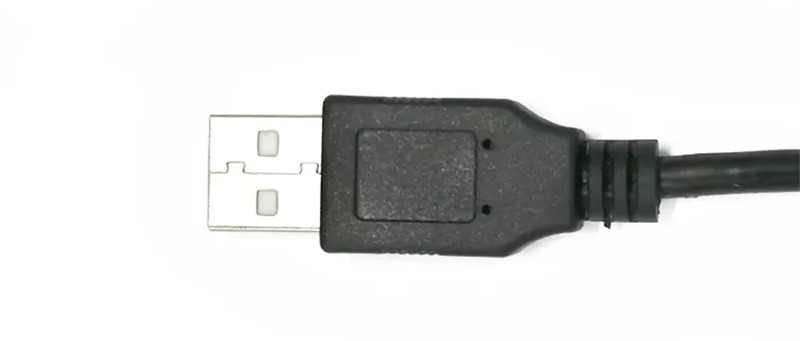

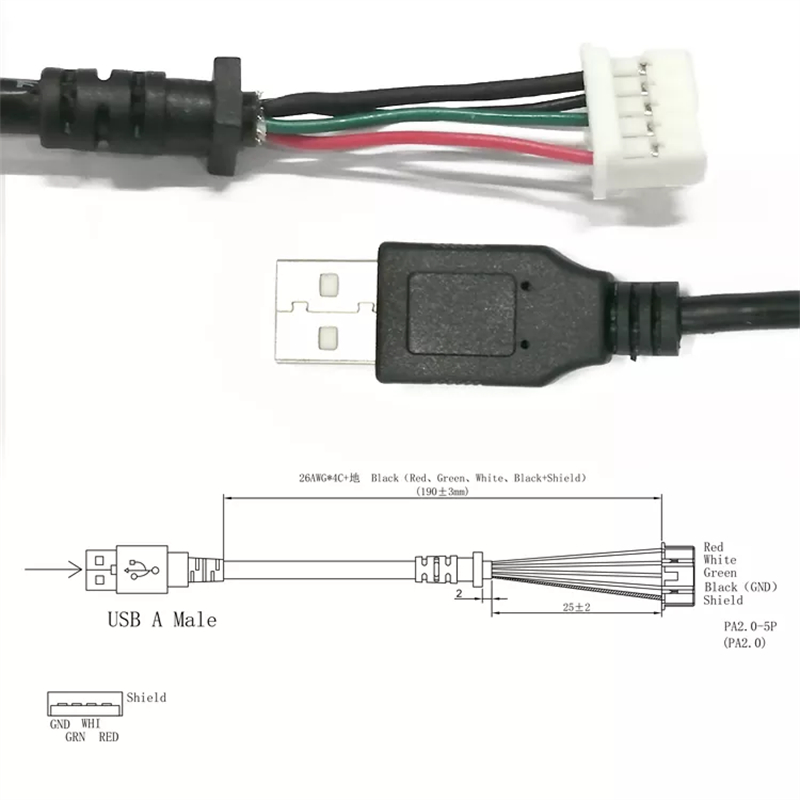

USB male to PAP-05V-S male 2725 AWG26 4C cable

JST PA Connectors  Features (Standard type)

• Current rating: 3 A AC/DC (AWG #22)
• Voltage rating: 250 V AC/DC
• Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 10 mΩ max. After environmental tests/ 20 mΩ max.
• Insulation resistance: Initial/ 1,000 MΩ min.
• Withstanding voltage: 800 VAC/minute
• Applicable wire: Conductor size/ AWG #28 to #22, Insulation O.D./ 0.76 to 1.5 mm
• Applicable PC board thickness: 1.6 mm
• Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.

JST PA Connector Part Number Lists

USB male to PAP-05V-S male 2725 AWG26 4C cable

This high-quality USB male to PAP-05V-S male 2725 AWG26 4C cable is a custom solution for connectivity needs. Whether you're looking to transfer data, charge your devices, or connect peripherals, this versatile cable has got you covered.

Crafted from premium materials and designed with precision engineering, this cable delivers exceptional performance and reliability. The sturdy construction ensures that it can withstand daily wear and tear while maintaining optimal functionality.

With its advanced technology and superior design, this USB male to PAP-05V-S male 2725 AWG26 4C cable provides lightning-fast data transfer speeds and seamless connectivity between your devices. So whether you're working on a project at home or in the office, you can trust this cable to deliver outstanding results every time.

So why wait? send your wire harness drawing to me for asking quote a price for reference if you have a similar custom wire harness need.

How to customize your wire harness?

Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if need(7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
