Product ID : HHDW1910191359
Product Attributes :

connector: JST reuivalents;

wire: UL2464 20AWG

length: 1150mm

corrugated pipe: 400mm

Product Description

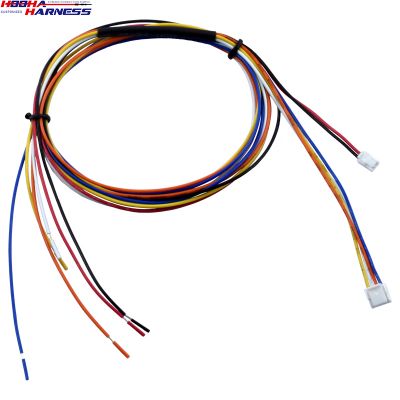

JST connector alternative parts custom wire assembly

UL style 2462 type 20AWG multicore wires are a reliable and high-quality option for various electrical applications. These wires boast an impressive set of specifications that make them stand out from the competition.

Firstly, the conductor is made up of multiple tinned copper wires that are stranded together to provide excellent conductivity and durability. This ensures that the wire can handle high levels of current without overheating or breaking down.

Secondly, the insulation material used in these wires is common heat-resistant PVC insulation. This provides protection against heat damage and helps to prevent electrical shorts or other issues caused by exposure to extreme temperatures.

Thirdly, these wires feature aluminum foil covering on either one side or both sides. This provides additional protection against electromagnetic interference (EMI) and radio frequency interference (RFI), which can cause signal distortion or loss in electronic devices.

Fourthly, braiding with copper wire is used for shielding purposes. The braided shield offers superior EMI/RFI protection compared to foil shields alone, making it ideal for use in environments where there may be a lot of electromagnetic interference present.

Fifthly, a heat resistant and flame retardant PVC sheath covers the entire wire assembly providing extra safety measures during operation at high temperatures while also preventing any potential fire hazards from occurring due to short circuits or other malfunctions.

Sixthly, these UL style 2462 type 20AWG multicore wires have been rated for use at temperatures up to 80 ℃ ensuring they remain stable even under harsh conditions such as those found in industrial settings where machinery generates significant amounts of heat.

Seventhly, they have been rated with a voltage capacity of up to 300V making them suitable for use across many different types of equipment including power supplies and control systems among others

Eighthly, these UL style 2462 type 20AWG multicore wires have passed VW-1 and FT1 vertical combustion tests indicating their ability not only withstand but also resist flames when exposed directly thus reducing risks associated with fires caused by faulty wiring

Finally yet importantly ,these UL style 2462 type 20AWG multicore wires meet all necessary safety regulations required by U.S standards ensuring users' peace-of-mind knowing they're using safe products designed specifically for their intended purpose.

If you are also require a similar custom wire harness assembly service, please provide us with your customized wire harness drawing or diagram. As a professional manufacturer of custom wire harnesses since 2001, we possess extensive experience in producing any type of wire harnesses. All our products are manufactured according to IPC/WHMA-A-620 standards and meet the IATF16949 standard for automotive wire harnesses.



Specifications:

Products name JST connector alternative parts custom wire assembly
Classification: custom wire harness
Application: sports equipment
Wire/cable style: UL2464
Wire/cable gauge 20AWG
Wire rated voltage: 300V
Wire rated temperature: 80℃
Wire/cable materials: PVC
Wire/cable length: 1150mm
Wire color: any
Accessory: ---
Mold tools: ---
Connector type: alternative
Connector materials: PA66
Warranty: 3-Years
Testing way: continuity test
Carton size: 45~30*25cm
Packing way: customize
RoHS  compliant: Yes
UL certificate: Yes
TS16949 certificate: Yes
IS09001 certificate: Yes
Sample Fee: free(1-3pcs, value under 5.00USD)
Sample lead time: within 7 days
Bulk lead time: 15~25 days
Supply capacity: 3000pcs per day
MOQ: 500pcs
OEM  service: Yes
Trade  term: EXW, FOB Shenzhen, EXPRESS
Payment    term: TT(30% deposit ,70% balance), Credit card.
Shipping way: Door  to Door(UPS/DHL/FedEx/TNT/EMS), By air, By ship
Port: Shenzhen, Guangzhou



Details:

custom cable harness

UL style 2462 type 20AWG multicore wires specs:

1. Conductor: stranded with multiple tinned copper wires

2. Insulation material: common heat-resistant PVC insulation

3. Covering: aluminum foil (single side or double side)

4. Shielding: braiding (copper wire braiding)

5. Sheath: heat resistant and flame retardant PVC sheath

6. Rated temperature: 80 ℃

7. Rated voltage: 300V

8. Combustion test: passing VW-1 and FT1 vertical combustion test

9. Safety regulation: UL758, can pass UL SF-2 test

10. Environmental protection: comply with the EU ROHS environmental protection directive, and pass the SGS test

11. Features: acid and alkali resistance, oil resistance, moisture resistance, mildew resistance, etc

12. Print label: AWM 2464 20awg VW-1 80 ℃ 300V C AWM I A 80 ℃ 300V FT1

13. Color: red, black, blue, white, yellow, green, purple, orange, gray, brown

14. Package: 610m / roll



Other related gauge cables:

ul 2464



Related products:

cable assembly



How to custom your own wire harness?

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if need(7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
