JST ZH series connector custom wire harness assembly
JST ZH series connector custom wire harness assembly JST ZH series connector custom wire harness assembly JST ZH series connector custom wire harness assembly JST ZH series connector custom wire harness assembly JST ZH series connector custom wire harness assembly

JST ZH series connector custom wire harness assembly

Product ID : HHDW13061902
Product Attributes :
  • Connector support from 2Pin to 13Pin.
  • Terminal fit for 32AWG~26AWG (OD: 0.5-1.1mm).
  • Header support from 2P to 13P.
  • Current rating: 1.0A AC/DC (26AWG).
  • Voltage rating: 50V AC/DC.

Product Description

JST ZH Connector, Custom Wire Harness Assembly



These are custom wire harnesses that have been specifically designed to meet the unique needs of a customer based in the United States. The wire harness is an essential component used in their printed circuit board products, and it features a JST ZH series connector with a 1.5mm pitch and from 2 to 13 positions.

One of the key features of this wire harness is its housing lances, which provide added stability and security during use. Additionally, the dimple at the center of each contact ensures positive contact and low resistance at all times, making it highly reliable even under challenging conditions.

The header on this custom-designed wire harness is fully shrouded, providing additional protection against damage or wear over time. This same shrouded header can also be used for the ZR insulation displacement connector if needed.





JST ZH Connector Specifications



  • Current rating: 1.0 A AC/DC (AWG #26)
  • Voltage rating: 50 V AC/DC
  • Temperature range: -25℃ to +85°C (including temperature rise in applying electrical current)
  • Contact resistance: initial value/ 20 mΩ max. After environmental tests/ 30 mΩ. max
  • Insulation resistance: 500 MΩ min.
  • Withstanding voltage: 500 VAC/minute
  • Applicable wire: AWG #32 to #26
  • Applicable PC board thickness: 0.6 to 1.2 mm, 1.6 mm





JST ZH Connector Part Number



No. of circuits Model No.
2 ZHR-2
3 ZHR-3
4 ZHR-4
5 ZHR-5
6 ZHR-6
7 ZHR-7
8 ZHR-8
9 ZHR-9
10 ZHR-10
11 ZHR-11
12 ZHR-12
13 ZHR-13





JST ZH Connector Custom Wire Harness

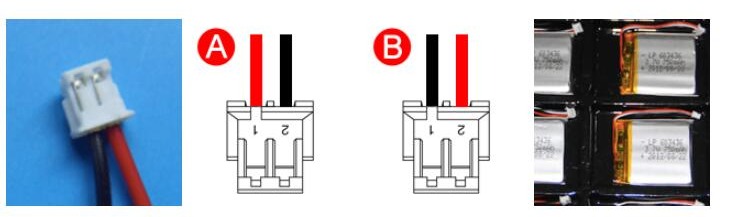

Battery Connector JST ZHR-2 Wiring Harness

It's also a popular battery connector with a 1.5 mm pitch.



  • Manufacturer: Hooha Harness
  • Part Number: ZHR-2
  • Application: Disconnectable crimp-style connectors
  • Circuits(max): 2
  • Pitch: 1.5mm(0 098")
  • Crimp Terminal: SZH-002T-P0.5, SZH-003T-P0.5
  • Mating wires: UL1571 26128130132/AWG
  • Mating Parts: B2B-ZR, S2B-ZR, B2B-ZR-3.4, S2B-ZR-3.4



ZHR-2 Wire harness

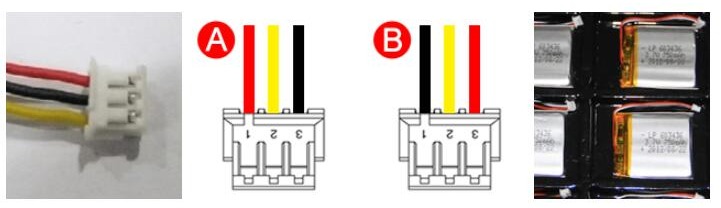

Battery Connector JST ZHR-3 Wiring Harness

It's also a popular battery connector with a 1.5mm pitch.



  • Manufacturer: Hooha Harness
  • Part Number:  ZHR-3
  • Application: Disconnectable crimp-style connectors
  • Circuits(max): 3
  • Pitch: 1.5mm (0.098”)
  • Crimp Terminal: SZH-002T-P0.5, SZH-003T-P0.5
  • Mating wires: UL1571 26/28130132/AWG
  • Mating Parts: B3B-ZR, S3B-ZR, B3B-ZR-3.4, S3B-ZR-3.4



ZHR-3 Wire harness

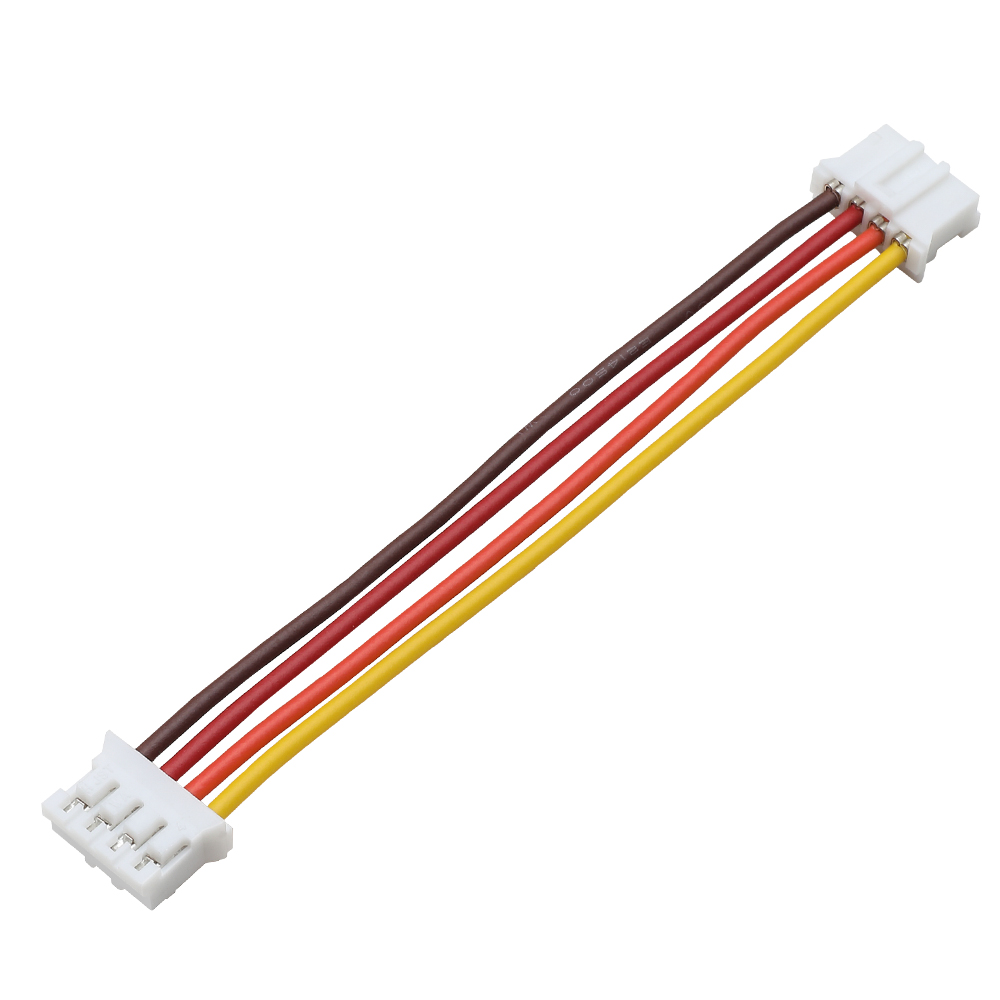

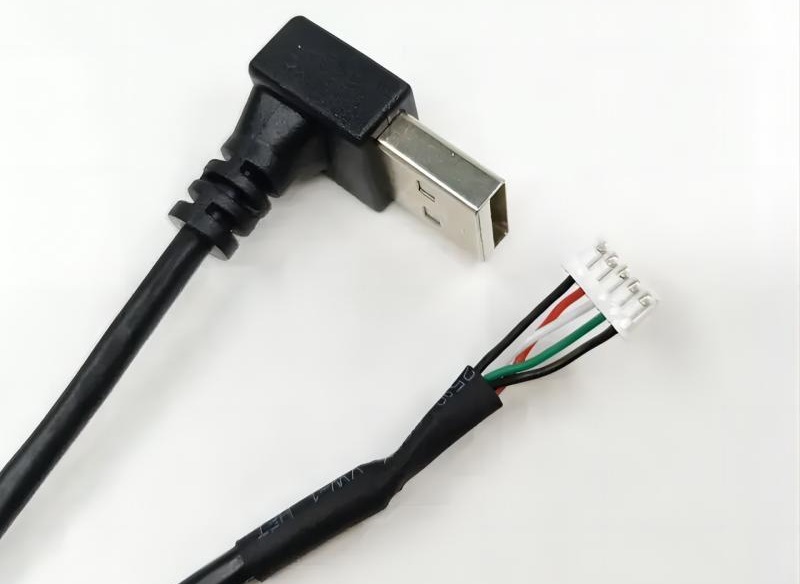

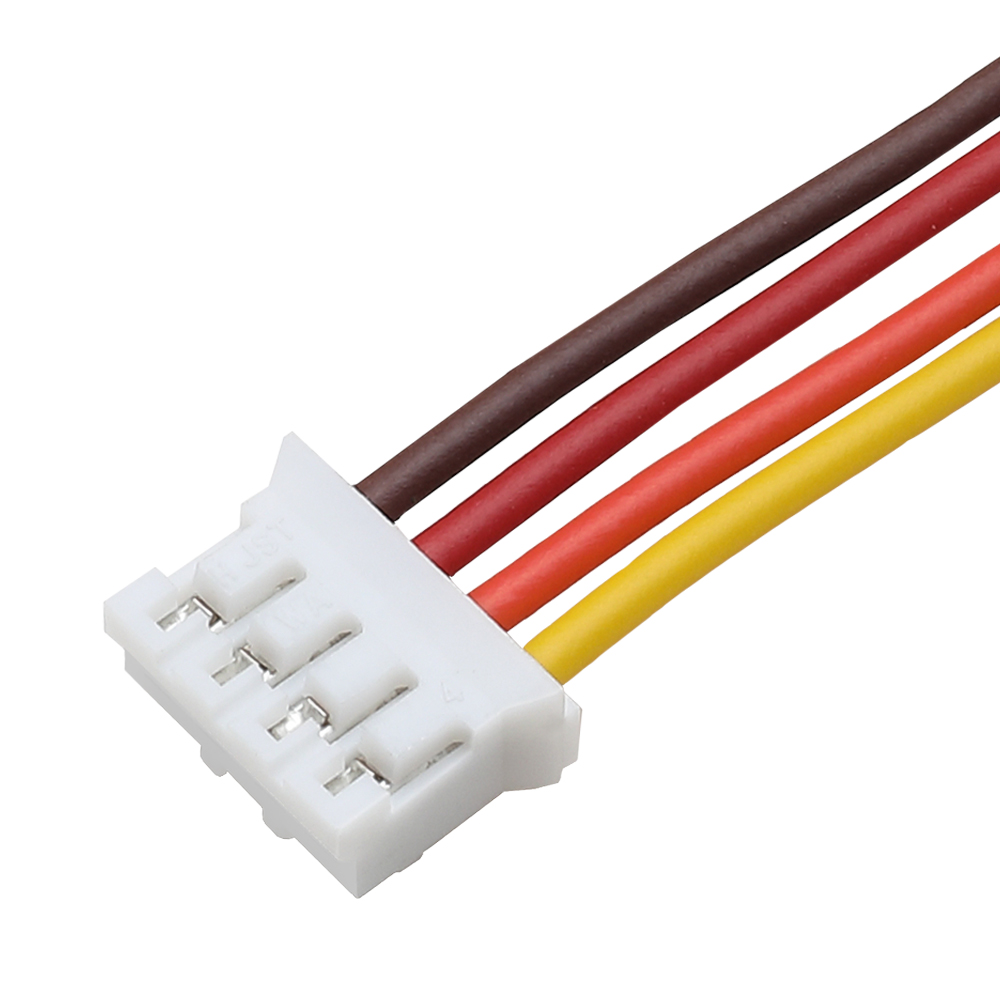

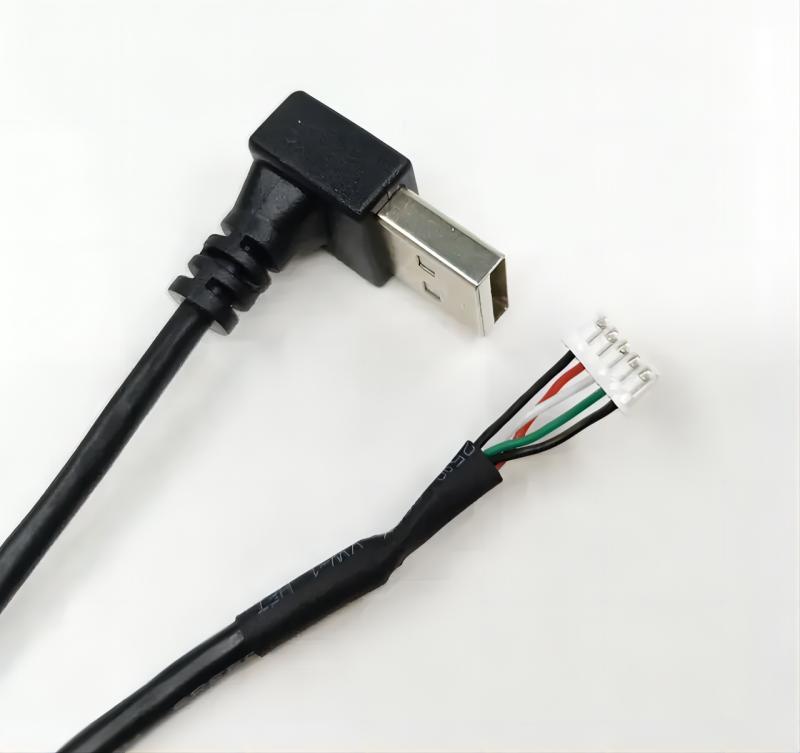

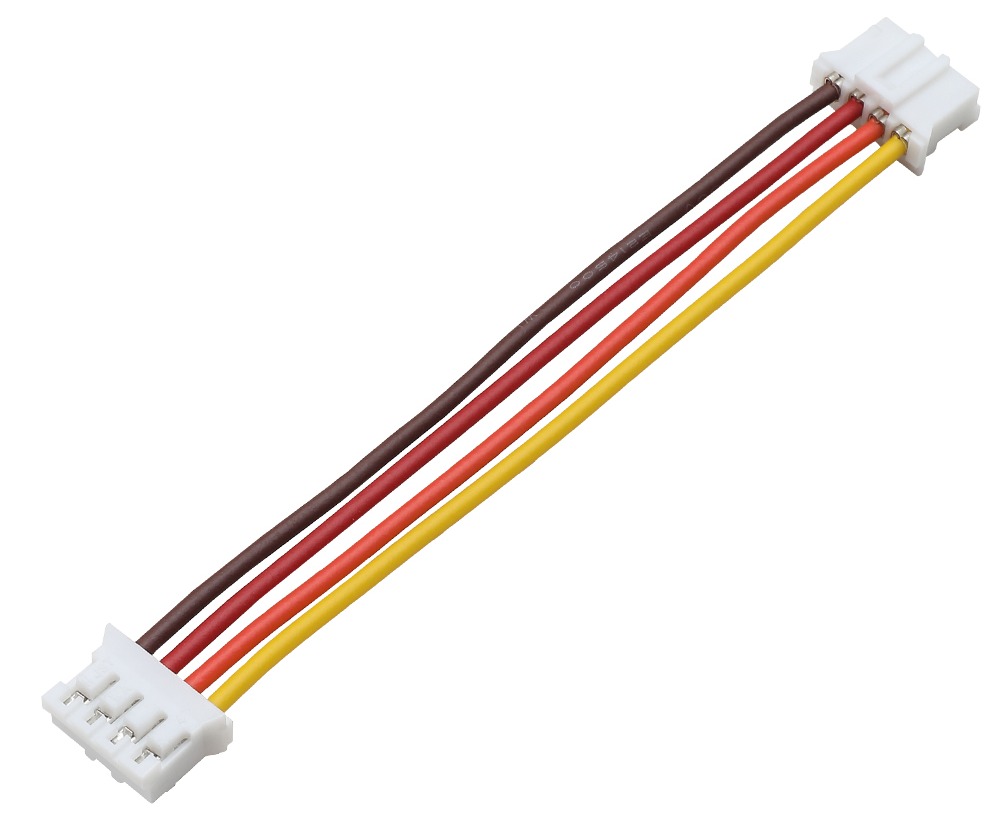

ZHR-4 wire harness assembly ▼  ZHR-5 to USB A type male right-angle cable ▼
ZHR-4 USB to ZHR-5

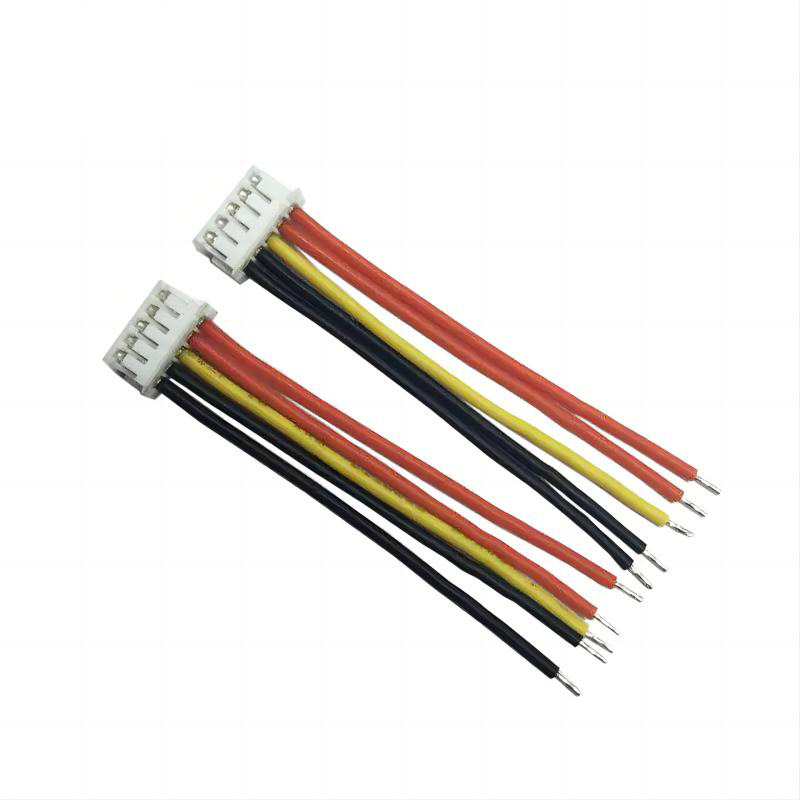

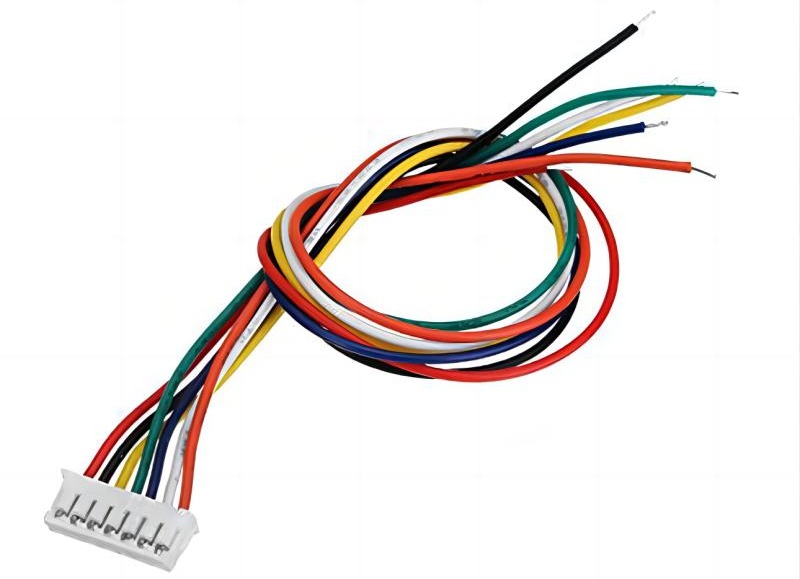

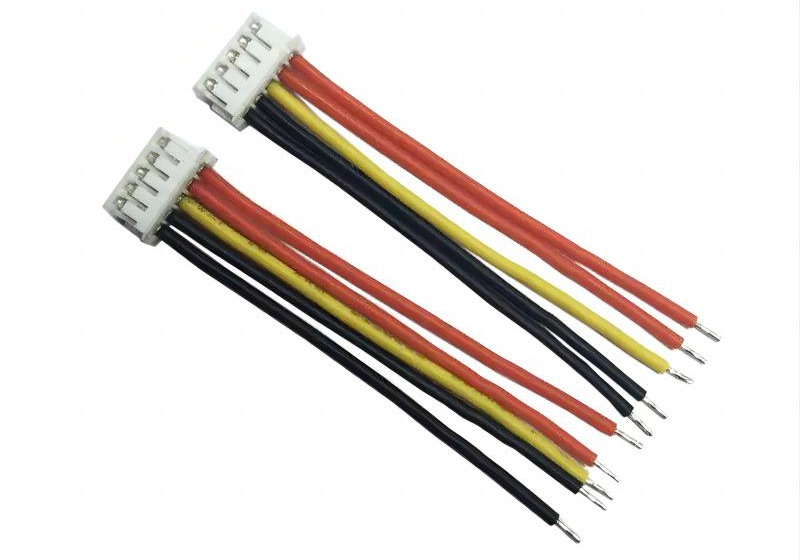

ZHR-5 custom wire harness ▼ ZHR-7 7pin wire harness assembly ▼
ZHR-5 ZHR-7

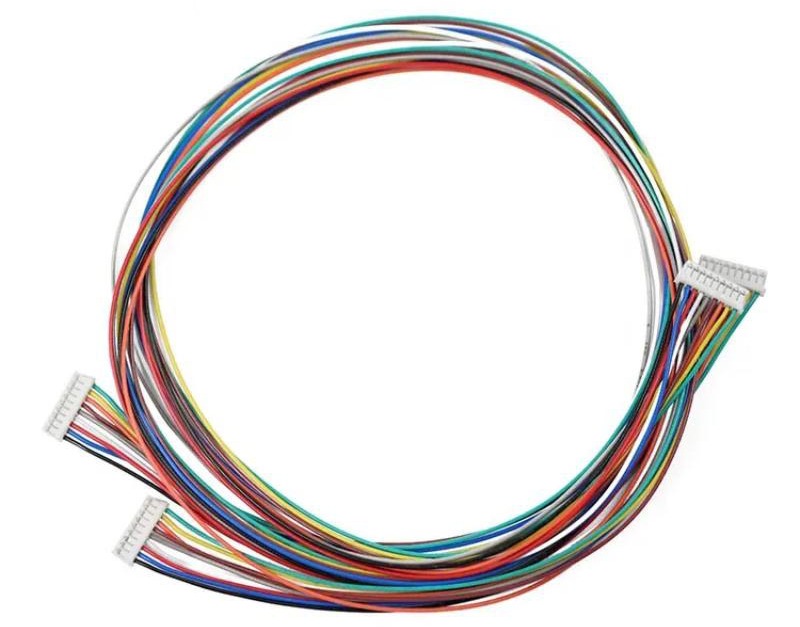

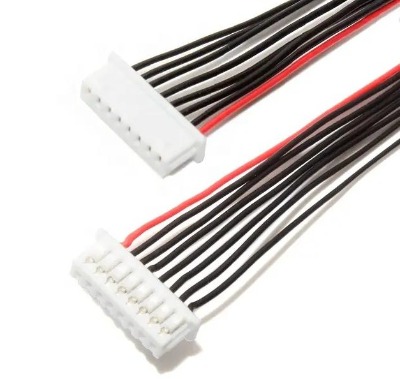

ZHR-8 8pin connector wire harness  ZHR-9 9pin connector wire harness ▼
ZHR-8 wire harness ZHR-9





Example wire harness price for reference

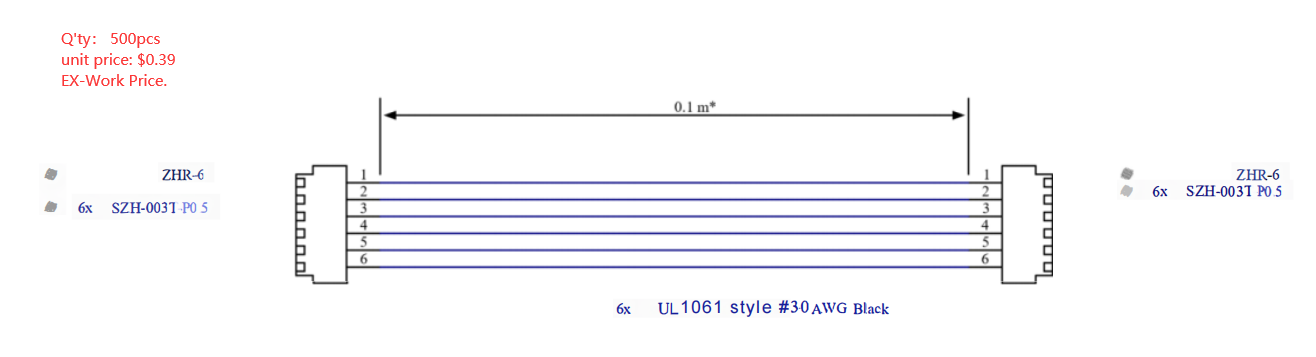

ZHR-6 wire harness

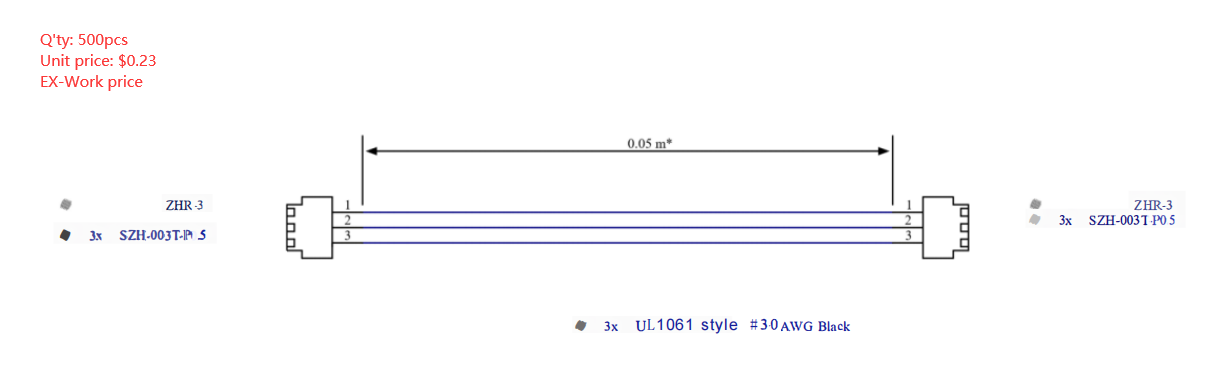

ZHR-3 wire harness

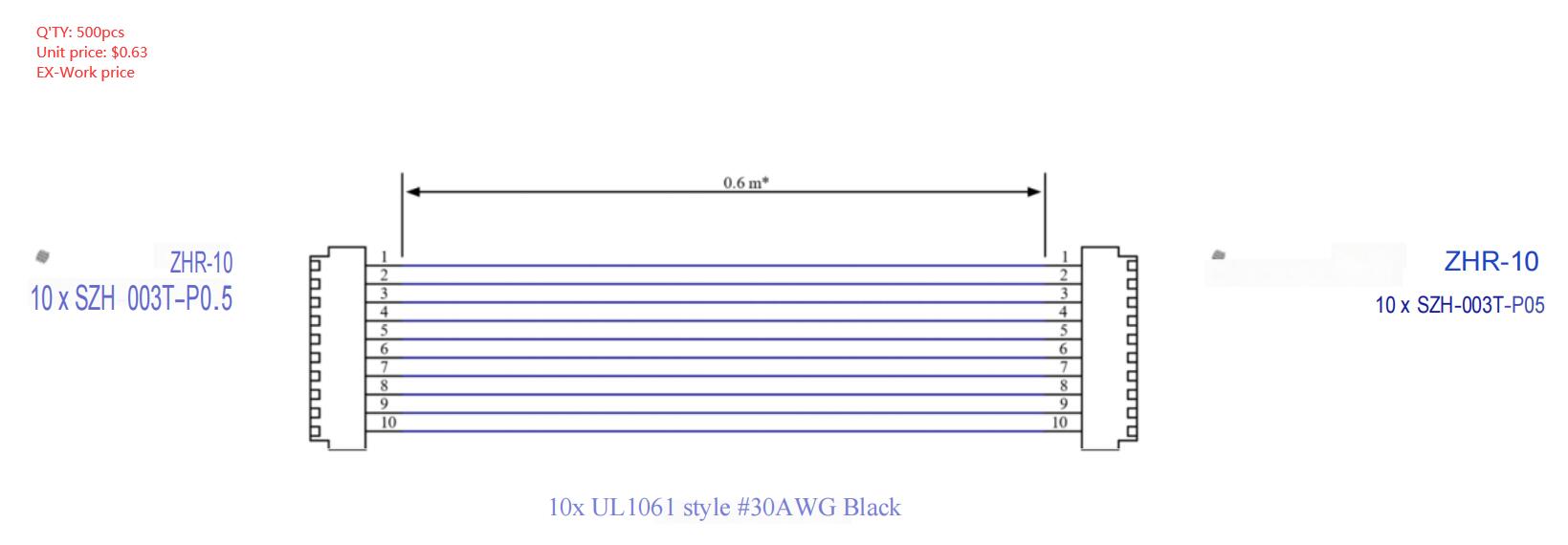

ZHR-10 wire harness





How to customize your wire harness?



Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
