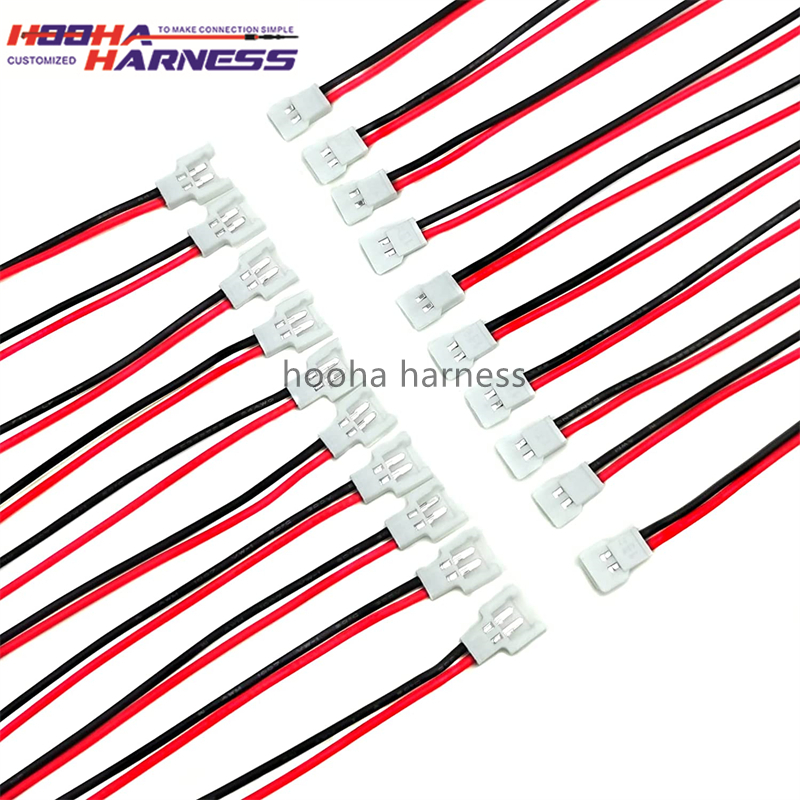

molex 51005 51006 connector wire harness assembly service
Molex 51005 series connector wire harness assembly service is provided with high-quality connector materials made of PBTP, UL94V-0 grade. These connectors are available in vibrant colors such as red, black, and white. You have the flexibility to choose from a range of options including 2-pin, 3-pin, 4-pin, and 5-pin connectors. Rest assured that these connectors are compliant with RoHS regulations.
Moreover, these connectors perfectly mate with the reliable 51006 series connector for seamless integration. To ensure optimal performance and compatibility, they fit flawlessly with the top-notch 50013 terminals.
Our dedicated team offers exceptional expertise in assembling wire harnesses using Molex's renowned technology. With our meticulous attention to detail and commitment to quality assurance standards, we guarantee a superior end product. By choosing our services for your wire harness assembly needs utilizing Molex's esteemed products like the 51005 series connector, you can expect nothing less than an enhanced connectivity solution that meets your specific requirements.
51005 series connector introduction

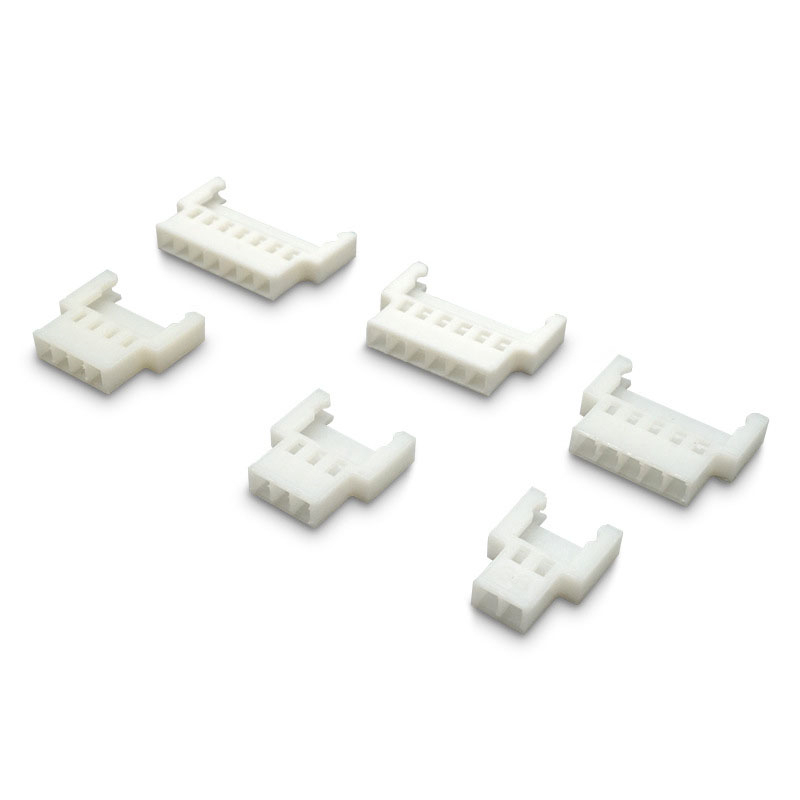

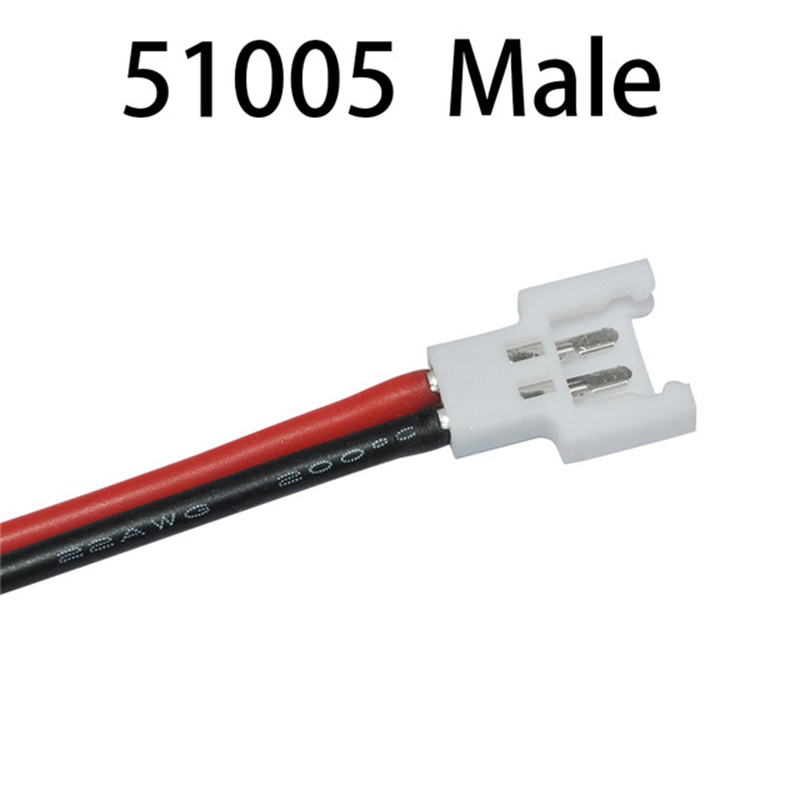

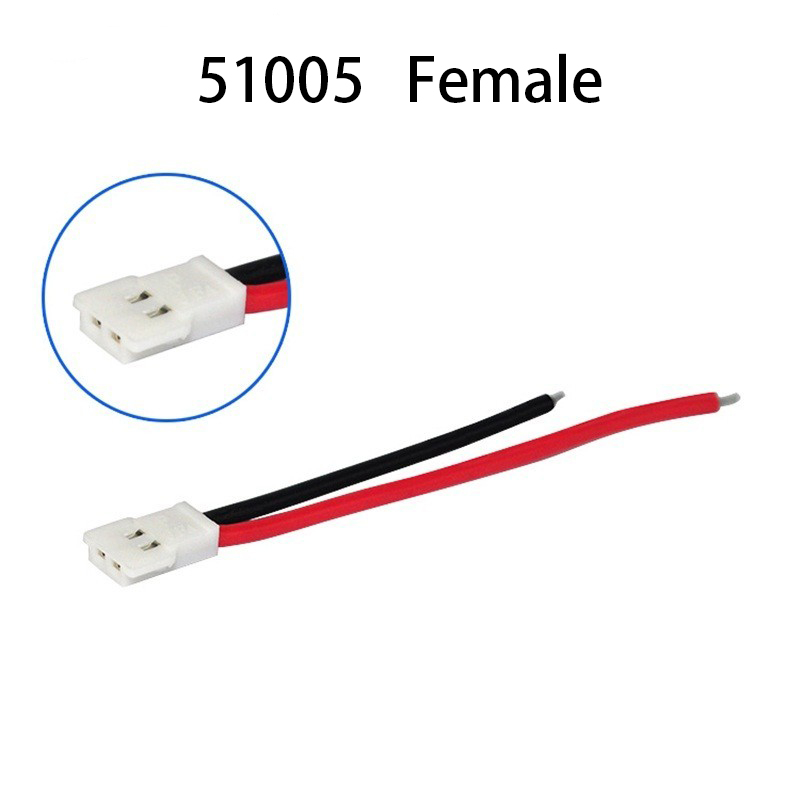

The Molex 51005 series connector is a type of wire-to-board connector commonly used in electronic and electrical applications. Molex, a renowned manufacturer of connectors and interconnect solutions developed the 51005 series as part of their Micro-Fit family of connectors. These connectors are designed to provide reliable and secure connections in compact and space-constrained environments.
Here are some key features and characteristics of the Molex 51005 series connector:
1. Compact Size
The 51005 series connector has a compact form factor, making it ideal for applications where space is limited. It is often used in small electronic devices and consumer electronics.
2. Wire-to-Board Connection
This connector is specifically designed for wire-to-board connections, allowing for easy and secure termination of wires onto a circuit board. It enables the transfer of electrical signals and power between the board and external wires.
3. Crimp Terminal System
The 51005 series connector utilizes a crimp terminal system for wire termination. The crimp terminals provide a reliable and gas-tight connection, ensuring excellent electrical conductivity and minimizing the risk of accidental disconnection. it fits with 50013 terminals, and matches 24-28AWG wires, with its insulation out diameter 0.92-1.15mm.
4. Polarized Design
The connectors feature a polarized design, meaning they have a specific orientation that allows mating only in one correct position. This ensures proper alignment and prevents misconnections, reducing the chances of signal loss or damage to the connectors.
5. Current Rating and Voltage Range
The 51005 series connectors typically have a current rating of 3.0 Amperes (A) per circuit and are commonly used with low-power applications. They can handle voltage ranges up to 250 volts (V).
6. Multiple Circuits
These connectors are available in various configurations, supporting multiple circuits. The most common versions include 2, 3, 4, and 6 circuits, but other circuit options may also be available.
7. Locking Mechanism
The connectors are equipped with a locking mechanism that ensures a secure and reliable connection. The lock helps to prevent accidental disconnections caused by vibration or pulling on the wires.
The Molex 51005 series connector is widely used in industries such as consumer electronics, automotive, telecommunications, and industrial equipment. Its compact size, secure connection, and versatility make it a popular choice for applications that require reliable wire-to-board connections in space-constrained environments.
51006 series connector introduction
The Molex 51006 series connector is another member of the Micro-Fit family of connectors developed by Molex, a renowned manufacturer of interconnect solutions. The 51006 series is specifically designed for wire-to-wire connections, offering reliable and secure electrical connections in various electronic and electrical applications.
Here are some key features and characteristics of the Molex 51006 series connector:
1. Wire-to-Wire Connection
The 51006 series connector enables easy and secure wire-to-wire connections. It allows for the termination of wires without the need for a circuit board, making it suitable for applications where direct wire connections are required.
2. Compact Size
Similar to other Micro-Fit connectors, the 51006 series has a compact form factor, making it ideal for applications with space limitations. The small size and low-profile design contribute to efficient use of space and enable high-density wiring configurations.
3. Crimp Terminal System
This series utilizes a crimp terminal system, ensuring reliable and gas-tight connections between wires. The crimp terminals provide excellent electrical conductivity and secure wire retention, minimizing the risk of accidental disconnections.
4. Polarized Design
The connectors feature a polarized design with a specific orientation for correct mating. The polarization helps ensure proper alignment and prevents misconnections, providing optimal signal integrity and minimizing the risk of damage to the connectors.
5. Current Rating and Voltage Range
The 51006 series connectors typically have a current rating of 5.0 Amperes (A) per circuit, making them suitable for applications requiring higher power transmission. They can handle voltage ranges up to 250 volts (V).
6. Multiple Circuits
These connectors are available in various configurations, supporting multiple circuits. The most common versions include 2, 3, 4, 5, and 6 circuits, but other circuit options may also be available.
7. Locking Mechanism
The connectors are equipped with a locking mechanism that ensures a secure and reliable connection. The lock helps prevent accidental disconnections caused by vibration, movement, or pulling on the wires.
The Molex 51006 series connector finds applications in diverse industries, including automotive, consumer electronics, industrial equipment, and more. Its compact size, secure wire-to-wire connection, and higher current rating make it suitable for various power and signal transmission requirements. Whether it's in automotive wiring harnesses, home appliances, or industrial machinery, the 51006 series connector provides a reliable solution for wire-to-wire connections.

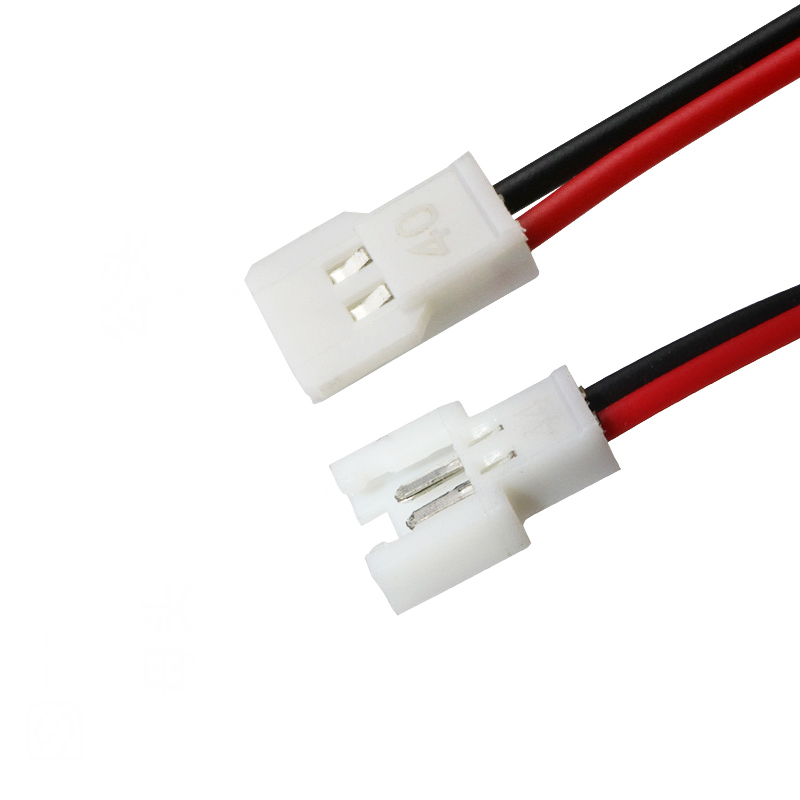

Relationship between Molex 51005 and 51006 series connectors
Despite 51005 mates with 51006 connectors, they still have much difference. Molex 51005 and 51006 connectors are part of the same Micro-Fit family of connectors developed by Molex. While they have similar names and share some characteristics, they are designed for different types of connections and have some key differences. Here is the relationship between the two connectors:
1. Connection Type
The primary difference between the two connectors is the type of connection they are designed for. The Molex 51005 series connector is designed for wire-to-board connections, specifically for terminating wires onto a circuit board. In contrast, the Molex 51006 series connector is designed for wire-to-wire connections, allowing for direct connections between two wires without the need for a circuit board.
2. Size and Configuration
Both the 51005 and 51006 series connectors have a compact form factor, allowing for space-efficient installations. However, they may have different physical dimensions and configurations to accommodate their respective connection types. The 51005 series connector is optimized for board-mounted applications, while the 51006 series connector is designed to facilitate direct wire-to-wire connections.
3. Current Rating
Another notable difference between the two connectors is their current rating. The Molex 51005 series connector typically has a current rating of 3.0 Amperes (A) per circuit, suitable for low-power applications. On the other hand, the Molex 51006 series connector has a higher current rating of 5.0 Amperes (A) per circuit, making it more suitable for applications that require higher power transmission.
4. Circuit Configuration
Both the 51005 and 51006 series connectors offer multiple circuit configurations to accommodate different application requirements. The available circuit options may include 2, 3, 4, 5, or 6 circuits, providing flexibility in terms of the number of connections that can be made.
Hooha Harness Introduction:
With over 20 years of experience in customizing wire harnesses, Hooha Harness is a leading manufacturer based in China. We offer OEM and ODM services to meet the unique needs of our clients. Our commitment to quality is evident through our adherence to IPC/WHMA-A-620 standards. Additionally, we have obtained IATF16949, ISO9001, and UL certificates as a testament to our dedication to providing high-quality products. We specialize in automotive wire harnesses, data cables, and power cables. Our team of experts can work with you to create customized solutions that fit your specific requirements. Contact us today for a free quote by sending us your wire harness drawing. Let Hooha Harness be your trusted partner for all your wiring needs!
How to custom your own wire harness?
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
