Molex 511110 series connector features:

The Molex 51110 series connector is a widely used solution that boasts an impressive array of features. This connector has been designed to meet the demands of modern technology, providing reliable and efficient connectivity for a wide range of applications. One of the key features of this connector is its exceptional durability. Built to withstand even the harshest environments, it offers unparalleled resistance to shock, vibration, and extreme temperatures. This makes it ideal for use in industrial settings where reliability is paramount. In addition to its rugged construction, the Molex 51110 series connector also offers outstanding performance. With high-speed data transfer capabilities and low signal loss, it ensures fast and accurate communication between devices. Its compact design also allows for easy installation in tight spaces. But perhaps most importantly, this connector provides peace of mind for engineers and technicians alike. With its proven track record of reliability and quality craftsmanship, users can trust that their equipment will remain connected without interruption or failure.

There are 5 distinct types that you should be aware of. These include the xx50, xx51, xx52, xx56 and xx60 varieties. Now, you may be wondering what exactly the "xx" refers to in these names. Well, it actually denotes the circuit size of each connector. Typically speaking, these circuit sizes will feature even numbers such as 02 or 04. This number tells you how many positions a given connector has available for use. So if you're looking for a specific type of connector with a certain number of positions available, knowing the circuit size can help narrow down your options considerably.

1. xx56 type

The housing of this product is made from glass-filled polyester, which ensures its durability and safety. It has been tested and certified with a UL94V-0 rating, guaranteeing its flame-retardant properties. The sleek black color adds a touch of elegance to the overall design. This housing is specifically designed to mate perfectly with the 50384-8xxx series terminals, ensuring a secure and reliable connection. The terminals are compatible with various wire sizes, accommodating wires ranging from 24AWG to 30AWG. In terms of wire compatibility, this housing can accommodate wires with an outer diameter of up to 1.4mm maximum. This allows for flexibility in choosing the appropriate wire size for your specific application needs.

2. xx60 type

The housing materials also used in this product are of the highest quality, made from glass-filled polyester that is UL-rated 94V-0. This ensures that the product is not only durable and long-lasting but also safe to use. The sleek black color of the housing adds a touch of sophistication to its overall design. The housing has been designed to mate with 50394-8xxx series terminals, ensuring a secure and reliable connection every time. Additionally, the wire gauge used in this product is identical to xx56 type wires, ranging from 24AWG to 30AWG. The maximum wire diameter supported by this product is an impressive 1.40mm, making it suitable for even heavy-duty applications where thicker wires may be required.

3. xx50 without center polarization key and side latches

4. xx51 type with center polarization key and side latches

5. Part of xx51 type and xx52 type are with a center polarization key, but no side latches

The xx50 type is a remarkable piece of equipment that boasts exceptional functionality and durability. It is designed to operate without the need for a center polarization key or side latches, making it an ideal choice for those who require maximum efficiency in their work.

On the other hand, the xx51 type comes equipped with both a center polarization key and side latches, providing users with added security and ease of use. This makes it perfect for applications where safety and convenience are top priorities.

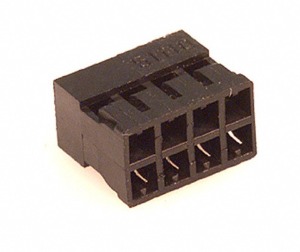

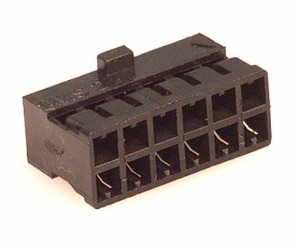

Interestingly enough, there are also parts available for both the xx51 type and xx52 type that feature a center polarization key but no side latches. These components offer users even more flexibility when it comes to customizing their equipment to meet specific needs. All these 3 types are the same size as the below picture shows.

Then how to choose the best part number that I need?

Firstly, take into account how many positions you require - this will help narrow down your options and ensure that you choose a part that is suitable for your specific application.

Next, think about whether or not you need center polarization key and side latches. These features can be incredibly useful in certain situations, so it's important to determine whether or not they are necessary for your particular use case.

Finally, make sure to confirm the housing size before making any final decisions. This will ensure that the part fits properly and functions as intended once installed.

By taking these steps into consideration when choosing a part number, you can rest assured knowing that you have made an informed decision based on your unique requirements.

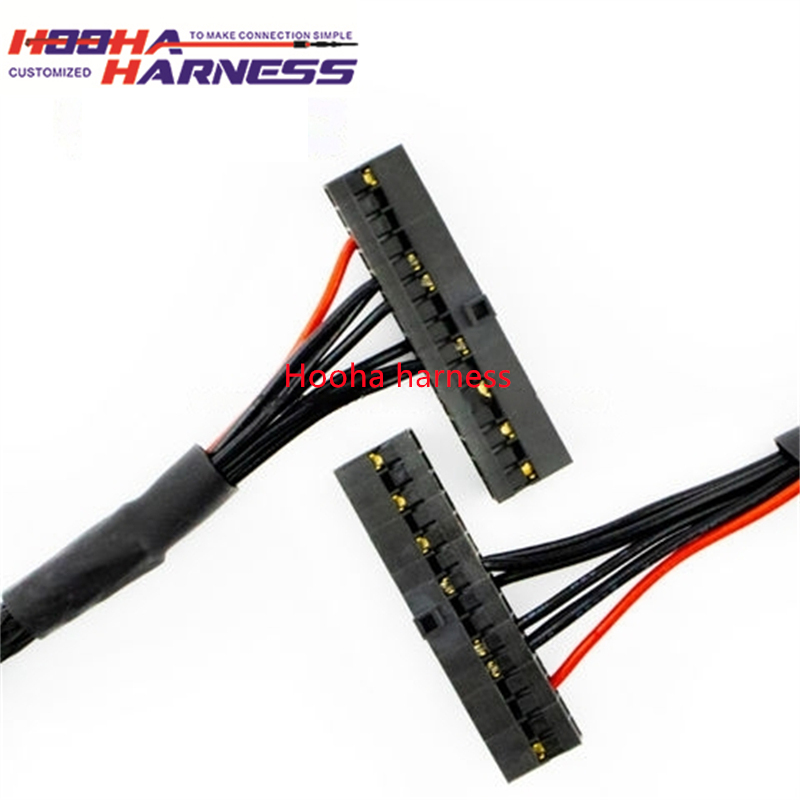

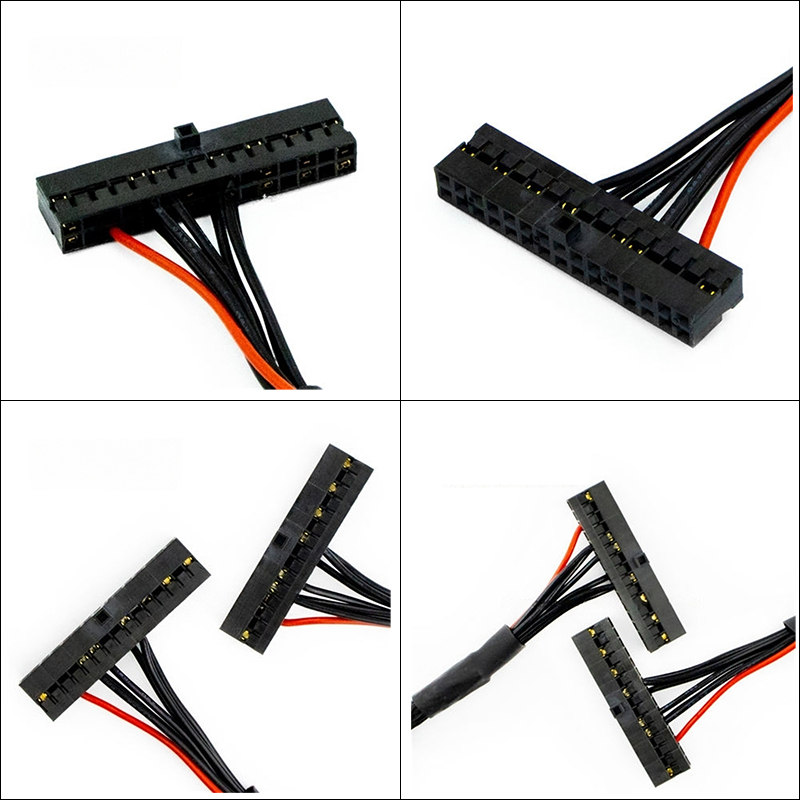

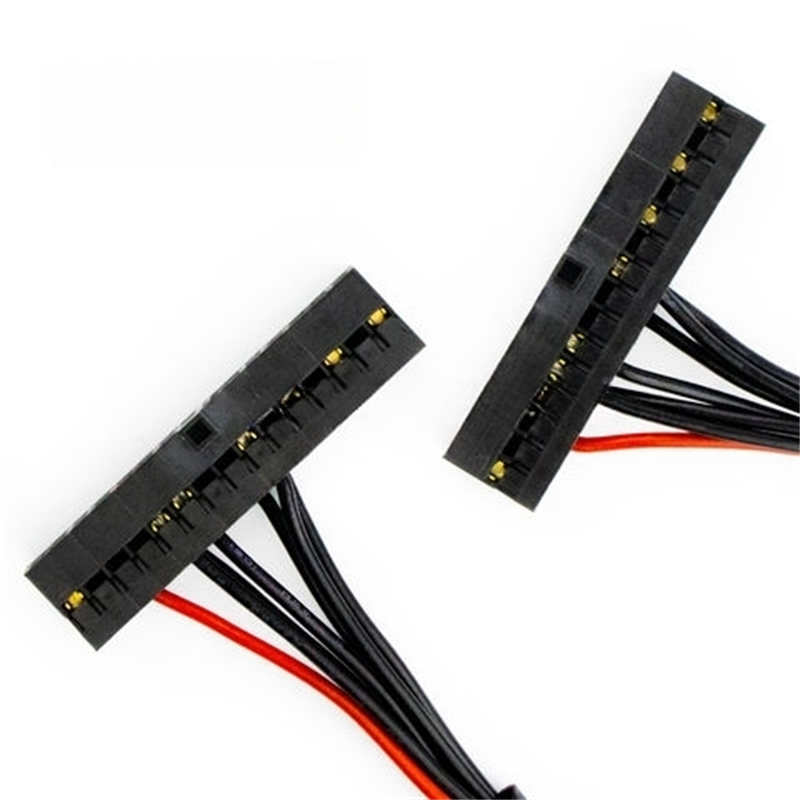

Molex 51110 series wire harness application
