molex 4.2mm pitch 5557 series wire and cable harness assembly
The Molex 4.2mm pitch 5557 series wire and cable harness assembly is a highly reliable and efficient solution for connecting various electronic components in a wide range of applications. With its precise design and high-quality materials, this assembly ensures secure connections and optimal performance.
Featuring a 4.2mm pitch, the Molex 5557 series wire and cable harness assembly offers easy installation and maintenance. The connectors are designed to fit seamlessly with compatible devices, providing a seamless integration process.
wire and cable harness assembly is widely used in industries such as automotive, medical, telecommunications, consumer electronics, and more. It can be found in vehicles for powering electrical systems or transmitting data signals between different components. In aerospace applications, it plays a crucial role in ensuring reliable communication between avionics equipment.
The Molex 5557 series wire and cable harness assembly also provide excellent protection against environmental factors such as moisture, dust, vibration, and temperature fluctuations. This makes it suitable for use in harsh operating conditions where reliability is paramount.
Furthermore, this assembly offers versatility by accommodating various wire sizes ranging from small gauge wires to larger ones. It allows for customization based on specific requirements of different projects or applications.
Connector Introduction

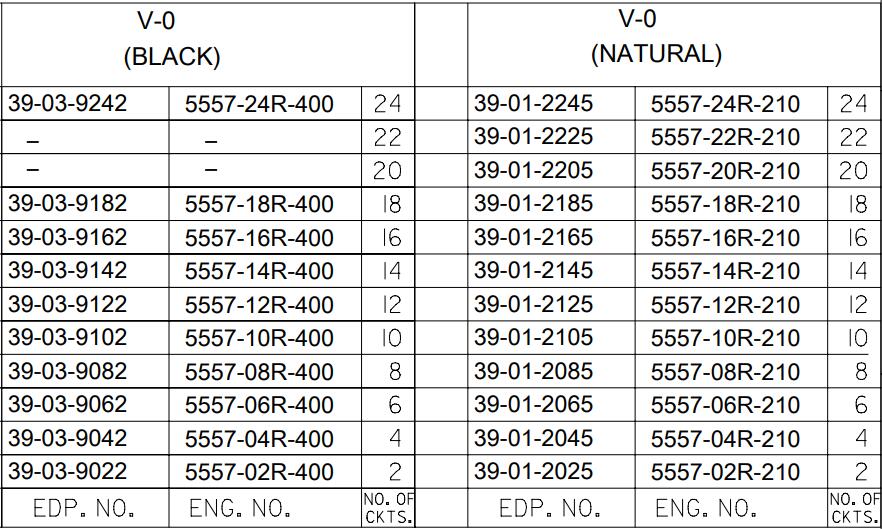

The Molex 5557 series connector is a type of electrical connector commonly used in various electronic devices and applications. Molex, a renowned manufacturer of electronic connectors, developed this series to meet the demanding requirements of the electronics industry. These connectors are known for their reliability, versatility, and ease of use.
Key features of the Molex 5557 series connector
1. Contact Configuration: The 5557 series connector typically consists of multiple contacts housed within a plastic or metal body. The contacts are designed to establish electrical connections between two mating components.

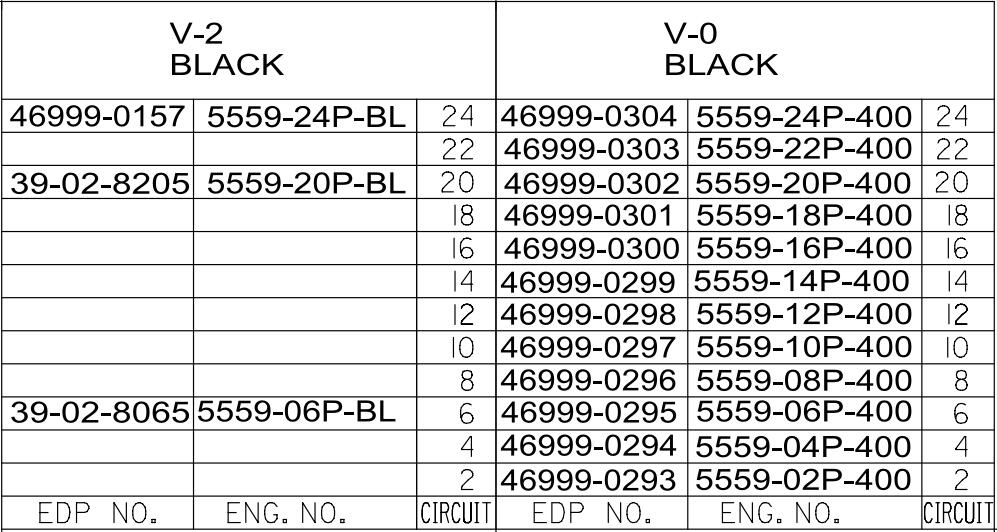

2. Wire-to-Wire Connectivity: The 5557 series connectors are available for wire-to-wire applications, mate with the 5559 series connectors.
3. Wire-to-Board Connectivity: The 5557 series connectors are also used for wire-to-board applications, enabling cables to be connected to printed circuit boards (PCBs), mate with headers #5566, and #5569.
4. Housing Styles: The connectors come in various housing styles, such as straight and right-angle configurations, providing flexibility in different layout designs.
5. Locking Mechanism: Many connectors in this series feature a locking mechanism to ensure a secure connection, reducing the risk of accidental disconnections.
6. Current and Voltage Ratings: The connectors are designed to handle different current and voltage levels, depending on the specific model and application requirements.
7. Durability and Reliability: Molex is known for producing high-quality connectors, and the 5557 series is no exception. They are built to withstand harsh environmental conditions and offer long-lasting performance.
8. Applications: The Molex 5557 series connectors are widely used in various industries, including consumer electronics, telecommunications, automotive, industrial automation, and more.
Molex 5557 series connector wire harness assembly products

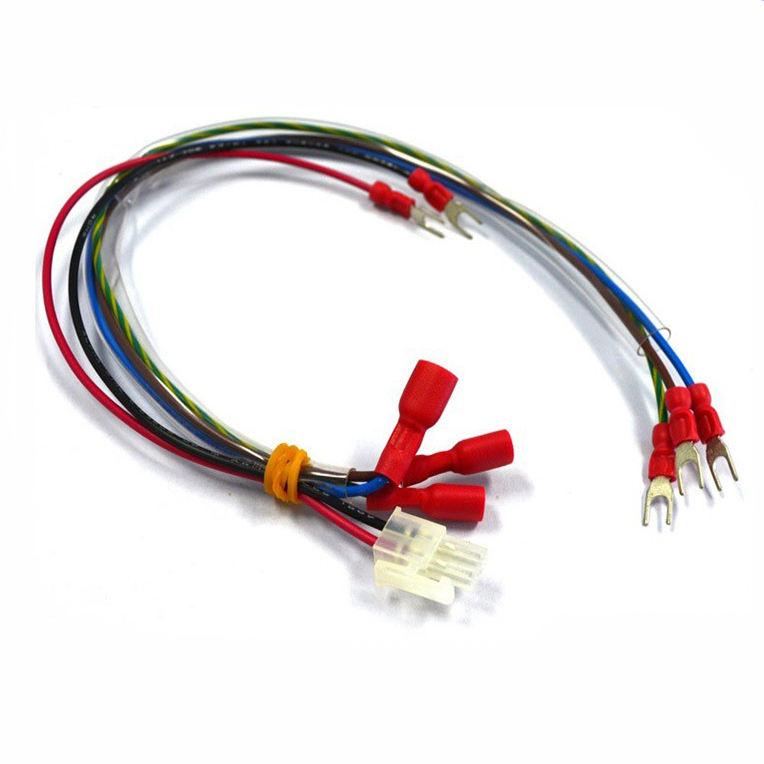

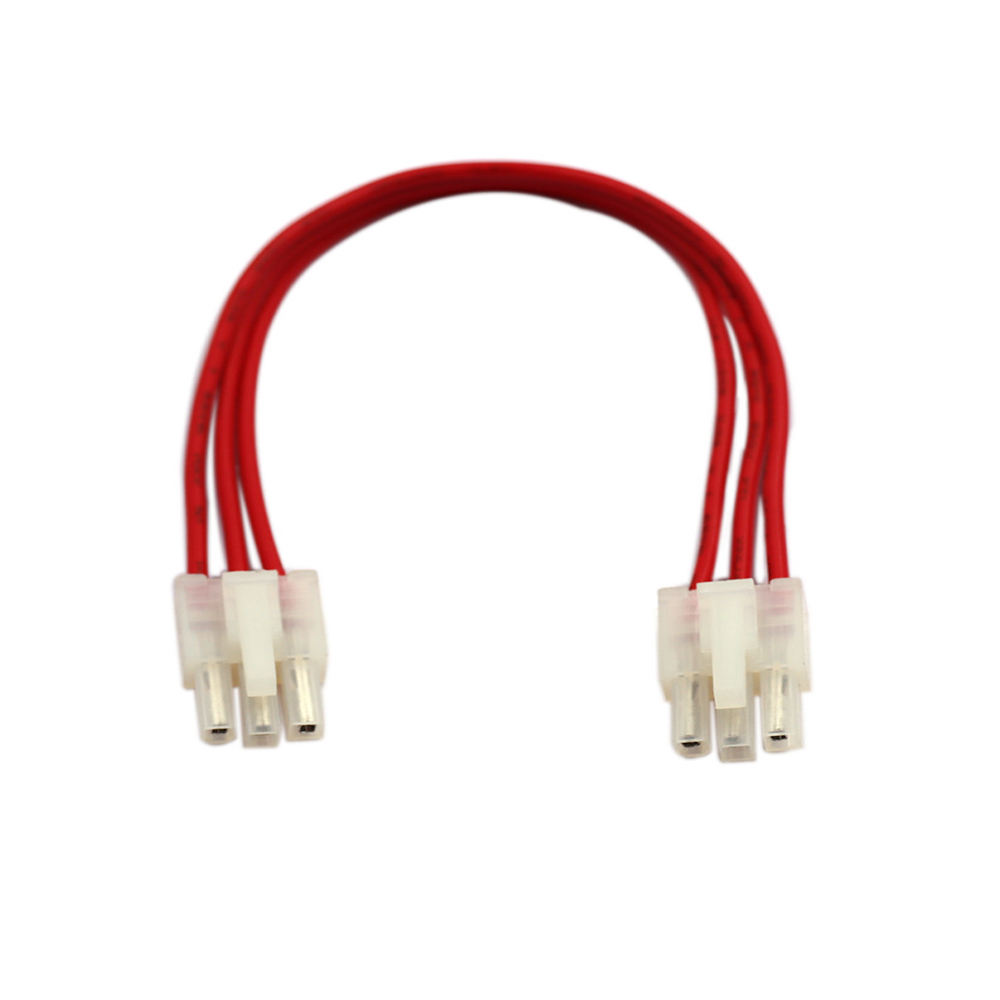

| 2pin wire assembly ▼ | 3pin wire assembly ▼ |
 |
 |

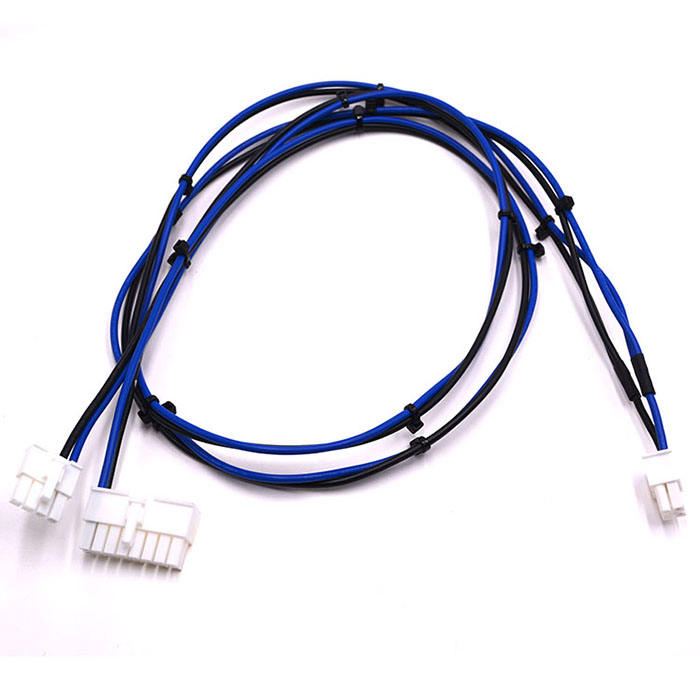

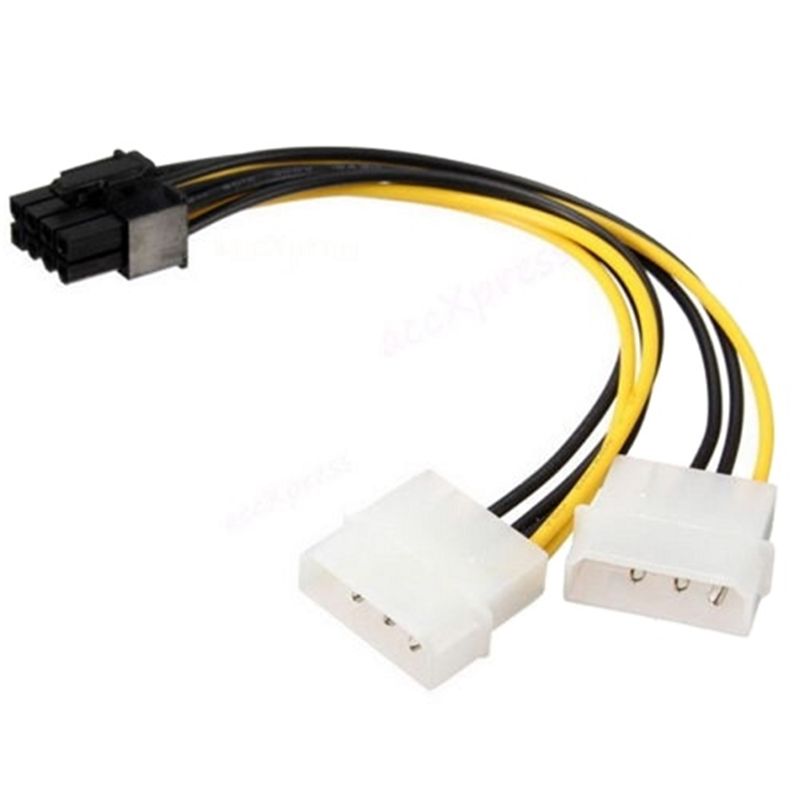

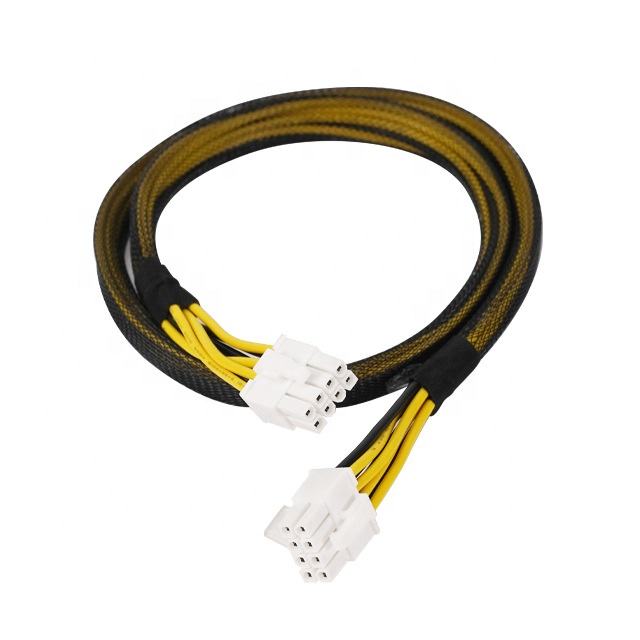

| 4pin + 16pin wire assembly ▼ | 8pin wire assembly ▼ |
 |
 |

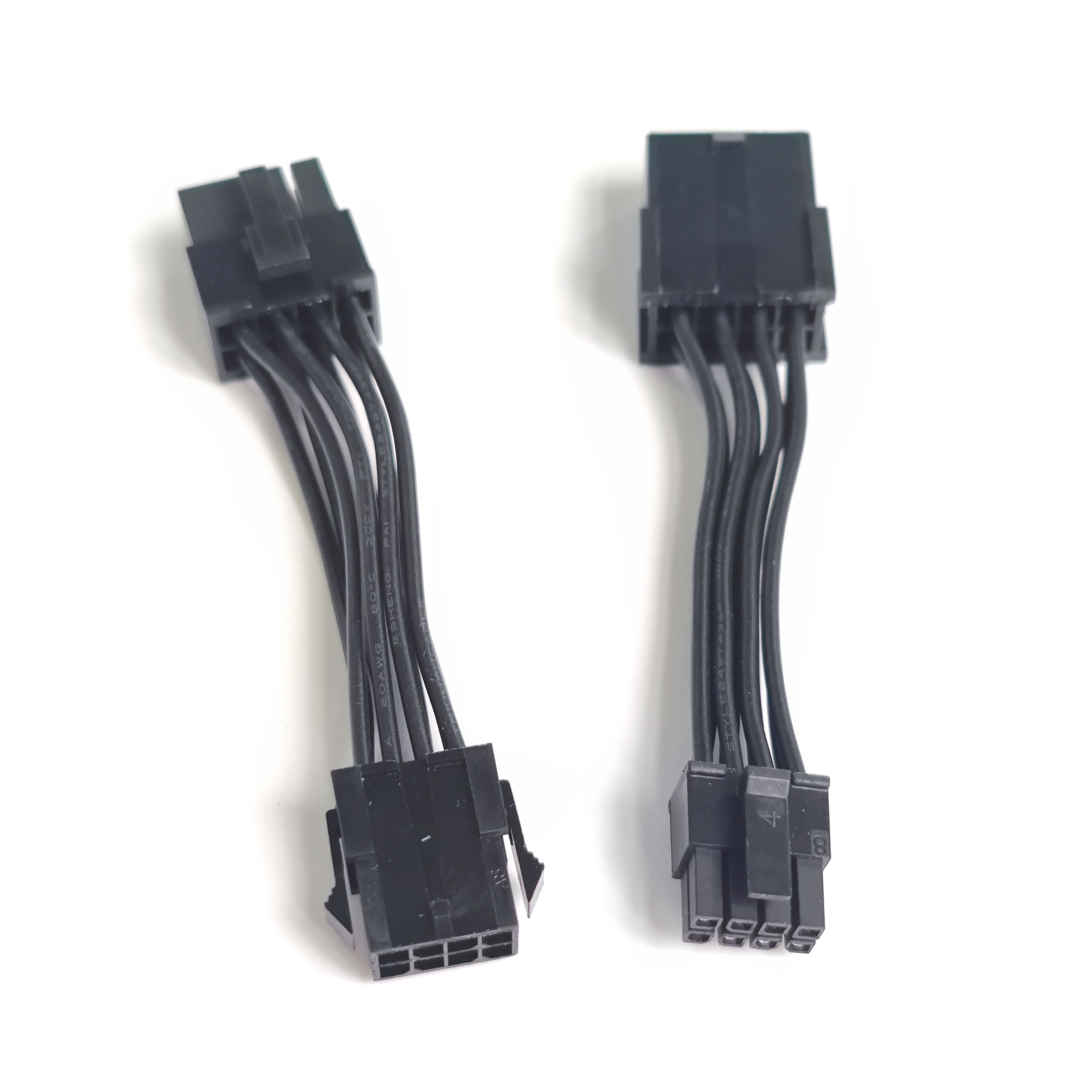

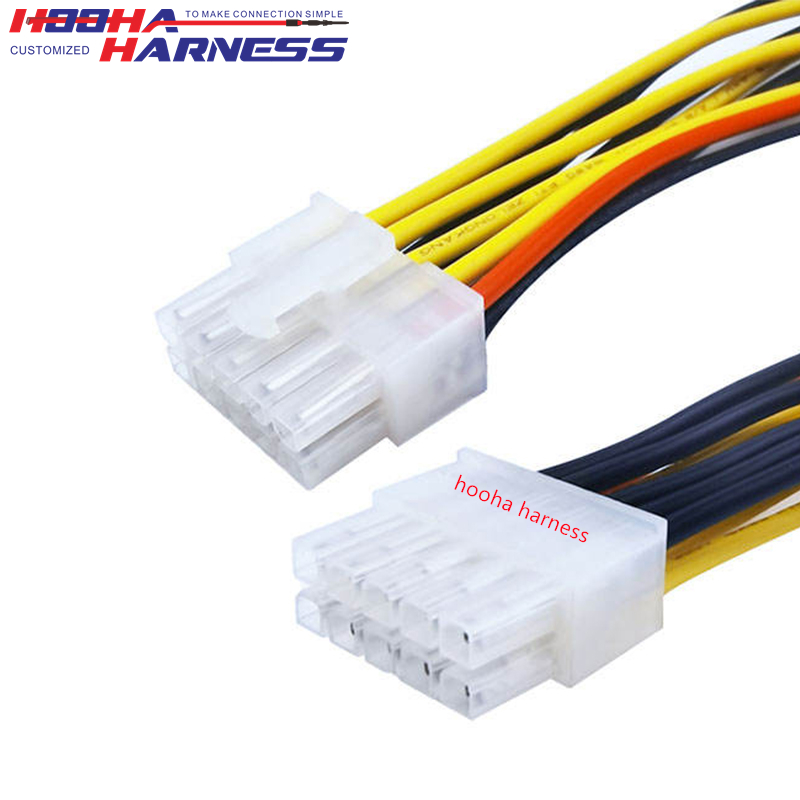

| 8pin wire assembly ▼ | 10pin wire assembly ▼ |
 |
 |

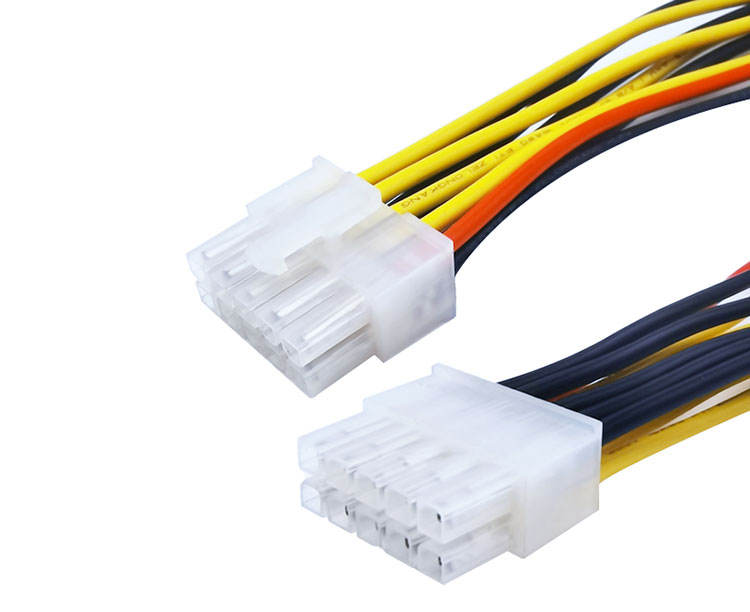

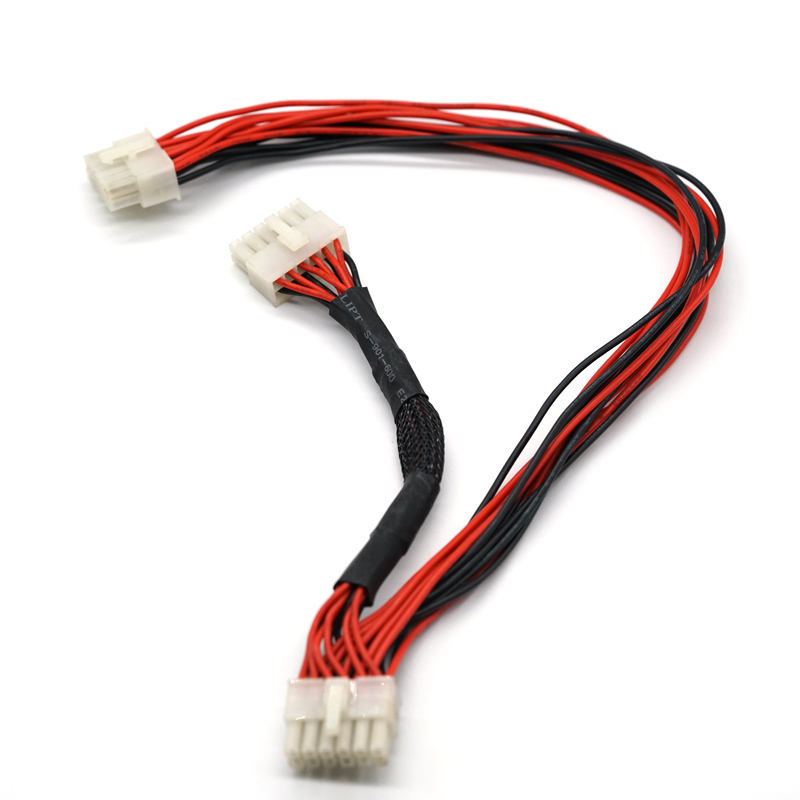

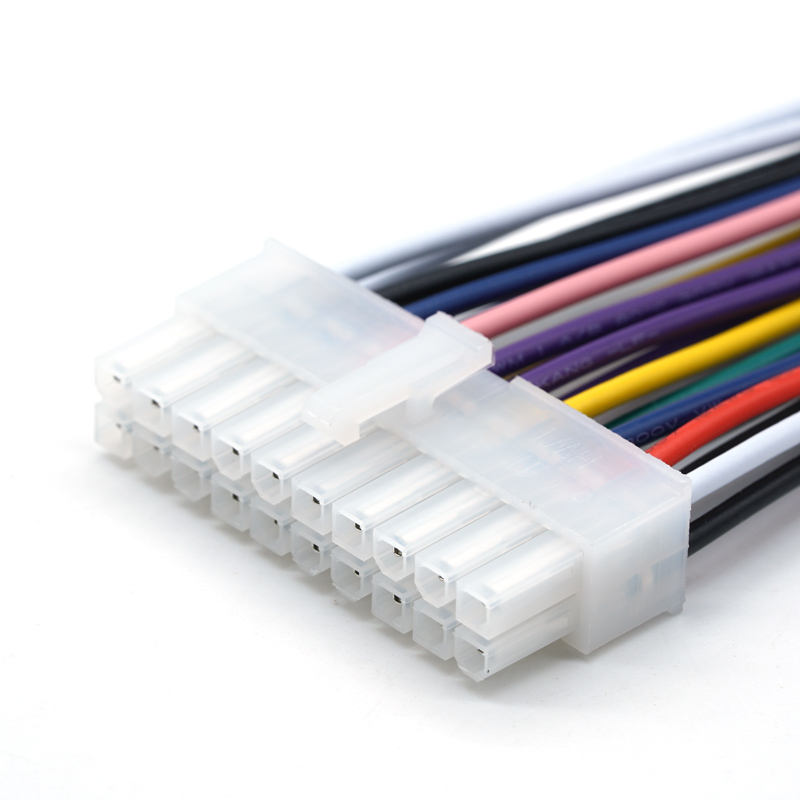

| 12pin wire assembly ▼ | 20pin wire assembly ▼ |
 |
 |
How to custom your own wire harness?
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
